Applications:
BX-5K series is based on Font library design,and is suitable for the controller frequently updated information of the application requirements.
Convenient for the user to secondary development.
Dedicated to the industrial field, intelligent bus stop and cluster system, etc.
Features:
♦Controller built-in font library, the user simply send character coding can display content, greatly reduce the data flow, reduce developing difficulty.
♦Support information dynamic refresh: there are five dynamic area, while the updated information, also can update alone.
♦Dynamic refresh interval≥0.5s
♦Flexible and rich display control, High performance price ratio, support firmware update online.
♦BX-5K series is not only support the transmitting method of font code format, and also support the transmitting method of graphic pixels format.
Technical parameters:

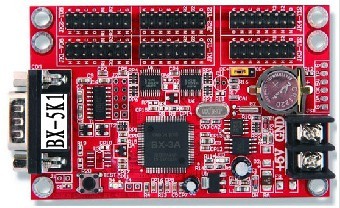

Product model BX-5K1
Product status Fifth generations of the latest mainstream product ,brought to the market on Dec, 2012,spot in stock
Control area Single color 48K 2048*16 1536*32 1024*48 768*64
Double color 24K 1536*16 768*32 512*48 384*64
Storage capacity 2MByte
Screen types All kinds of 1/16, 1/8, 1/4, 1/2 scan and static single color modules and double colors LED screen
Program quantity Support 128 programs,5 areas for each program
Area type Text/time/dynamic area
Program type Normal program/ Dynamic area
Font library 16 dot matrix/24 dot matrix/32 dot matrix
Communication mode RS232/RS485/GPRS/RF short-range wireless
Interface 2 groups T8 and 4 groups of T12
Sensors supported Not supported
Bright regulation 16 grades brightness, manual and auto-timing adjustment
Power on/off mode Auto-timing powered on/off
Voltage 5V(3.5V~6.5V )
Maximum power ≤1.8W
Temperature -40°C~80°C
Secondary development Provide the protocol and Demo software
