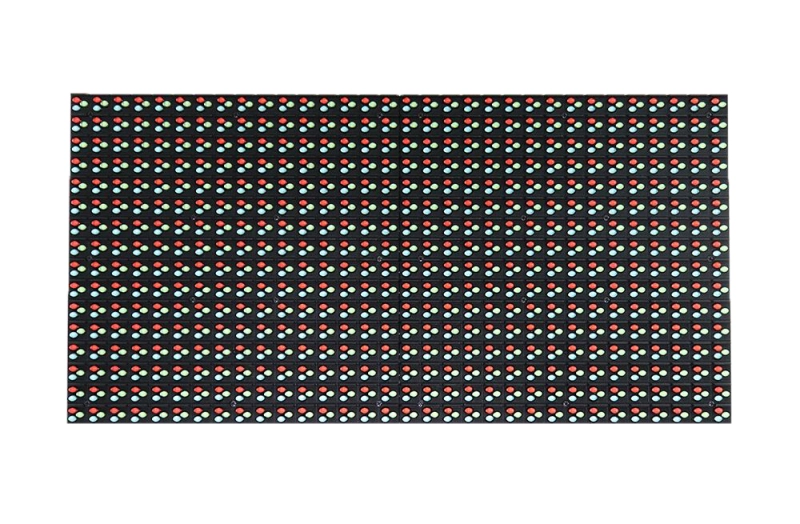

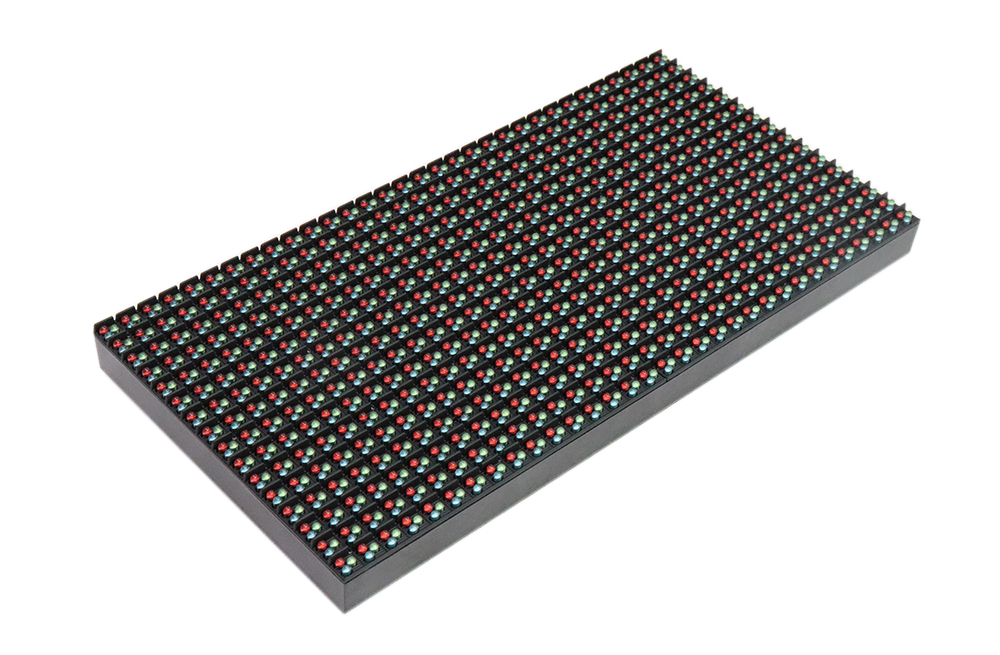

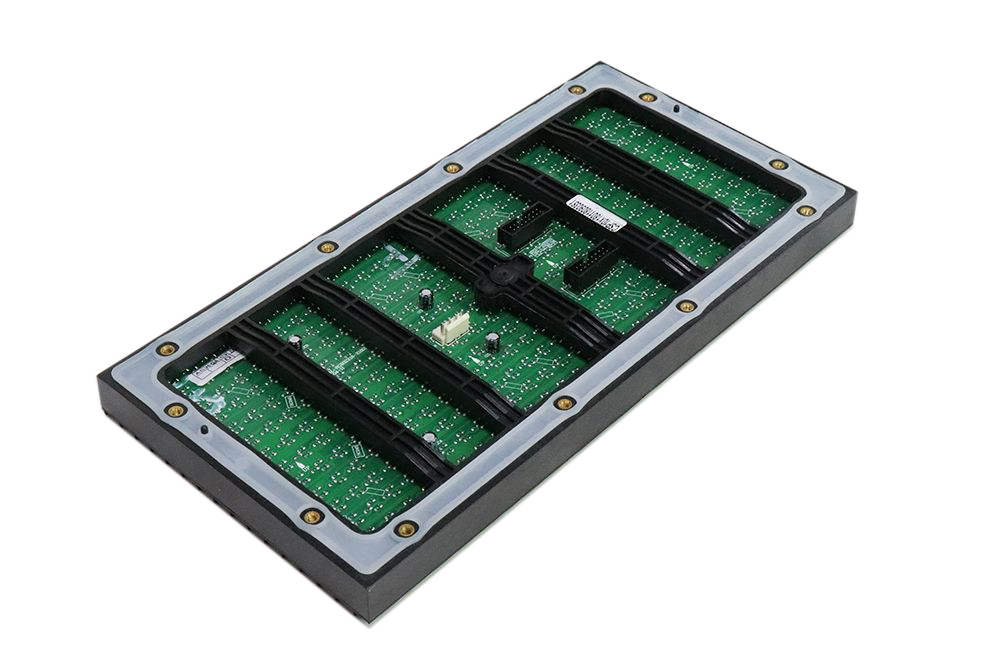

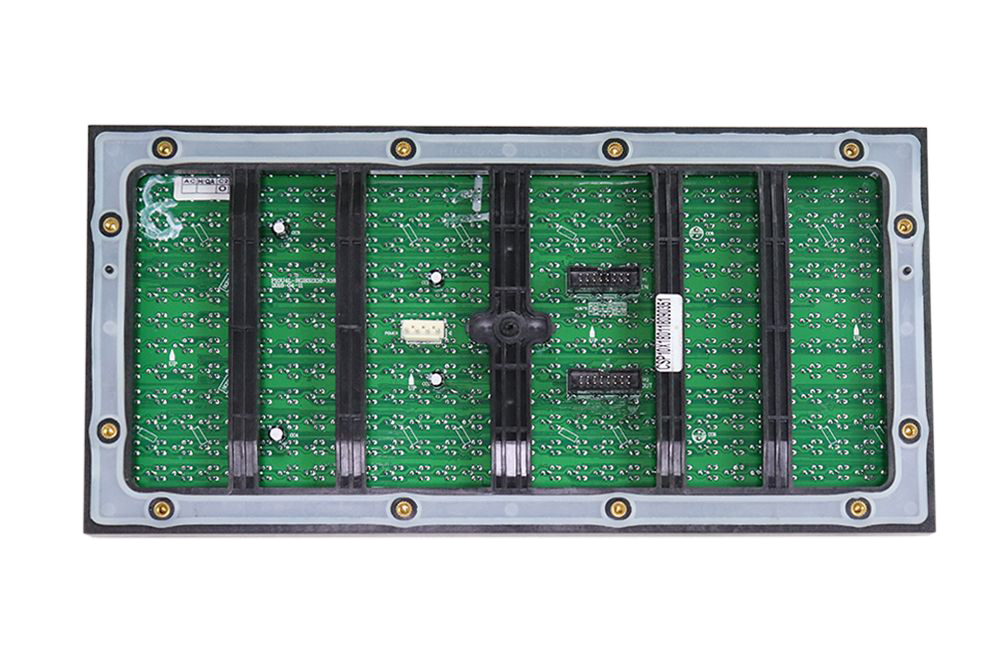

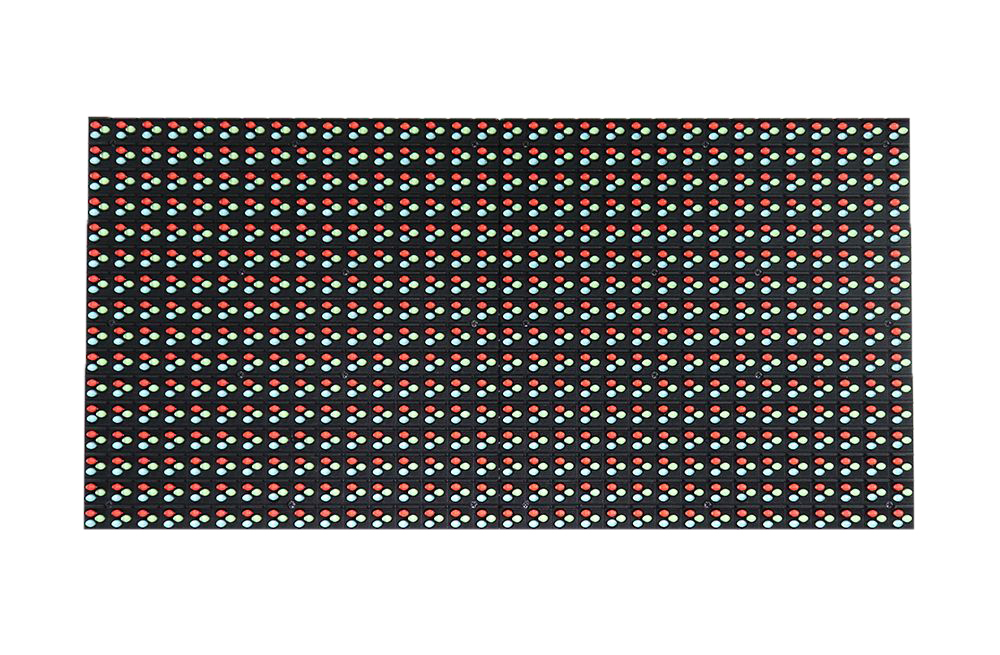

P10 Outdoor DIP346 320x160mm LED Display Screen Module

SKU: P10-O4L-DIP346-32x16
Best Price P10 Outdoor DIP346 320x160mm LED Display Screen Module, 72hours continuous aging test ensured no broken pixel, Epistar LEDs high qualtiy parts 2 years warranty.
$0.00 $31.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • P10 Outdoor DIP346 320x160mm LED Display Screen Module
  • P10 Outdoor DIP346 320x160mm LED Display Screen Module
  • P10 Outdoor DIP346 320x160mm LED Display Screen Module
  • P10 Outdoor DIP346 320x160mm LED Display Screen Module
  • Description
  • Shipping Policy
  • Why Us

Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don't offer technical support or services if you used our LED modules to replace existing old LED modules.

4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.




P10 Outdoor DIP346 320x160mm LED Display Screen Module Parameter:

LED Lamp Specification
Color Package Intensity Viewing Angle Wavelength Testing Conditions
Red DIP346 800-1500mcd 110°(H); 50°(V) 618-628nm 25℃,20mA
Green 1800-3000mcd 518-528nm 25℃,20mA
Blue 400-600mcd 465-475nm 25℃,20mA
Module Parameter
Pixel Pitch 10mm
Pixel Configuration DIP346
Density 10,000 pixels/㎡
Module Resolution 32pixel(L) * 16pixel(H)
Module Dimension 320mm(L) * 160mm(H) * 30mm(D)
Driving Mode Constant current, 1/4 duty
Module Mask Pure black mask---high contrast screen
Electricity Parameter
Optical Ratings
Brightness ≥7,500 cd/㎡
Viewing Angle 110°(Horizontal); 50°(Vertical)
Best Viewing Distance ≥10m
Gray Grade 14 bit
Display Color 4.4 trillion colors
Brightness Adjustment 100 grades by software or automatically by sensor
Max. Power Consumption 40 W
Control System
Frame Frequency ≥60Hz
Refresh Frequency ≥1,920Hz
Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance 100m(Ethernet cable);
20KM(optical fiber cable)
Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature -20~+60 ºC
Storage Temperature -30~+70 ºC
Working Humidity 10%~90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Operating Time ≥72 hours
Protection Grade IP65
Out-of-Control Pixel Rate ≤0.01%
