P1.25 Indoor 640x480 Die-cast Magnetic Front Service LED Display Screen

SKU: P1.25-HD32S-SMD1010-256x128-L640xH480
P1.25 Indoor 640x480 Die-cast Magnetic Front Service LED Display Screen weight Only 8kg, easy for transport, save your labor cost, also light weight is convenient for installtion, assembly and disassembly.Rental LED Display features high brightness, high contrast, high refresh rate and high gray scale,the LED display with vivid image, clean video display and gorgeous picture quality.
$0.00 $585.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • P2 Indoor 640x480 Die-cast Magnetic Front Service HD LED Display Panel
  • P2 Indoor 640x480 Die-cast Magnetic Front Service HD LED Display Panel
  • P2 Indoor 640x480 Die-cast Magnetic Front Service HD LED Display Panel
  • P2 Indoor 640x480 Die-cast Magnetic Front Service HD LED Display Panel
  • P2 Indoor 640x480 Die-cast Magnetic Front Service HD LED Display Panel
  • P2 Indoor 640x480 Die-cast Magnetic Front Service HD LED Display Panel
  • P2 Indoor 640x480 Die-cast Magnetic Front Service HD LED Display Panel
  • Description
  • Shipping Policy
  • Why Us
  • Notice before order

P1.25 Indoor 640x480 Die-cast Magnetic Front Service LED Display Screen  Features:

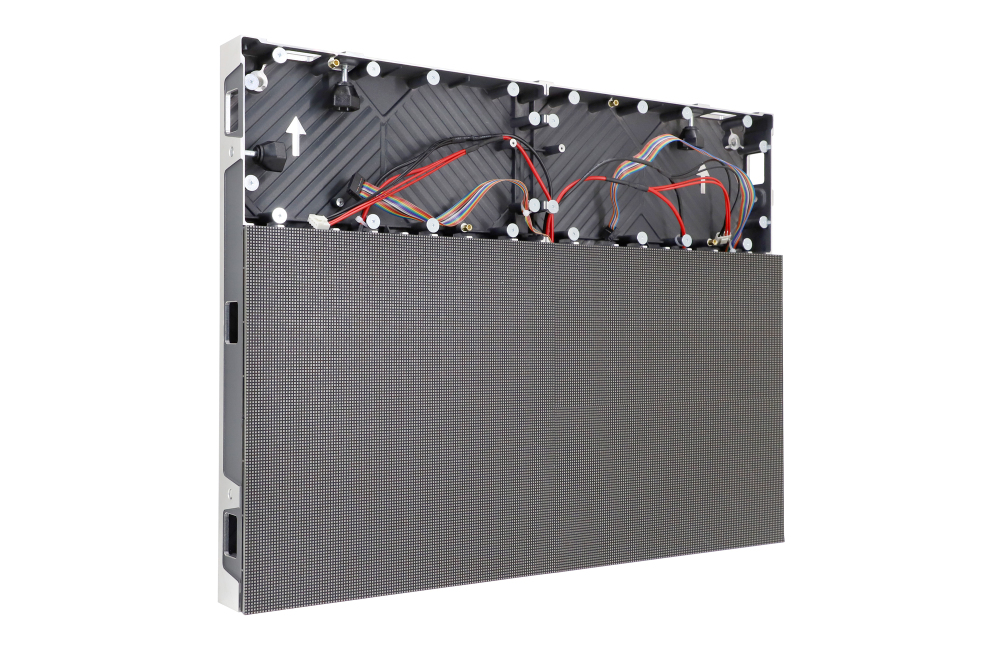

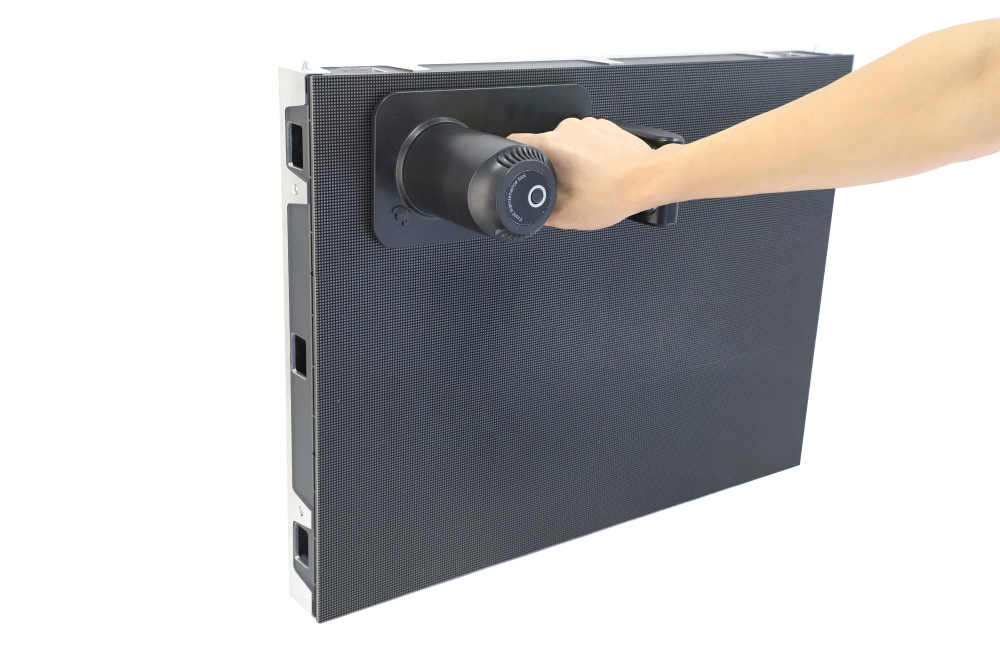

We adopt 320x160mm module and 640x480mm die-cast cabinet to make our indoor HD series. 320x160mm module is popular in the market, hence, reducing the cost. It is full front service with external cabling, which is easier for installation and maintenance. High quality LED lamps and 3840Hz refresh rate ensures perfect display performance, meeting the requirements of live broadcast.
640x480mm standard size cabinet design, 90mm thickness, suitable for all 320x160mm LED display modules
HD Series Rental LED Display features high brightness, high contrast, high refresh rate and high gray scale,
the LED display with vivid image, clean video display and gorgeous picture quality.
HD Series LED display weight Only 8kg, easy for transport, save your labor cost, also light weight is convenient for installtion, assembly and disassembly.
We use best Driving IC such as 2153,2038S,NATIONSTAR LED to ensure our LED display best brightness.

P1.25 Indoor 640x480 Die-cast Magnetic Front Service LED Display Screen  Parameter:

LED Lamp Specification
Color Package Intensity Viewing Angle Wavelength Testing Conditions
Red SMD1010 20mcd 120°/120° 620nm 25℃,5mA
Green 30mcd 120°/120° 530nm 25℃,2mA
Blue 5mcd 120°/120° 470nm 25℃,2mA
Module Parameter
Pixel Pitch 1.25mm
Pixel Configuration SMD1010
Density 422,500pixels/㎡
Module Resolution 208pixel(L) * 104pixel(H)
Module Dimension 320mm(L) * 160mm(H) * 15mm(D)
Driving Mode Constant current, 1/26 duty
LED Cabinet
Module Quantity in a Cabinet 2(L) *3(H)
Cabinet Dimension 640(L)*480(H)* 90(D)mm
Cabinet Resolution 416 pixel(L) * 312 pixel(H)
Cabinet Material Die-cast aluminum
Cabinet Weight ≈8KG
Electricity Parameter
Optical Ratings
Brightness ≥500 cd/㎡
Viewing Angle 120°(Horizontal); 120°(Vertical)
Best Viewing Distance ≥1.25m
Gray Grade 14 bits
Display Color 4.4 trillion colors
Brightness Adjustment 100 grades by software or automatically by sensor
Max. Power Consumption 580 W/㎡
Avg. Power Consumption 195 W/㎡
Control System
Frame Frequency ≥60Hz
Refresh Frequency ≥3,840Hz
Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance 100M (Ethernet cable);
20KM (Optical fiber cable)
Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature -20~+60 ºC
Storage Temperature -30~+70 ºC
Working Humidity 10%~90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Operating Time ≥72 hours
Protection Grade IP31
Out-of-Control Pixel Rate ≤0.01%
1. Each items not including shipping cost. You can check the shipping cost after you add the goods in the shopping cart.


2. DHL express is the default method. Others express like UPS or Fedex will be adopted only when DHL is not available or not suitable at the destination; If you would like to ship the goods by sea or by air, please contact us in advance.


3. We will ship your order within 2 working days upon receiving payment. We will re-inform you another fastest delivery date if the goods is out of stock.



4. We only ship to the confirmed address from your order information. Please do confirm the delivery address on your account when you pay by PayPal or Credit Card.



5. Shipment time is depends on the carrier and excludes weekends and holidays. Transit time may slow, particularly during the holiday season.


6. Please inform us in advance if you wanna declare lower value on the shipping invoice in order to avoid or minimize the customs tax on your side. If not, we will use the orginal amount as paid.


7. If required, please assist the courier for necessary assistance concerning the customs clearance of the goods locally.


8. Please check the items in front of the courier when they arrive. If the goods are damaged, please try to obtain local courier’s documentary evidence for the breakage, In the meantime, please email us with photos or videos of the packaging and products as soon as possible.


9. If you have not received your shipment within 15 days since payment date, please contact us. We will track the shipment and get back to you ASAP.



10. The products ordered will not enjoy return and warranty if their codes are ripped off.



11. We provide two years warranty for most of our products sold (special terms are subject to final Proforma Invoice.). If there are any defects under normal use during this period, we will fix or replace for free at our factory. Customers only responsible for turn back shipping cost.

Why Buy from us?

1.Strong technical background. we are a professional LED screen manufacturer in Shenzhen China. our engineers are well experienced in all kinds of LED controller card configuration and operation and producing and using LED screens.

2.No MOQ request on all our products. You can buy even one sample to test our products before placing bulk orders.Many other suppliers have strict MOQ request,which is not convenient for buyers.

3.Quick and safe payment. You can pay by credit card through Paypal, which offers complete buyer protection and avoids having to share any of your financial information.

4.Good quality control. Our technicians inspect all the products earnestly before packaging.

5.Long warranty period. All LED controller products you buy from ledpartsmall.com are under two years warranty. You can send the defective products back to us for repair during the warranty period, and we will repair them and send back to you. The shipping cost is afforded by sender.

6. Good support from our English-speaking engineersBefore and after sales 7/24, you can get full support from our engineers, we are proficient in English.

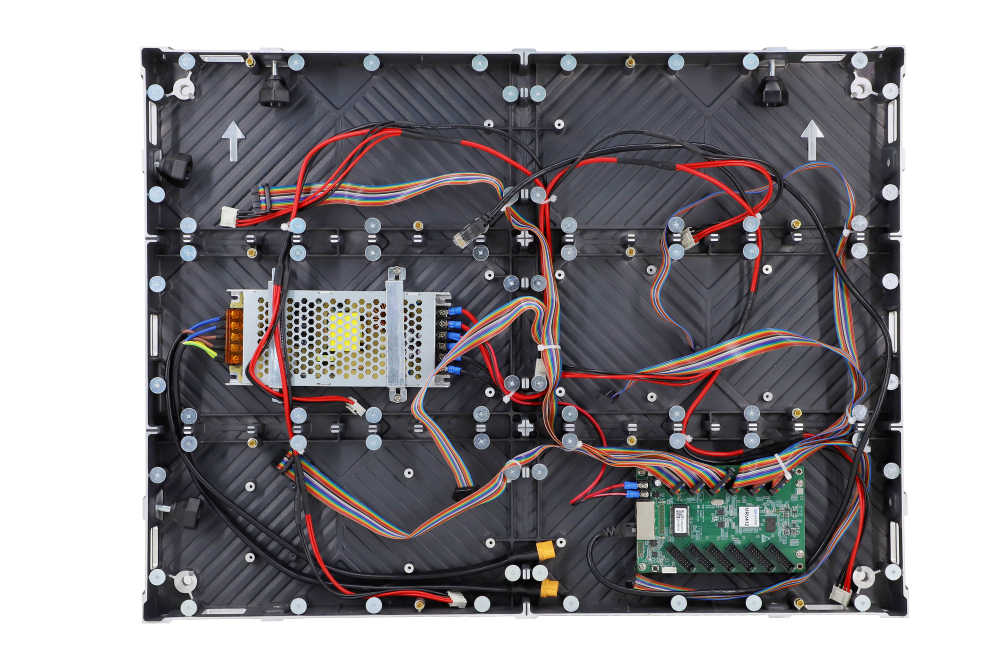

1) Parts included : Waterproof steel cabinet, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables.

2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.

3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.

4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
