Model:P16-OF1L-1R1G1B20x20 Brightness:≥9000CD/㎡ Power consumption:54W Viewing angle:H:110°,V:50° Product description: P16 DIP 1R1G1B, high brightness, low cost front access LED sign solution

$56.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness&color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

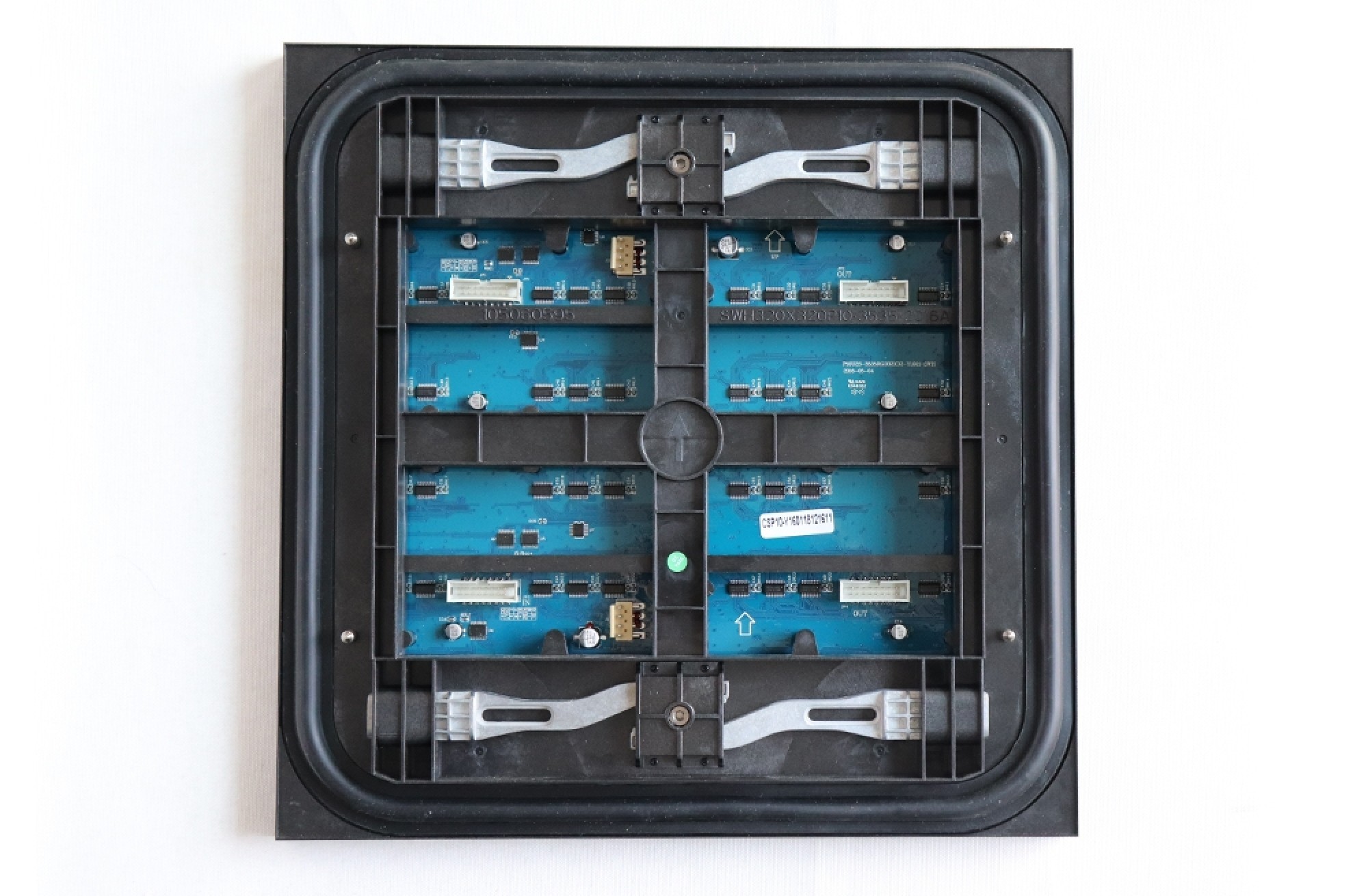

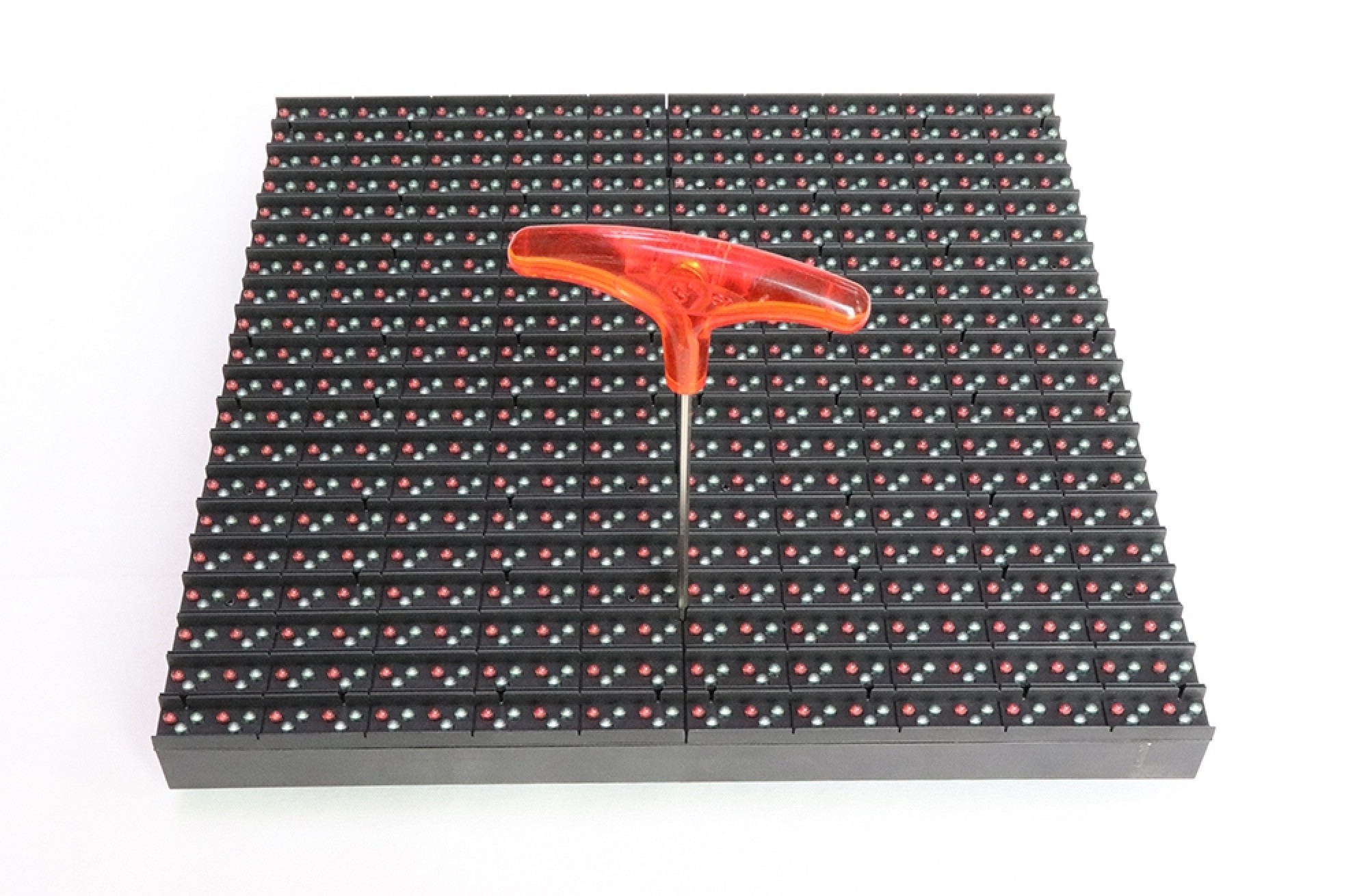

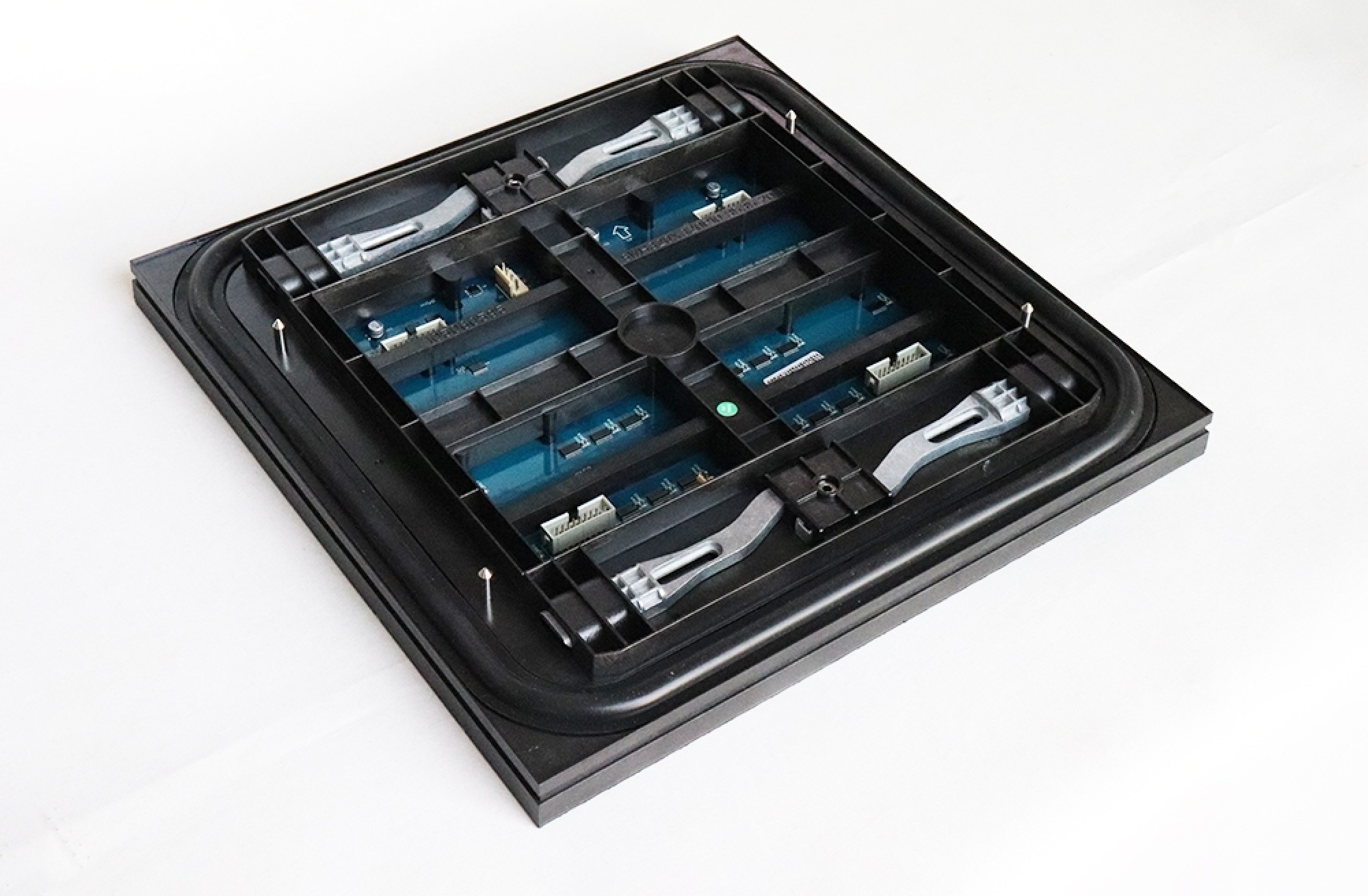

Features of P16 Front Access LED Module Outdoor 1R1G1B DIP 320x320mm:
1) Dual-maintenance, from both the front side and the rear side. People usually use its front maintenance function.
2) Easy maintenance, easy to take the modules with a 4mm hexagonal screwdriver.
3) No screws, easier to take the modules and mount the modules on the cabinet.
4) 16mm pixel pitch with DIP, perfect solution for semi-outdoor advertising LED screen and outdoor rental LED screen.
5) New plastic cover with new mold, smaller module gaps and better screen flatness.
6) Reasonable PCB design, reliable and long life time.

Applicable situations of P16 Front Access LED Module Outdoor 1R1G1B DIP 320x320mm:
Outdoor LED signs requiring front maintenance
Commercial video screens with small sizes
Double face LED signs
Small LED banner signs
Outdoor rental LED screen requiring fast maintenance

PCB Versions of P16 Front Access LED Module Outdoor 1R1G1B DIP 320x320mm:

P16U1L-RGB20X20-Y1304-SWH	P16U1L-RGB20X20-X1304-SWH
P16U1L-RGB20X20-Y1302-SWH	P16U1L-RGB20X20-Y1301-SWH
P16U1L-RGB20X20-X1035-SWH	P16U1L-RGB20X20-X1034-SWH

Parameters of P16 1R1G1B 320x320 Outdoor Front Access LED Module:

Item	Specification
LED type	DIP346
Pixel pitch	16mm
Pixel configuration	1R1G1B
Module Size	320x320mm
Module resolution	20x20pixels
Density	3,906 pixels/ ㎡
Driving Mode	Static
Brightness	≥9000CD/ ㎡
Viewing angle	H:120°, V:120°
Best viewing distance	16m---100m
Working voltage	5V
Power consumption	54W
Module weight	2.5KG
>Protection grade	Front: IP43
Working Temperature	-20 ～60℃
