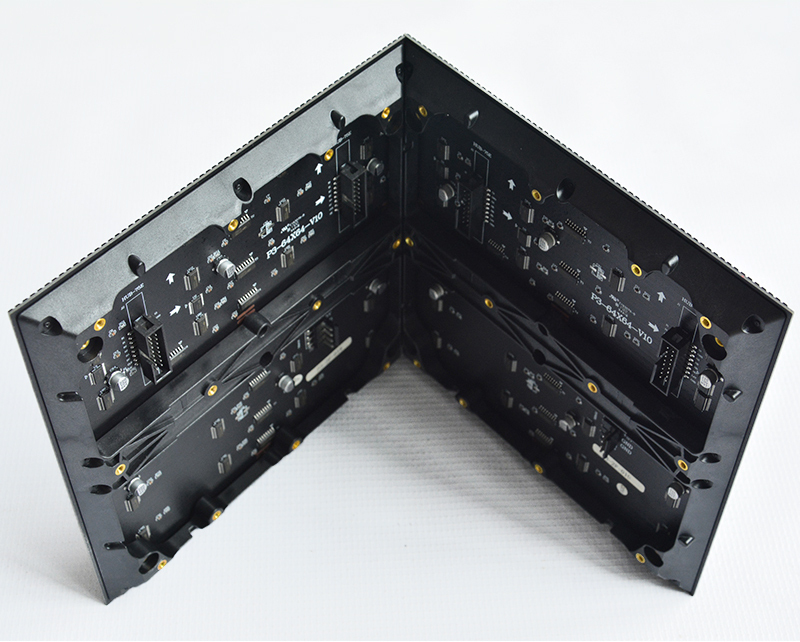

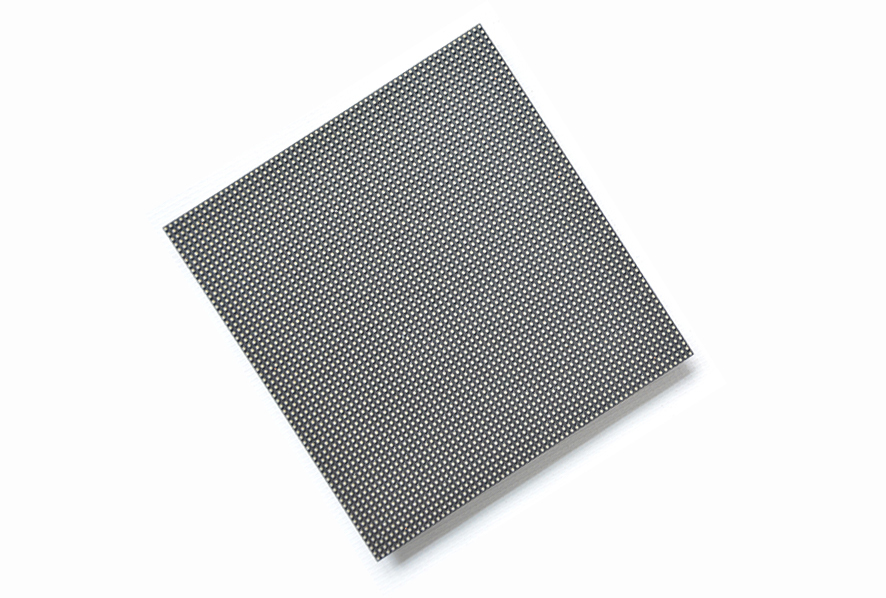

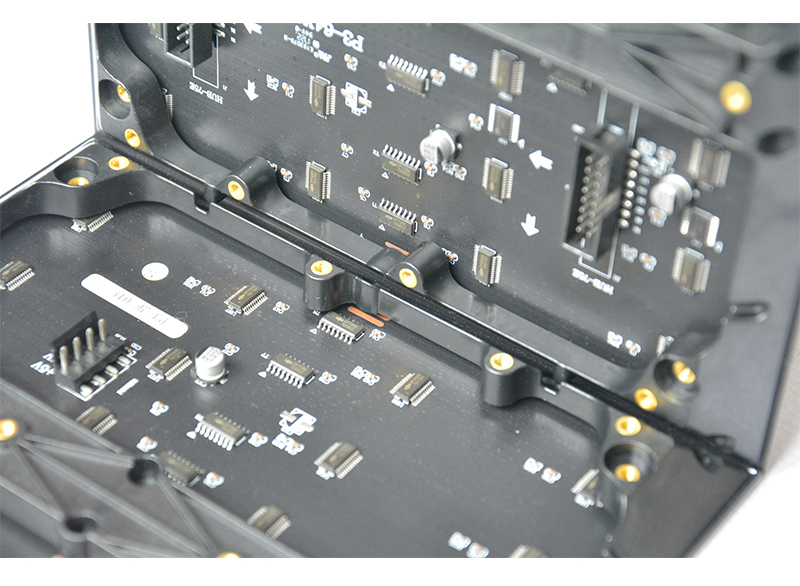

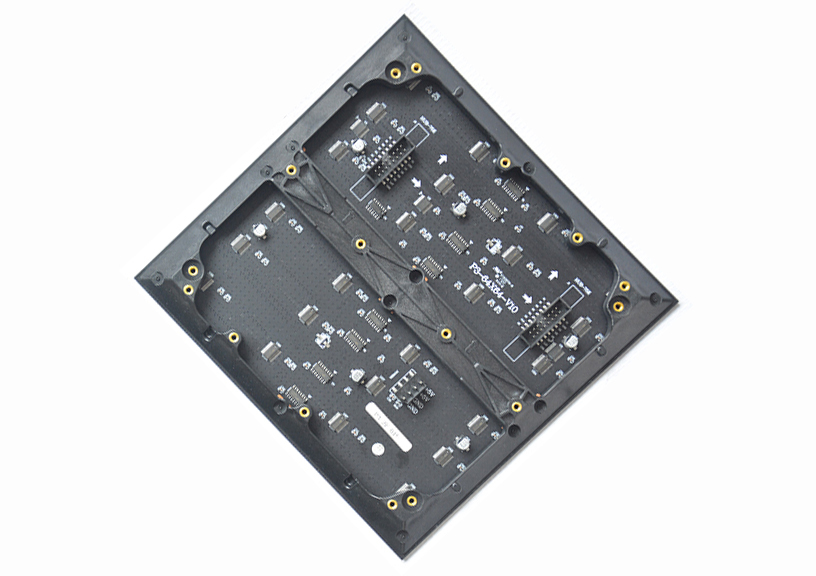

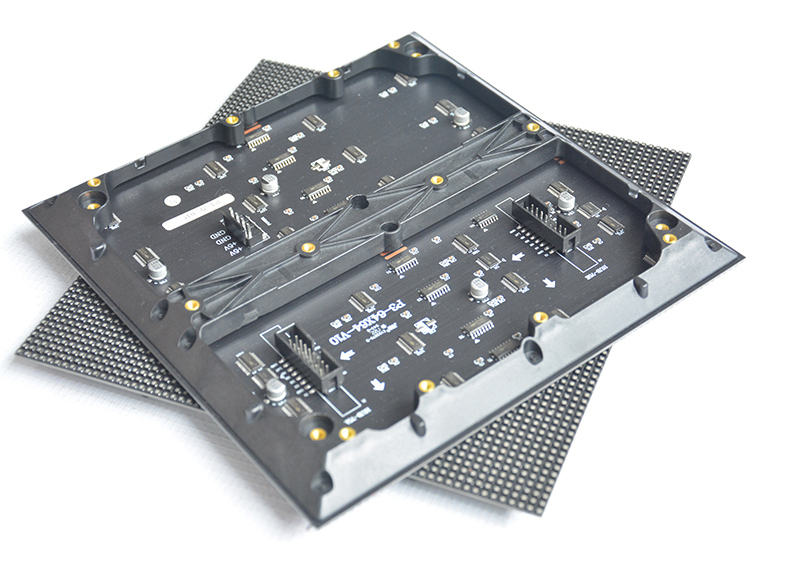

P3 Indoor Video LED Panel Screen Right Angle 192mmx192mm LED Module

Name: P3 Indoor Video LED Panel Screen Right Angle 192mmx192mm LED Module
Brand: Shopping LED Screen controller Video processor power supply
SKU: P3 Indoor Video LED Panel
Price: 22 USD
Availability: InStock

SKU: P3 Indoor Video LED Panel

Pixel Pitch:3mm
LED Type: SMD2121
Module Size: 192*192 mm
Model Pixel: 64*64 Pixels
Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO

~~$24.00~~ $22.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

Description
Shipping Policy
Why Us

P3 INDOOR VIDEO LED PANEL SCREEN RIGHT ANGLE 192MMX192MM LED MODULE

Indoor P3mm Right Angle LED Display Module Size is 192mmx192mm With 64×64 dots.

Attention:

We recommend that you buy the same batch led modules at once for the Same LED Display. Because different batches of led modules have different brightness and display colors, even different config files.
If you want to build led screen, please buy enough LED Modules and Spare Parts.
Tariffs or Duties at the destination not included. If you have questions about Importation to your country, please contact us online sales.

Remark:

LED Module including the Data & Power Cables.
2 Years Warranty, Ship in 24 hours, Free Online Support.
LED Module Can Work With Linsn, Novastar, Colorlight, Xixun HUIDU LED Control Card Etc.
72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) before dispatch.

P3 Indoor Video LED Panel Screen Right Angle 192mmx192mm LED Module Main Specifications:

Resolution	64(H)×64(V)
Pitch	3mm
Density	111,111 pixels/㎡
LED Arrangement	SMD2121
Driver Mode	Dynamic 1/32 Duty constant current
Size	192mm×192mm
Mask	Pure Black mask-high contrast screen
3.Electricity Parameter
Optical Ratings
Brightness		≥1000cd/㎡
View Angle		140 degree ( horizontal) 140degree(vertical)
View Distance		3m-30m
Gray Scale		8bits input, correction with 16bits
Display Color		16.7M
Brightness Adjustment		100 levels
Power Supply
Operation Power		AC100-240V 50-60HZ Switch-able
Maxim Power Consumption		900 W/m2
Average Power Consumption		500 W/m2
Control System
Correction Scale Level		16bits
Frame Update Frequency		60Hz
Screen Refresh Frequency		1920Hz
Gamma Correction		-5.0—5.0
Support Input		Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance		Ethernet cable 100m, optical fiber 5km
Support VGA Mode		800×600,1024×768,1280×1024,1600×1200
Color Temperature		5000-9300 adjustable
Brightness Correction		dot by dot, module by module, cabinet by cabinet
Reliability
Operating Temp.		-20-60 Celsius degree
Operating Humidity		10-95% RH
Operating Life		100,000 hours
MTBF		5000 hours
Continuous Working Time		≥48 hours
Protection Level		IP54
Out of Control Pixel Rate		0.01%
