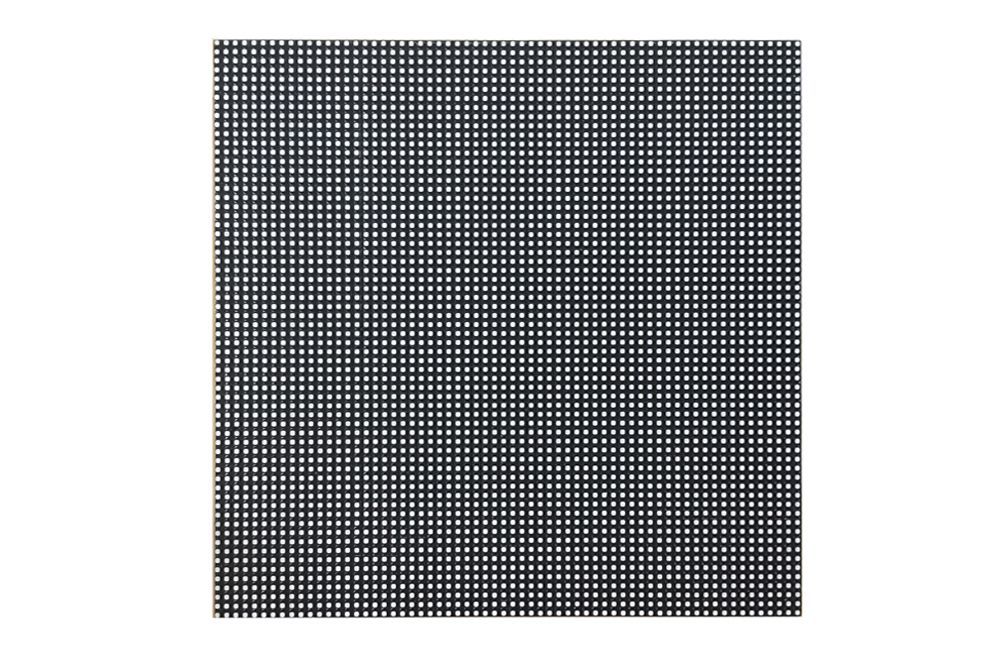

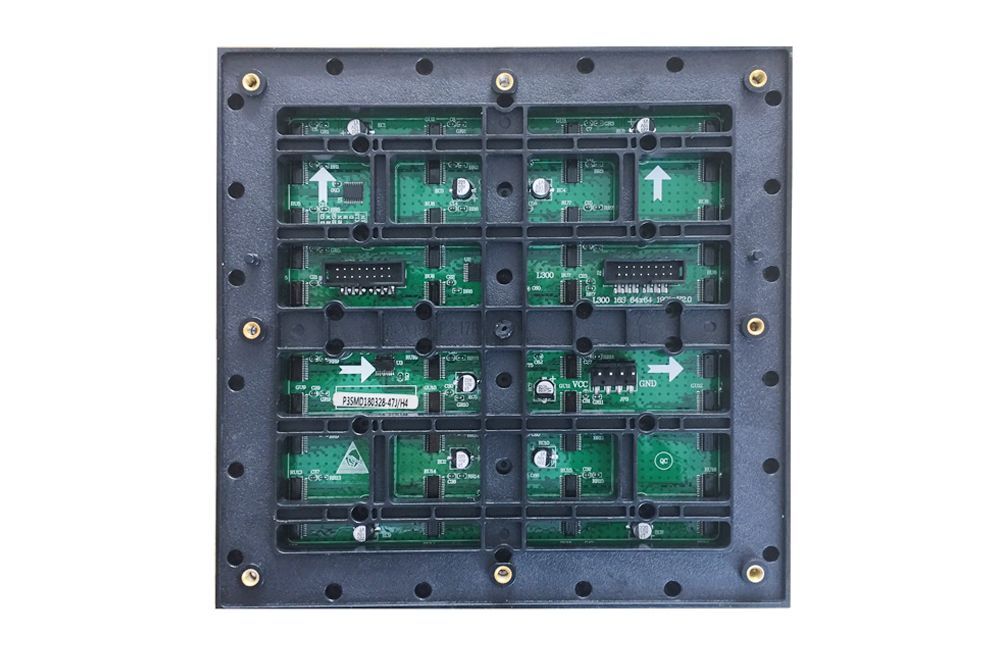

P3 SMD1921 Outdoor SMD LED Display Screen Module 192x192mm

SKU: P3-O16S-SMD1921-64x64
P3 SMD 1921 Outdoor SMD LED Display Screen Module 192x192mm, outdoor ultra high definition LED Display Module, fine image performance quality. High-end outdoor advertising LED Display Panel.
$0.00 $23.90
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • P3 SMD1921 Outdoor SMD LED Display Screen Module 192x192mm
  • P3 SMD1921 Outdoor SMD LED Display Screen Module 192x192mm
  • Description
  • Shipping Policy
  • Why Us

P3 SMD 1921 Outdoor SMD LED Display Screen Module 192x192mm Parameter:

LED Lamp Specification
Color Package Intensity Viewing Angle Wavelength Testing Conditions
Red SMD1921 180mcd 120° 622nm 25℃,15mA
Green 480mcd 120° 522nm 25℃,8mA
Blue 85mcd 120° 472nm 25℃,5mA
Module Parameter
Pixel Pitch 3mm
Pixel Configuration SMD1921
Density 111,111 pixels/㎡
Module Resolution 64pixel(L) * 64pixel(H)
Module Dimension 192mm(L) * 192mm(H) * 25mm(D)
Driving Mode Constant current, 1/16 duty
Electricity Parameter
Optical Ratings
Brightness ≥5,500 cd/㎡
Viewing Angle 120°(Horizontal); 120°(Vertical)
Best Viewing Distance ≥3m
Gray Grade 14 bits
Display Color 4.4 trillion colors
Brightness Adjustment 100 grades by software or automatically by sensor
Max. Power Consumption 30 W
Control System
Frame Frequency ≥60Hz
Refresh Frequency ≥1920Hz
Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance 100m(Ethernet cable);
20KM(optical fiber cable)
Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature -20~+60 ºC
Storage Temperature -30~+70 ºC
Working Humidity 10%~90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Operating Time ≥72 hours
Protection Grade IP65
Out-of-Control Pixel Rate ≤0.01%
