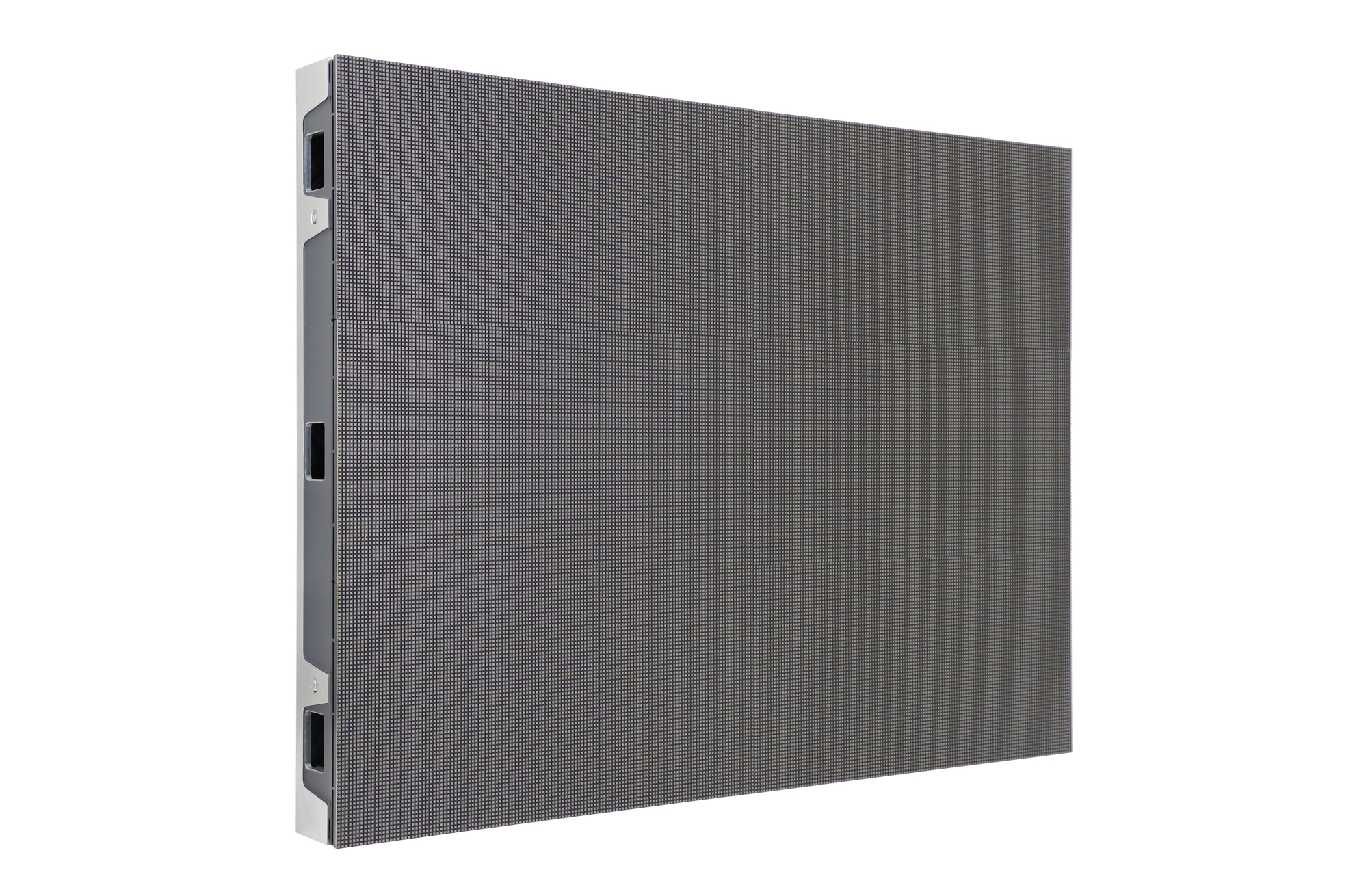

P3.076 Indoor 640x480 Die-cast Front Service LED Screen Display

SKU: P3.076-IF26S-SMD2121-104x52-L640xH480

P3.076 Indoor 640x480 Die-cast Front Service LED Screen Display Features:

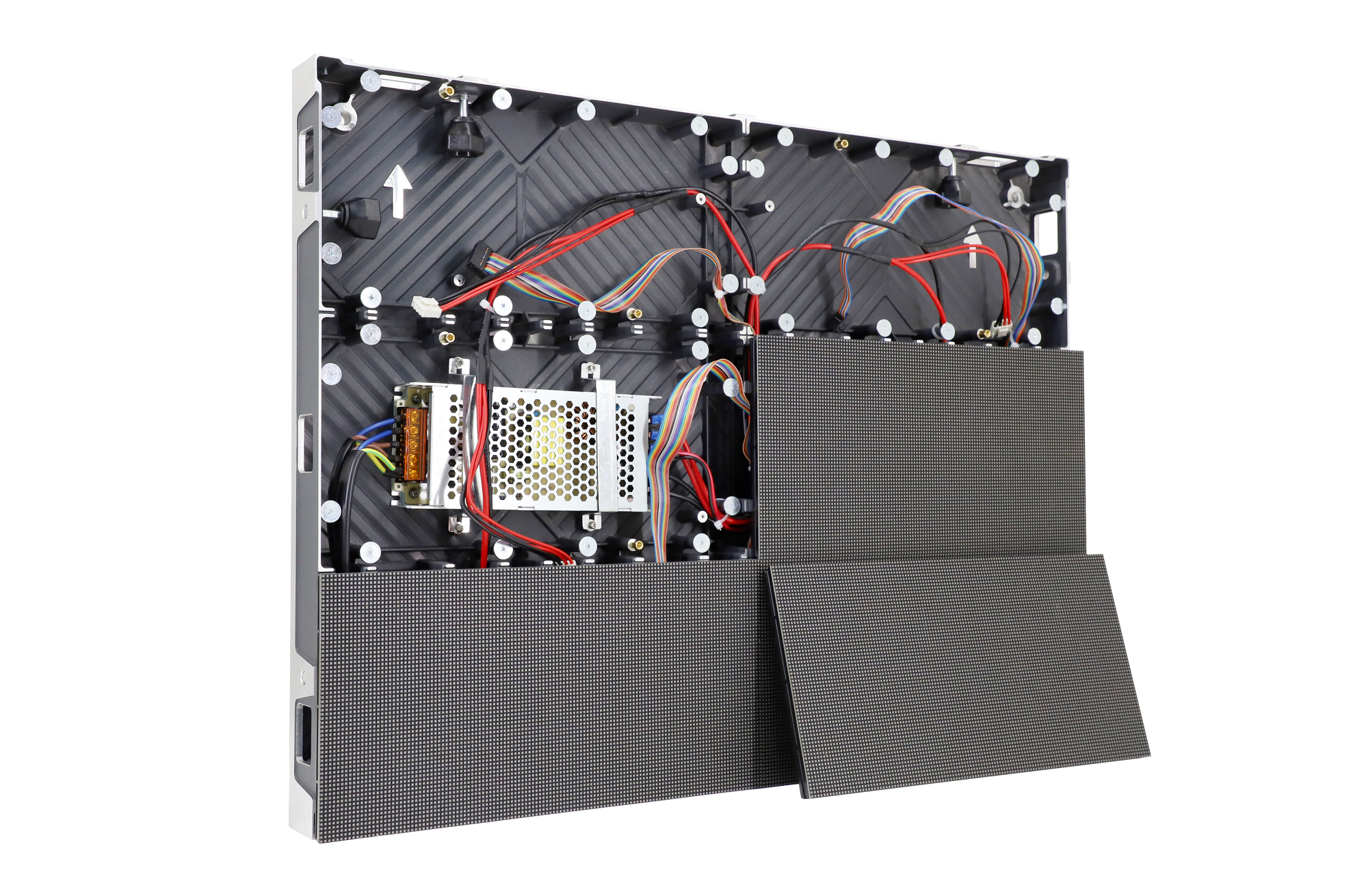

1. Maintain the LED module before using the magnet, it is very easy to install and remove

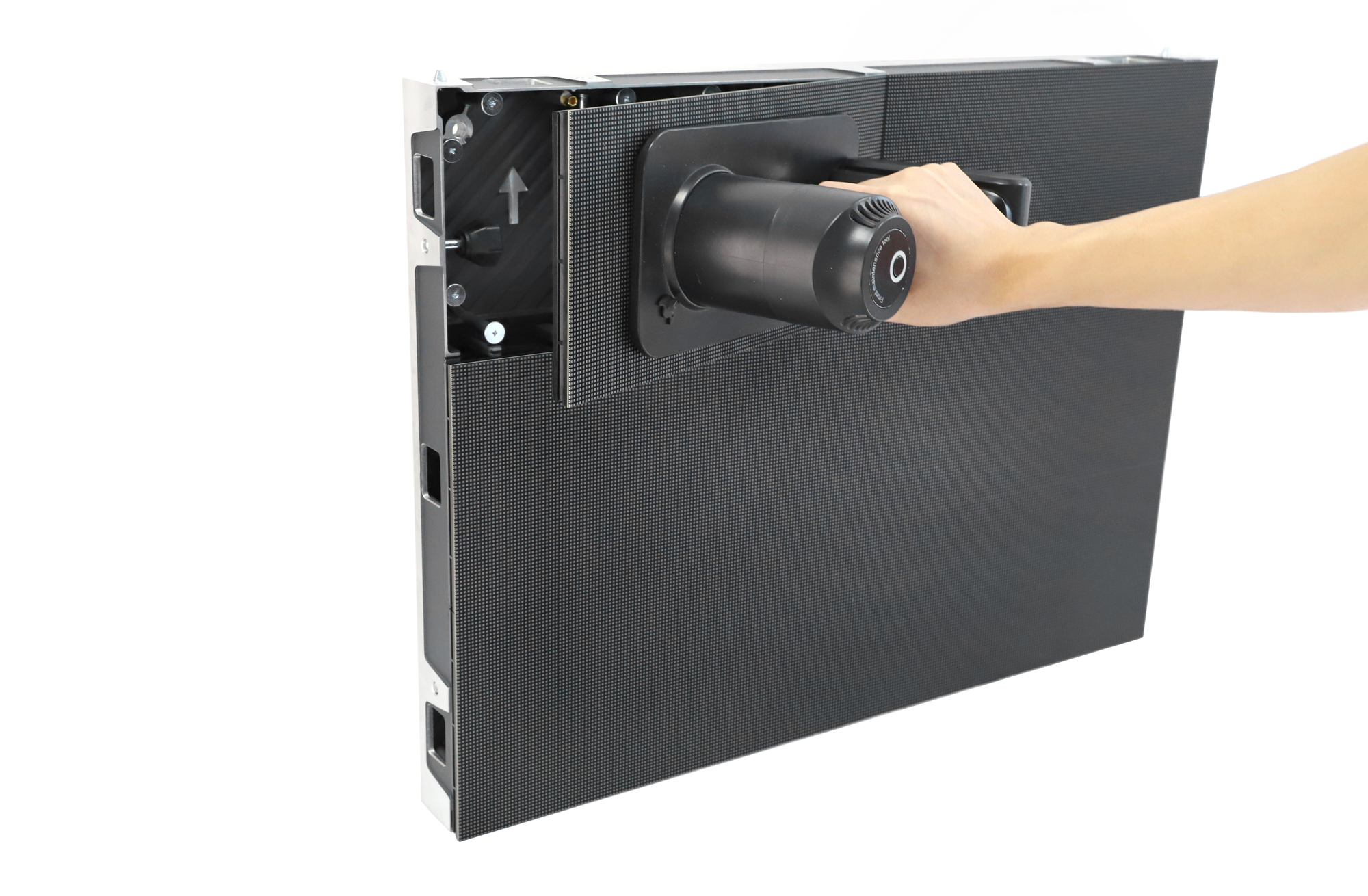

2. 640x480mm box, moderate size, easy to install, you can use vacuum suction tool to quickly remove the module
3. The frame can be made of aluminum alloy structure, which can be installed quickly

$220.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us
Notice before order

P3.076 Indoor 640x480 Die-cast Front Service LED Screen Display Function:
1. Maintain the LED module before using the magnet, it is very easy to install and remove
2. 640x480mm box, moderate size, easy to install, you can use vacuum suction tool to quickly remove the module
3. The frame can be made of aluminum alloy structure, which can be installed quickly
4. Wide viewing angle. Both horizontal and vertical viewing angles can reach 120 degrees.
5. Good color and brightness consistency.
6. Small gaps between modules and perfect screen flatness. The gap between the modules is less than 1 mm, and the screen flatness is less than 1 mm.
7. 1920HZ refresh rate, 14-bit color depth, 105,688 pixels/square meter

P3.076 Indoor 640x480 Die-cast Front Service LED Screen Display Application:
Indoor advertising LED display, indoor rental LED display

P3.076 Indoor 640x480 Die-cast Front Service LED Screen Display Parameters:

LED Lamp Specification
Color	Package	Intensity		Viewing Angle	Wavelength	Testing Conditions
Red	SMD2121	80-104mcd		120°	618-623nm	25℃,15mA
Green		270-338mcd		120°	515-519nm	25℃,10mA
Blue		31-39mcd		120°	465-469nm	25℃,5mA
Module Parameter
Pixel Pitch			3.076mm
Pixel Configuration			SMD2121
Density			105,688 pixels/㎡
Module Resolution			104pixel(L) * 52pixel(H)
Module Dimension			320mm(L) * 160mm(H) * 18mm(D)
Driving Mode			Constant current, 1/26 duty
LED Cabinet
Module Quantity in a Cabinet			2(L)*3(H)
Cabinet Dimension			640（L）480（H） 90(D)mm
Cabinet Resolution			208(L) * 156(H)

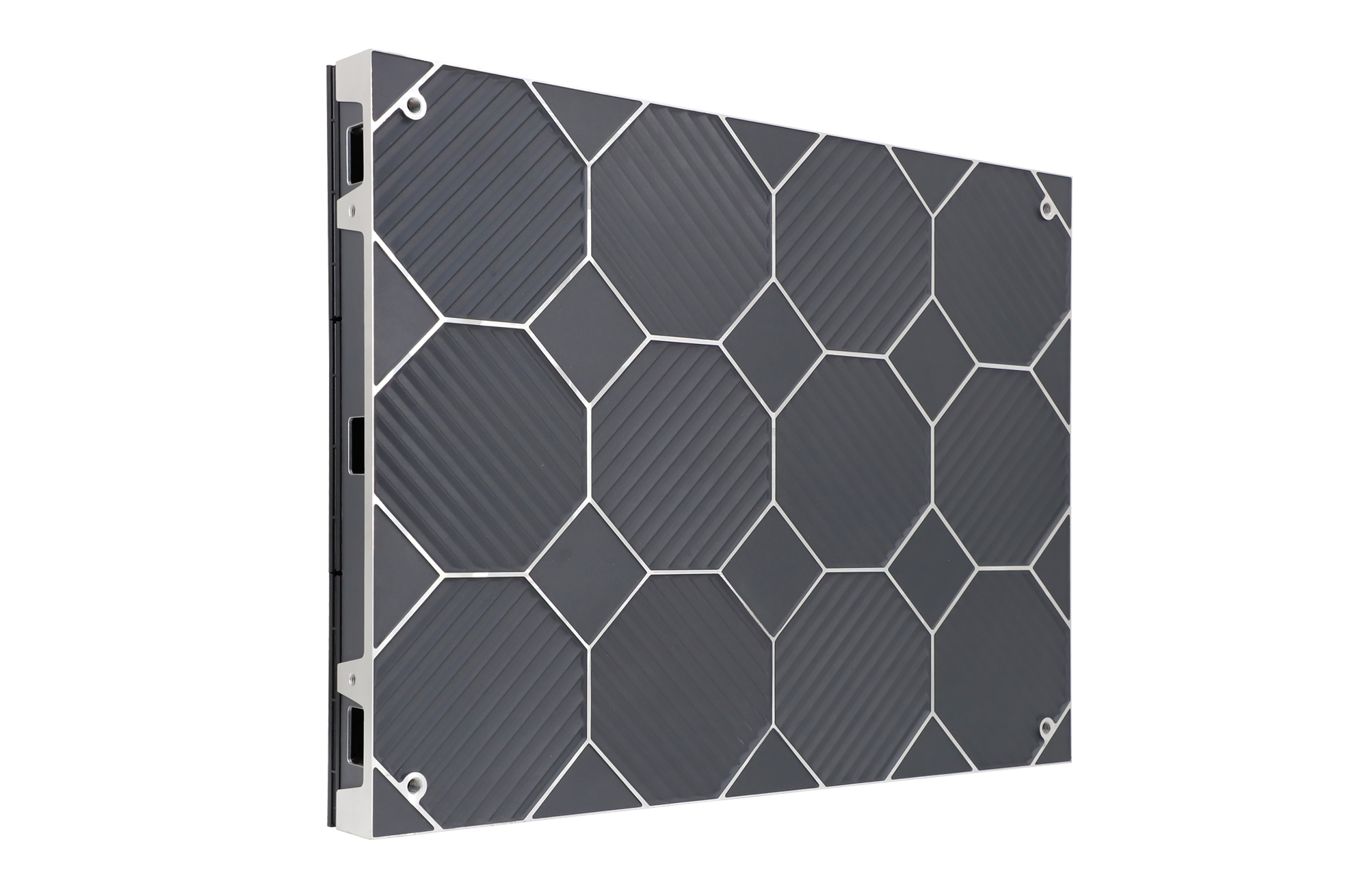

Cabinet Material			Die-cast aluminum;
Cabinet Weight			≈8KG
Electricity Parameter
Optical Ratings
Brightness			≥1.000 cd/㎡
Viewing Angle			120°(Horizontal)； 120°(Vertical)
Best Viewing Distance			≥3m
Gray Grade			14 bits
Display Color			4.4 trillion Colors
Brightness Adjustment			100 grades by software or automatically by sensor
Operation Power			AC100-240V 50-60Hz Switchable
Max. Power Consumption			413 W/㎡
Avg. Power Consumption			138 W/㎡
Control System
Frame Frequency			≥60Hz
Refresh Frequency			≥1,920Hz
Input Signal			Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance			100M (Ethernet cable);
			20KM (Optical fiber cable)
Support VGA Mode			800600, 1024768, 12801024, 16001200
Color Temperature			5000—9300 adjustable
Brightness Correction			Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature			-20～+60 ºC
Storage Temperature			-30～+70 ºC
Working Humidity			10%～90% RH
Lifetime			100,000 hours
MTBF			5000 hours
Continuous Operating Time			≥72 hours
Protection Grade			IP31
Out-of-Control Pixel Rate			≤0.01%
