P3.91-7.82 1000x500 Transparent LED Screen

Name: P3.91-7.82 1000x500 Transparent LED Screen
Brand: Shopping LED Screen controller Video processor power supply
SKU: P3.91-IT8S-SMD1921-128x16-L1000xH500
Price: 420 USD
Availability: InStock

SKU: P3.91-IT8S-SMD1921-128x16-L1000xH500

Transparent Window LED Display is designed to meet the requirement that LED Display should be Transparent, so that people can watch the things behind the LED Display. And it also have all the feature that the normal LED Display has, that means it can display dynamic digital sources like commercial brand name, logo, slogon, and even advertisement film to catch the attention of the potential consumer.

$420.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

Description
Shipping Policy
Why Us
Notice before order

P3.91-7.82 1000x500 Transparent LED Screen Application:

Features: Transparent Window LED Display is designed to meet the requirement that LED Display should be Transparent, so that people can watch the things behind the LED Display. And it also have all the feature that the normal LED Display has, that means it can display dynamic digital sources like commercial brand name, logo, slogon, and even advertisement film to catch the attention of the potential consumer. The Transparent LED Display is always installed inside the glass wall of the building or the street side shop/store. It can be a small size for 2sqm to a big one that reaches hundreds of sqm..

P3.91-7.82 1000x500 High Brightness Transparent LED Screen Parameter:

Module Parameter
Pixel Pitch	3.91mm(H);7.82mm(V)
Pixel Configuration	SMD1921
Density	32,768 pixels/㎡
Module Resolution	128pixel(L) *16pixel(H)
Module Dimension	500mm(L) * 125mm(H)
Driving Mode	Constant current, 1/8 duty
LED Cabinet
Module Quantity in a Cabinet	2(L) *4(H)

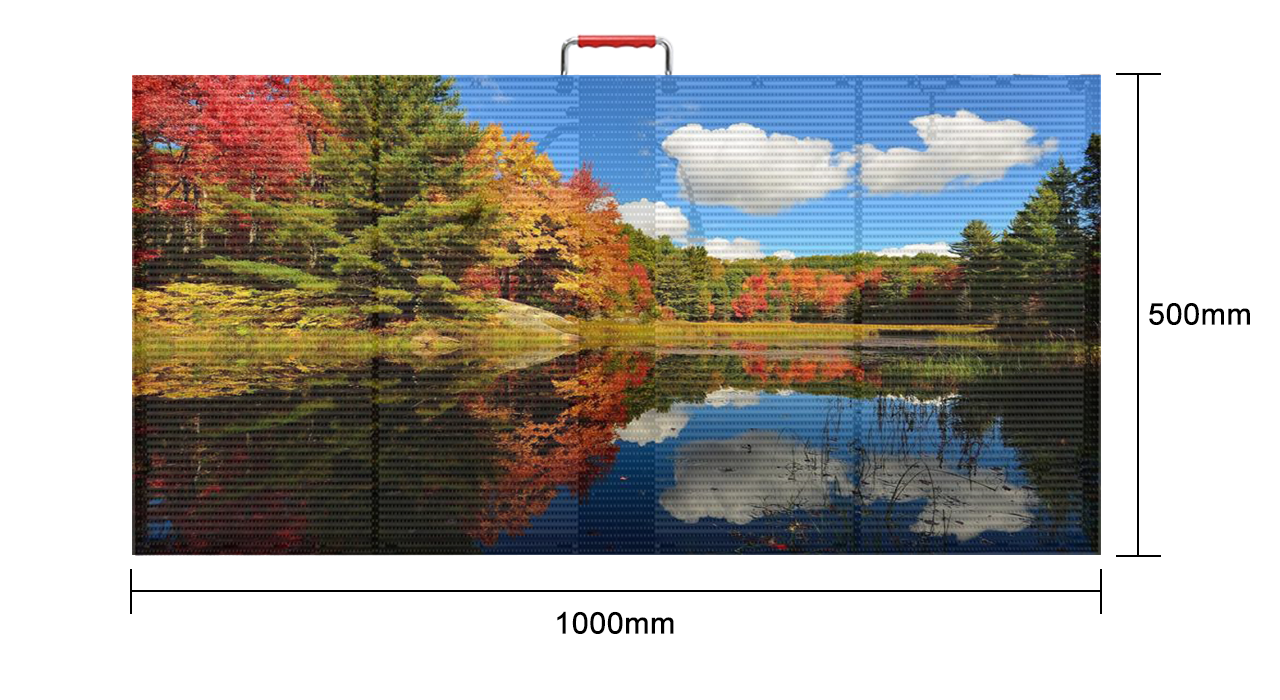

Cabinet Dimension	1000（L）500（H） 75(D)mm
Cabinet Resolution	256 pixel(L) * 64 pixel(H)
Cabinet Material	Die-cast Aluminum
Cabinet Weight	≈6KG
Maintenance Mode	Back Maintenance
Electricity Parameter
Optical Ratings
Brightness	≥4,500 cd/㎡
Viewing Angle	120°(Horizontal)； 120°(Vertical)
Best Viewing Distance	≥4m
Gray Grade	14 bits
Display Color	4.4 trillion Colors
Brightness Adjustment	100 grades by software or automatically by sensor
Operation Power	AC100-240V 50-60Hz Switchable
Max. Power Consumption	800 W/㎡
Avg. Power Consumption	220W/㎡
Control System
Frame Frequency	≥60Hz
Refresh Frequency	≥3,000Hz
Input Signal	Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance	100m(Ethernet cable);
Control Distance	20KM(optical fiber cable)
Support VGA Mode	800600, 1024768, 12801024, 16001200
Color Temperature	5000—9300 adjustable
Brightness Correction	Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature	-20～+60 ºC
Storage Temperature	-30～+70 ºC
Working Humidity	10%～90% RH
Lifetime	100,000 hours
MTBF	5000 hours
Continuous Operating Time	≥72 hours
Protection Grade	IP33
Out-of-Control Pixel Rate	≤0.01%

1. Each items not including shipping cost. You can check the shipping cost after you add the goods in the shopping cart.

2. DHL express is the default method. Others express like UPS or Fedex will be adopted only when DHL is not available or not suitable at the destination; If you would like to ship the goods by sea or by air, please contact us in advance.

3. We will ship your order within 2 working days upon receiving payment. We will re-inform you another fastest delivery date if the goods is out of stock.

4. We only ship to the confirmed address from your order information. Please do confirm the delivery address on your account when you pay by PayPal or Credit Card.

5. Shipment time is depends on the carrier and excludes weekends and holidays. Transit time may slow, particularly during the holiday season.

6. Please inform us in advance if you wanna declare lower value on the shipping invoice in order to avoid or minimize the customs tax on your side. If not, we will use the orginal amount as paid.

7. If required, please assist the courier for necessary assistance concerning the customs clearance of the goods locally.

8. Please check the items in front of the courier when they arrive. If the goods are damaged, please try to obtain local courier’s documentary evidence for the breakage, In the meantime, please email us with photos or videos of the packaging and products as soon as possible.

9. If you have not received your shipment within 15 days since payment date, please contact us. We will track the shipment and get back to you ASAP.

10. The products ordered will not enjoy return and warranty if their codes are ripped off.

11. We provide two years warranty for most of our products sold (special terms are subject to final Proforma Invoice.). If there are any defects under normal use during this period, we will fix or replace for free at our factory. Customers only responsible for turn back shipping cost.

Why Buy from us?

1.Strong technical background. we are a professional LED screen manufacturer in Shenzhen China. our engineers are well experienced in all kinds of LED controller card configuration and operation and producing and using LED screens.

2.No MOQ request on all our products. You can buy even one sample to test our products before placing bulk orders.Many other suppliers have strict MOQ request,which is not convenient for buyers.

3.Quick and safe payment. You can pay by credit card through Paypal, which offers complete buyer protection and avoids having to share any of your financial information.

4.Good quality control. Our technicians inspect all the products earnestly before packaging.

5.Long warranty period. All LED controller products you buy from ledpartsmall.com are under two years warranty. You can send the defective products back to us for repair during the warranty period, and we will repair them and send back to you. The shipping cost is afforded by sender.

6. Good support from our English-speaking engineers. Before and after sales 7/24, you can get full support from our engineers, we are proficient in English.

1) Parts included : Waterproof steel cabinet, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables.

2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.

3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.

4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
