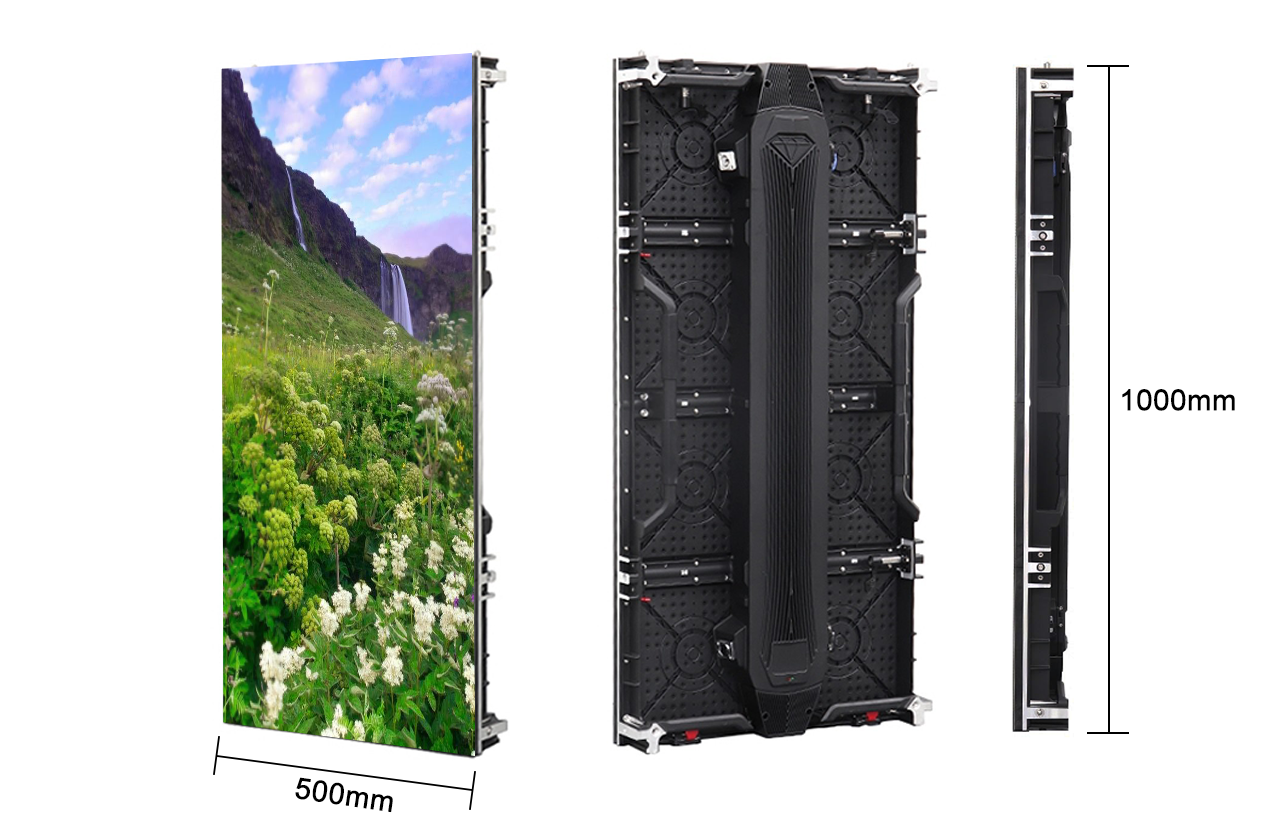

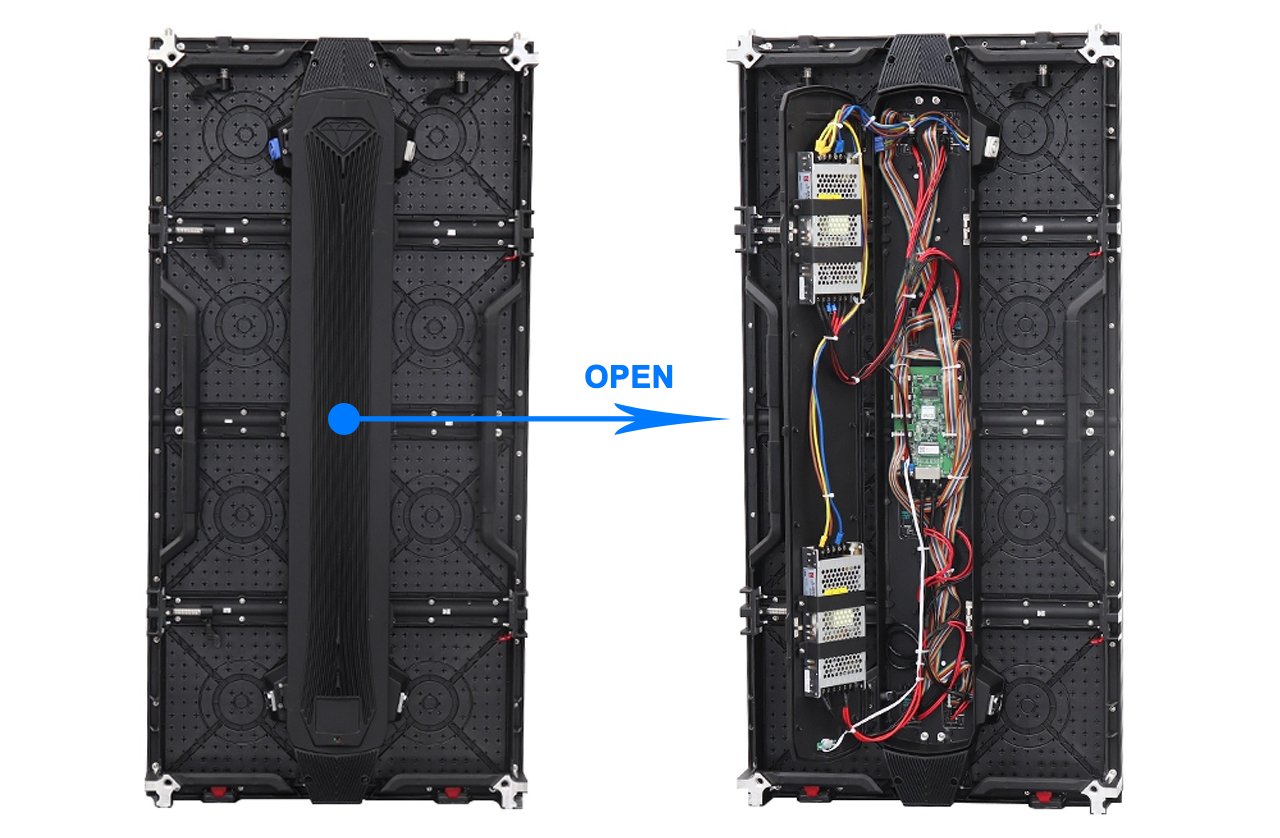

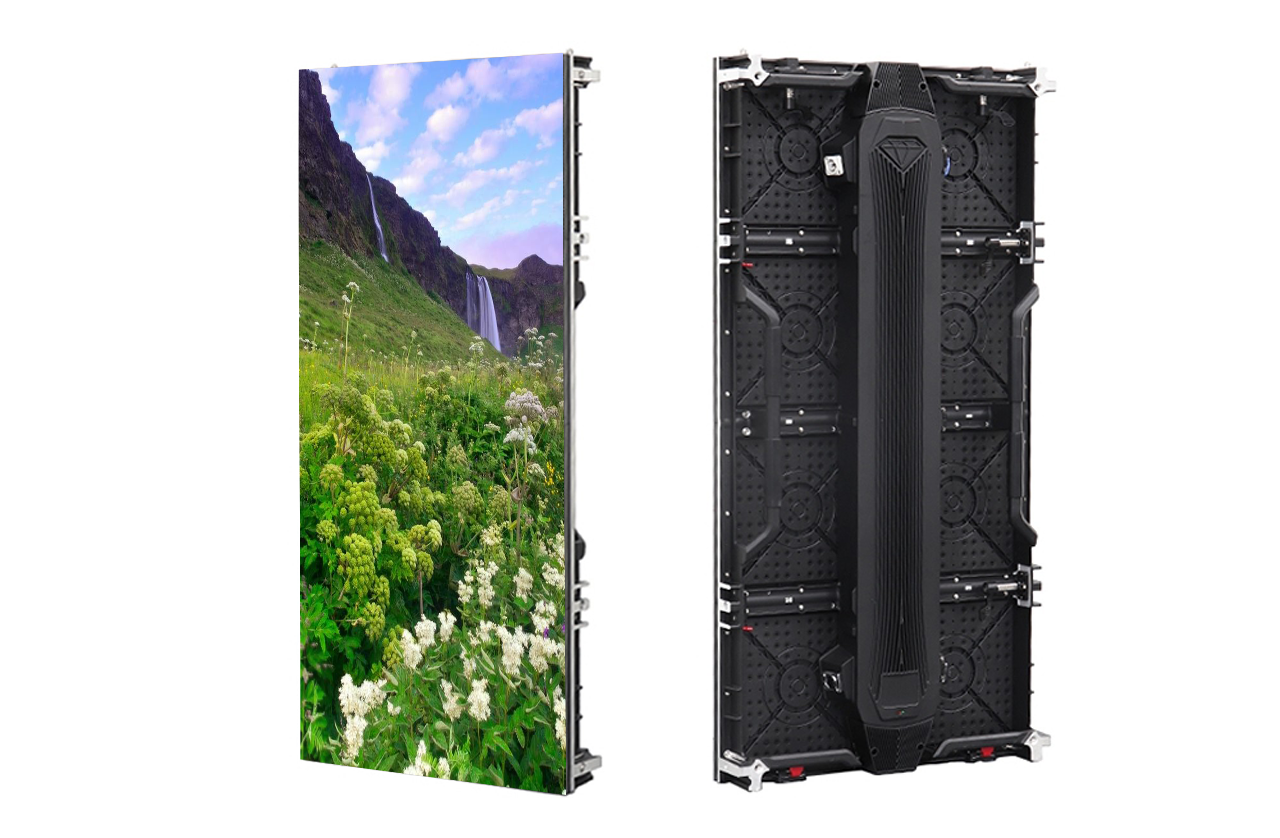

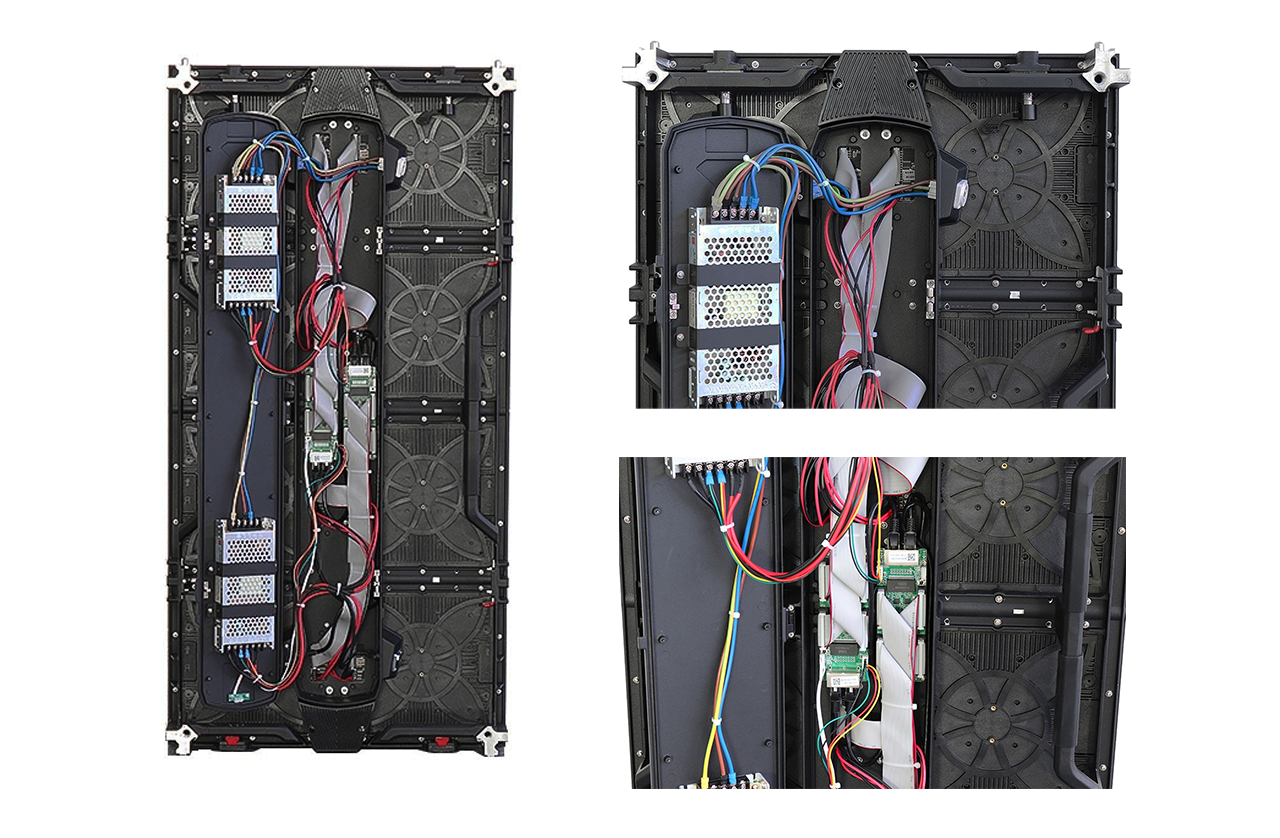

P3.91 Indoor Leasing LED Screen Panel 500X1000 Die-Cast Adaptive LED Panel

Name: P3.91 Indoor Leasing LED Screen Panel 500X1000 Die-Cast Adaptive LED Panel
Brand: Shopping LED Screen controller Video processor power supply
SKU: P3.91-IR16S-SMD2121-64x64-L500xH1000
Price: 340 USD
Availability: InStock

SKU: P3.91-IR16S-SMD2121-64x64-L500xH1000

P3.91 Indoor Leasing LED Screen Panel 500X1000 Die-Cast Adaptive LED Panel, 1920HZ refresh rate, 14bit color depth, 65,536 pixel/sqm, 14kg/cabinet, Deformable cabinet structure which can be curved and also be irregular shape.

$340.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

Description
Shipping Policy
Why Us
Notice before order

P3.91 Indoor Leasing LED Screen Panel 500X1000 Die-Cast Adaptive LED Panel Features :

1) Hot Sale 500*1000mm Die-cast aluminum Rental Cabinet. Slim and light weight.

2) Strong Fast Lock, More accurate and easy to handle, make it minimum gaps between cabinet.

3) Light weight, only 14KG for 500x1000mm cabinet.

4) ±15° angle adjustable between cabinet, enable to make into inner arc or outter arc shape even rount shape use 12 cabinet.

5) Fast lock design, good rental hanging solution.

P3.91 Indoor Leasing LED Screen Panel 500X1000 Die-Cast Adaptive LED Panel Applications :

Indoor Slim Light Weight Rental LED Display Panel

Indoor Round/Arc/Cylinder/Column Event LED Display

P3.91 Indoor Leasing LED Screen Panel 500X1000 Die-Cast Adaptive LED Panel Parameters :

LED Lamp Specification
Color	Package	Intensity		Viewing Angle	Wavelength	Testing Conditions
Red	SMD2121	70-100mcd		120°	620-625nm	25℃,20mA
Green		120-200mcd		120°	515-530nm	25℃,10mA
Blue		30-40mcd		120°	465-475nm	25℃,5mA
Module Parameter
Pixel Pitch			3.91mm
Pixel Configuration			SMD2121
Density			65,536pixels/㎡
Module Resolution			64pixel(L) *64pixel(H)
Module Dimension			250mm(L) * 250mm(H) * 18mm(D)
Driving Mode			Constant current, 1/16 duty
Module Mask			Pure black mask---high contrast screen
LED Cabinet
Module Quantity in a Cabinet			2(L) *4(H)
Cabinet Dimension			500（L）1000（H） 80(D)mm
Cabinet Resolution			128(L) * 256(H)
Cabinet Material			Die-cast aluminum;
Cabinet Weight			≈14KG
Electricity Parameter
Optical Ratings
Brightness			≥1,200 cd/㎡
Viewing Angle			120°(Horizontal)； 120°(Vertical)
Best Viewing Distance			≥4m
Gray Grade			14 bits
Display Color			4.4 trillion colors
Brightness Adjustment			100 grades by software or automatically by sensor
Operation Power			AC100-240V 50-60Hz Switchable
Max. Power Consumption			720 W/㎡
Avg. Power Consumption			240W/㎡
Control System
Frame Frequency			≥60Hz
Refresh Frequency			≥1,920Hz
Input Signal			Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance			100m(Ethernet cable); 20KM(optical fiber cable)
Support VGA Mode			800600, 1024768, 12801024, 16001200
Color Temperature			5000—9300 adjustable
Brightness Correction			Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature			-20～+60 ºC
Storage Temperature			-30～+70 ºC
Working Humidity			10%～90% RH
Lifetime			100,000 hours
MTBF			5000 hours
Continuous Operating Time			≥72 hours
Protection Grade			IP31
Out-of-Control Pixel Rate			≤0.01%
