Outdoor P4 1/8Scan SMD2525 64x32dot 256x128mm HD LED Display Screen Module, outdoor ultra high definition LED Display Module, fine image performance quality. High-end outdoor advertising LED Display Panel.

$16.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don't offer technical support or services if you used our LED modules to replace existing old LED modules.

4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

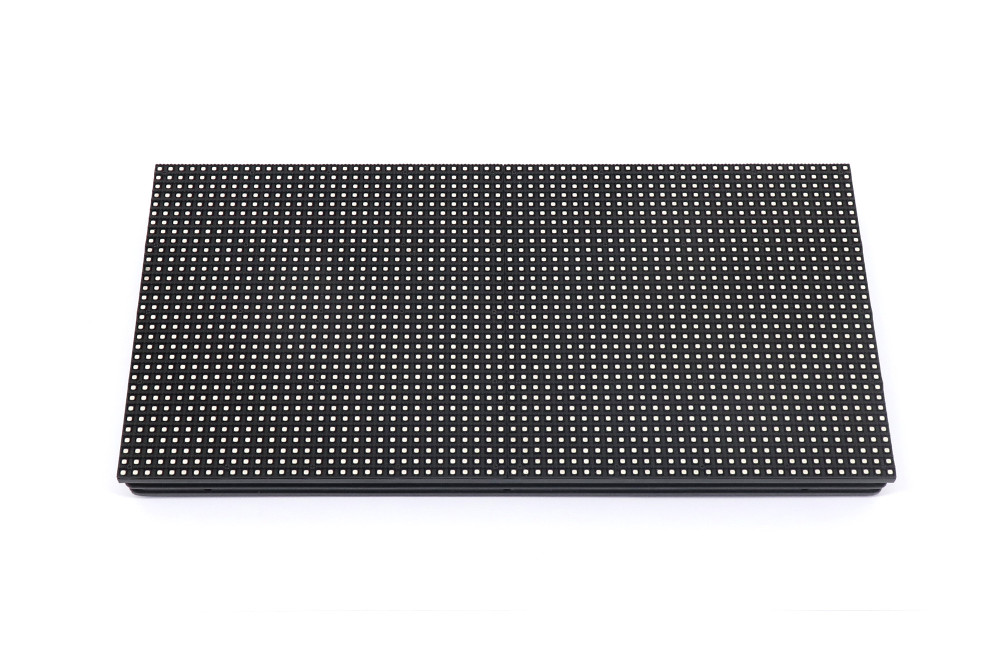

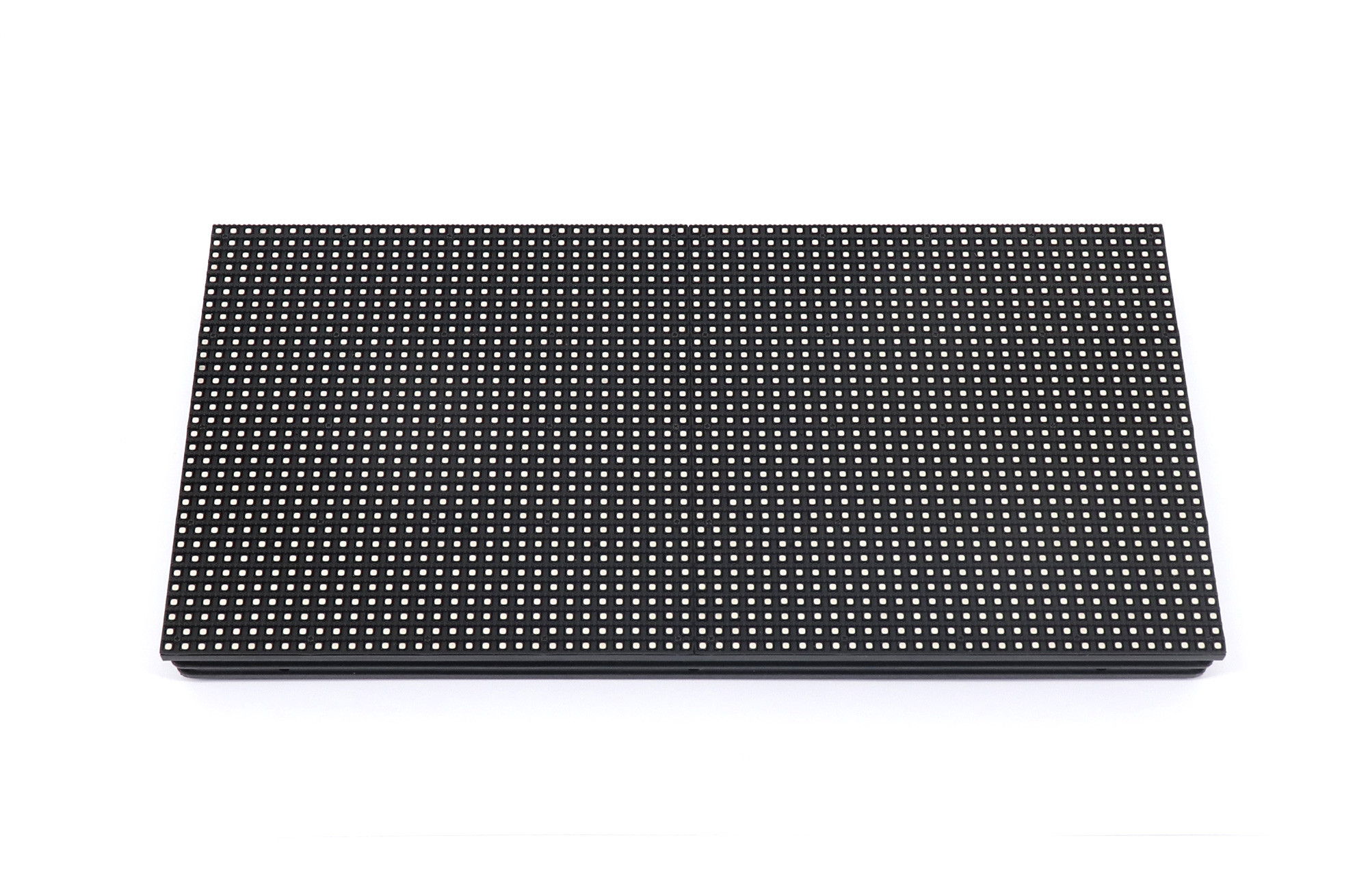

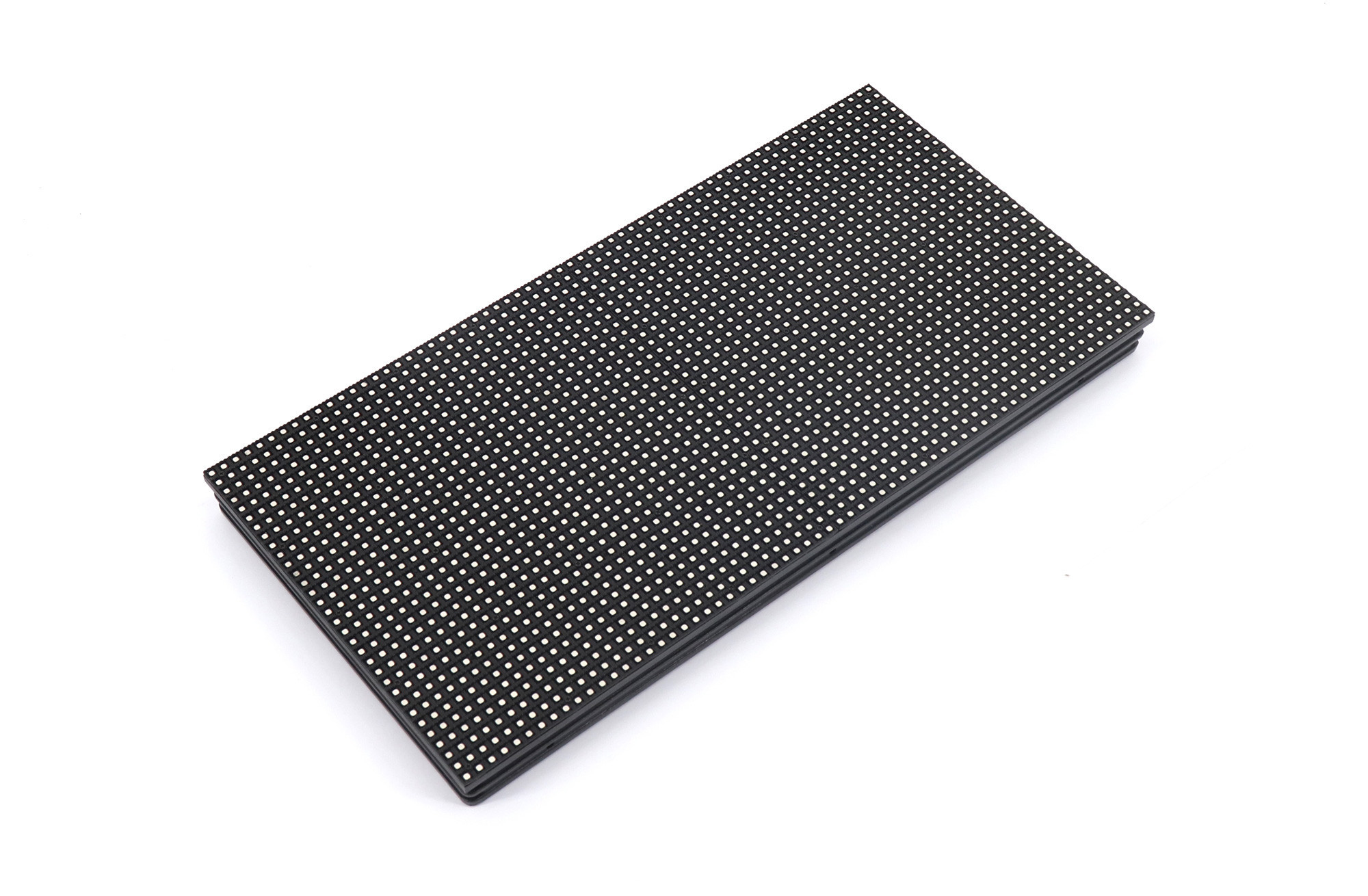

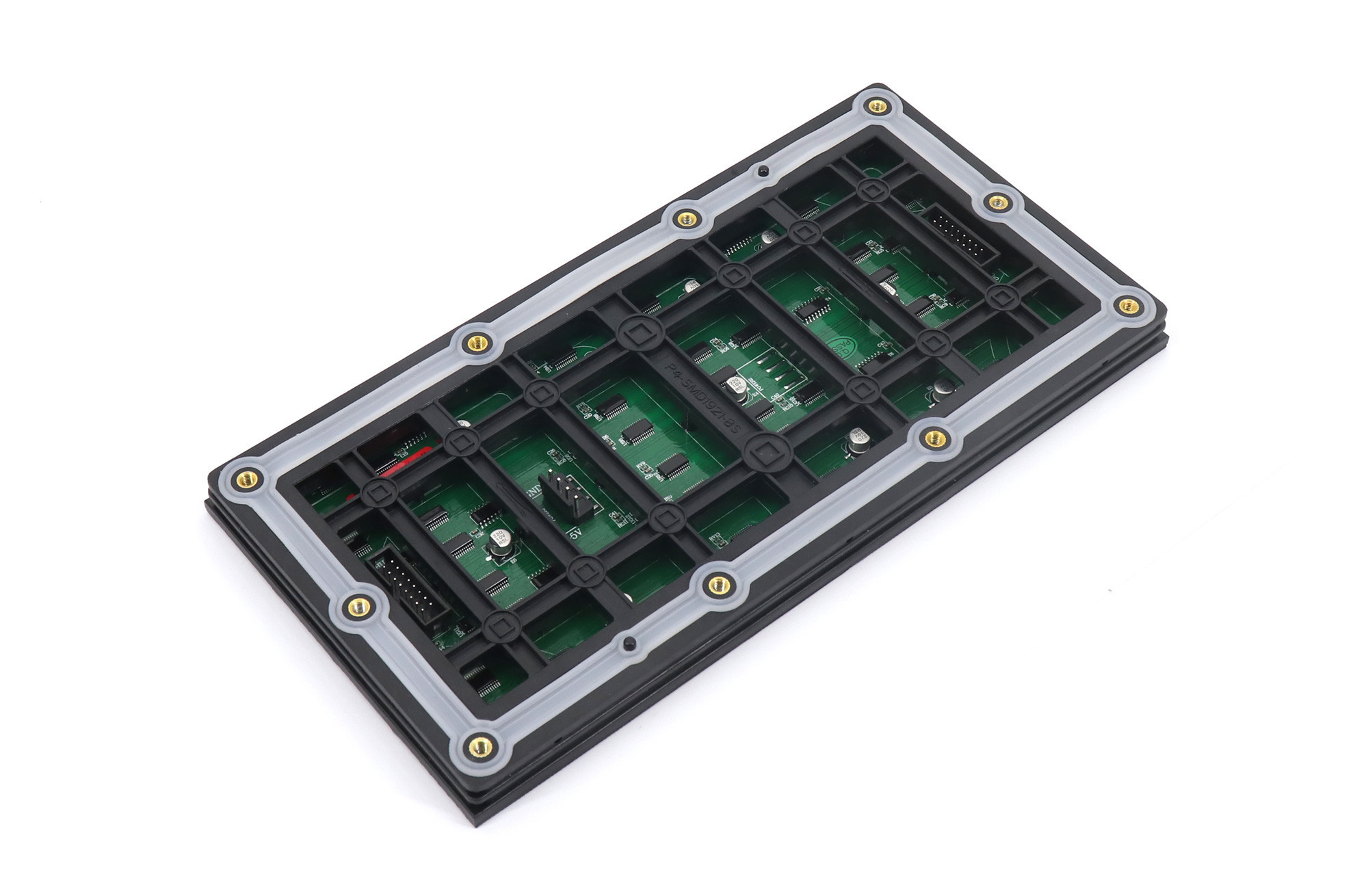

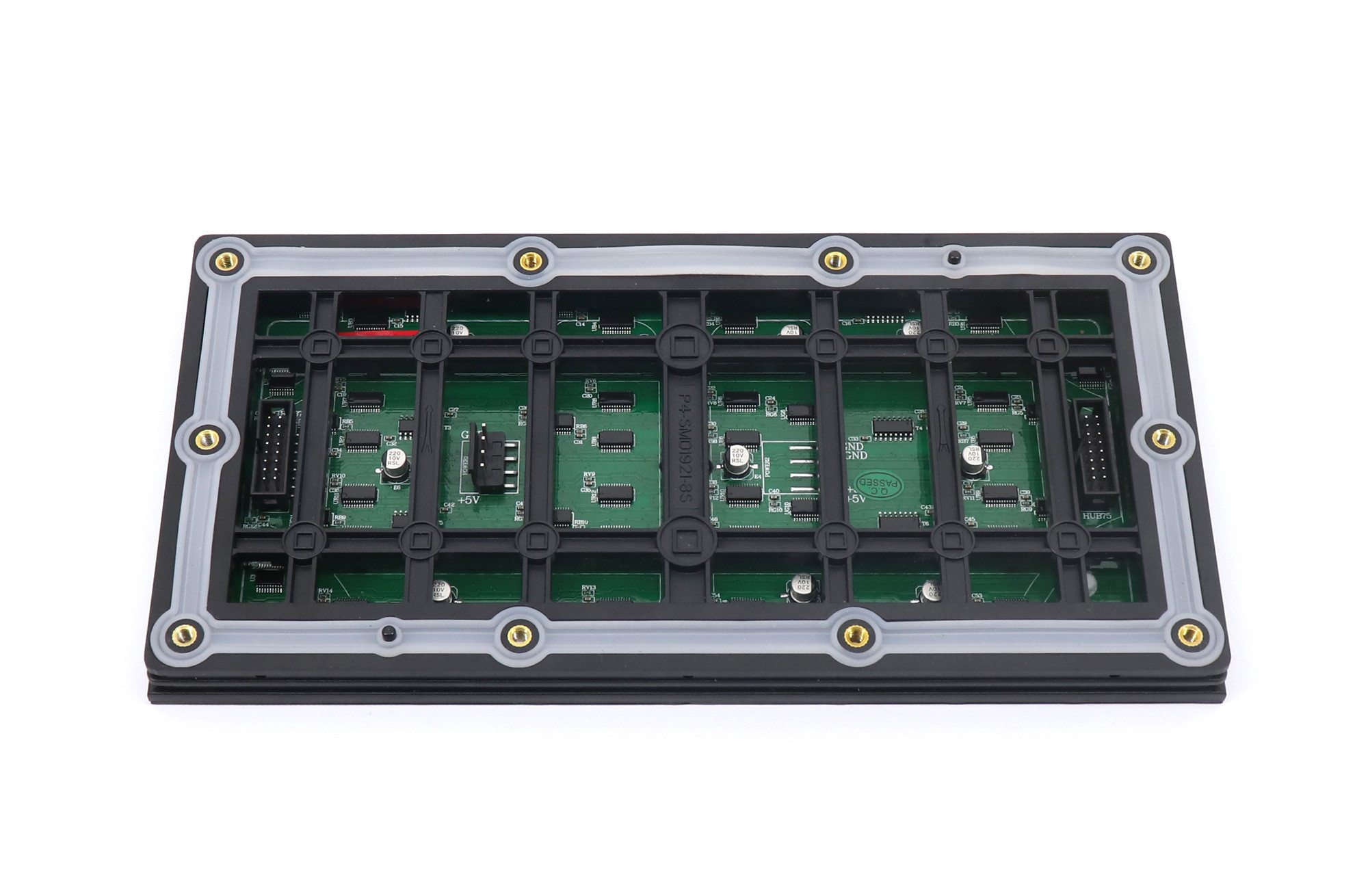

P4 Outdoor HD LED Display Screen Module 256x128mm

P4 Outdoor HD LED Display Screen Module Features:

1) Small pixel pitch 4mm for outdoor SMD LED screen, good solution for outdoor Rental LED Screen and outdoor fixed installation LED display.

2) 4mm is one of the pixel pitches of usual outdoor LED screens. Therefore, it is a very good solution for Rental LED Screen for both outdoor and indoor use.

3) Kinglight LED, high brightness, good brightness&color conformity, high reliability.

4) Reasonable PCB design with good heat radiation and achieve long life span.

P4 Outdoor HD LED Display Screen Module Parameters:

LED Lamp Specification
Color	Package	Intensity		Viewing angle	Wavelength	Testing condition
Red	SMD2525	450-600mcd		120°/120°	620-625nm	25℃,20mA
Green	SMD2525	1000-1400mcd		120°/120°	516-530nm	25℃,20mA
Blue	SMD2525	200-400mcd		120°/120°	465-475nm	25℃,20mA
Module Parameter
Pixel Pitch			4mm
Pixel configuration			SMD2525
Density			62,500 pixels/㎡(real pixel)
Module Resolution			64pixel(L) * 32pixel(H)
Module Dimension			256mm(L) * 128mm(H) * 18mm(D)
Driving Mode			Constant current, 1/8 duty
Module Mask			Pure black mask---high contrast screen
Electricity Parameter
Optical Ratings
Brightness			≥6,000 cd/㎡
Viewing Angle			120°(Horizontal); 120°(Vertical)
Best Viewing Distance			≥4m
Gray Grade			16,384 levels for each color
Display Color			4.39 Trillion Colors
Brightness Adjustment			100 grades by software or automatically by sensor
Max. Power Consumption			30W
Control System
Correction Scale Level			12bits
Frame Frequency			≥60Hz
Screen Refresh Frequency			≥1,920Hz
Gamma Correction			-5.0～5.0
Input Signal			Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance			100m(Ethernet cable); 20KM(optical fiber cable)
Support VGA Mode			800600, 1024768, 12801024, 16001200
Color Temperature			5000—9300 adjustable
Brightness Correction			Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature			-20～+60 ºC
Stored Temperature			-30～+70 ºC
Working Humidity			10%～90% RH
Lifetime			100,000 hours
MTBF			5000 hours
Continuous Working Time			≥72 hours
Protection Grade			IP65
Out of Control Pixel Rate			≤0.01%

1. Each items not including shipping cost. You can check the shipping cost after you add the goods in the shopping cart.

2. DHL express is the default method. Others express like UPS or Fedex will be adopted only when DHL is not available or not suitable at the destination; If you would like to ship the goods by sea or by air, please contact us in advance.

3. We will ship your order within 2 working days upon receiving payment. We will re-inform you another fastest delivery date if the goods is out of stock.

4. We only ship to the confirmed address from your order information. Please do confirm the delivery address on your account when you pay by PayPal or Credit Card.

5. Shipment time is depends on the carrier and excludes weekends and holidays. Transit time may slow, particularly during the holiday season.

6. Please inform us in advance if you wanna declare lower value on the shipping invoice in order to avoid or minimize the customs tax on your side. If not, we will use the orginal amount as paid.

7. If required, please assist the courier for necessary assistance concerning the customs clearance of the goods locally.

8. Please check the items in front of the courier when they arrive. If the goods are damaged, please try to obtain local courier’s documentary evidence for the breakage, In the meantime, please email us with photos or videos of the packaging and products as soon as possible.

9. If you have not received your shipment within 15 days since payment date, please contact us. We will track the shipment and get back to you ASAP.

10. The products ordered will not enjoy return and warranty if their codes are ripped off.

11. We provide two years warranty for most of our products sold (special terms are subject to final Proforma Invoice.). If there are any defects under normal use during this period, we will fix or replace for free at our factory. Customers only responsible for turn back shipping cost.
