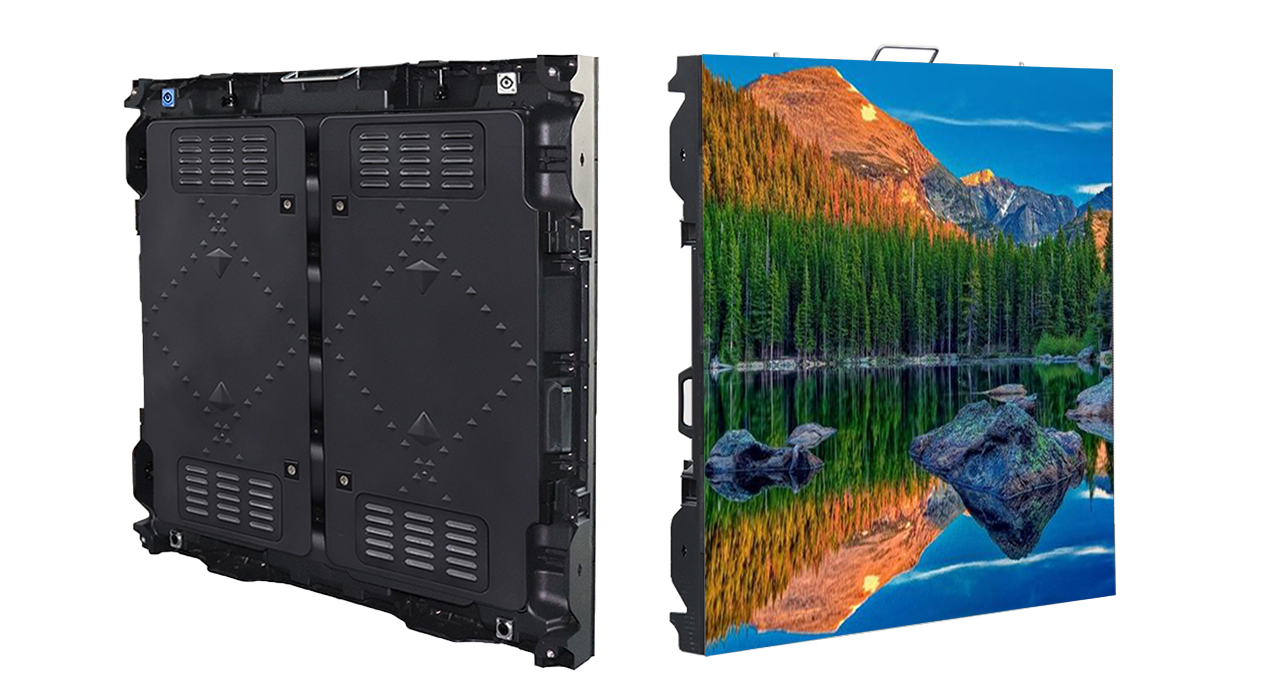

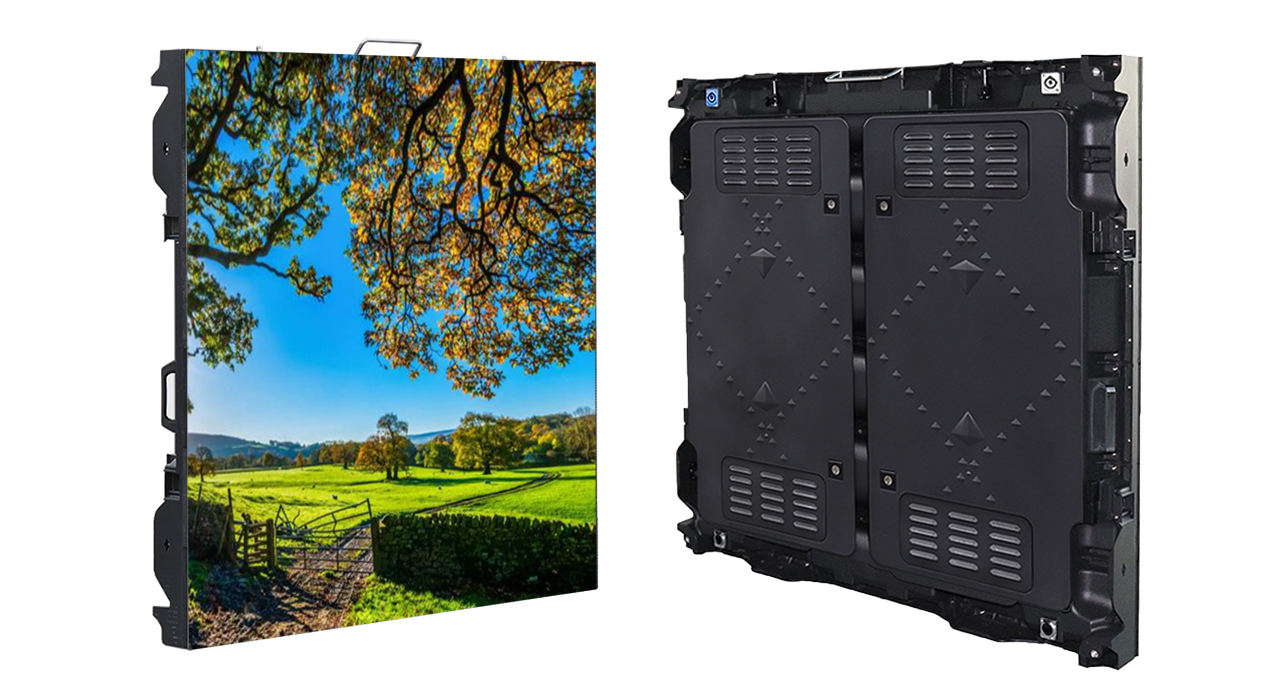

P5 Indoor SMD2121 960x960mm Die-cast Fixed installation LED Panels For Video

SKU: P5-IC16S-SMD2121-64x32-L960xH960
Model: P5-IC16S-SMD2121-64x32-L960xH960 Brightness:≥1000CD/㎡ Refresh frequency:≥1800Hz Viewing angle:120° Product description: P5 SMD2121 indoor commercial LED display board, high brightness, high refresh frequency, low attenuation, high reliability, good consistency, non-mosaic phenomenon.
$0.00 $530.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • P5 Indoor SMD2121 960x960mm Die-cast Fixed installation LED Panels For Video
  • P5 Indoor SMD2121 960x960mm Die-cast Fixed installation LED Panels For Video
  • P5 Indoor SMD2121 960x960mm Die-cast Fixed installation LED Panels For Video
  • P5 Indoor SMD2121 960x960mm Die-cast Fixed installation LED Panels For Video
  • P5 Indoor SMD2121 960x960mm Die-cast Fixed installation LED Panels For Video
  • P5 Indoor SMD2121 960x960mm Die-cast Fixed installation LED Panels For Video
  • P5 Indoor SMD2121 960x960mm Die-cast Fixed installation LED Panels For Video
  • Description
  • Shipping Policy
  • Why Us
  • Notice before order
P5 Indoor SMD2121 960x960mm Die-cast Fixed installation LED Panels For Video Features:

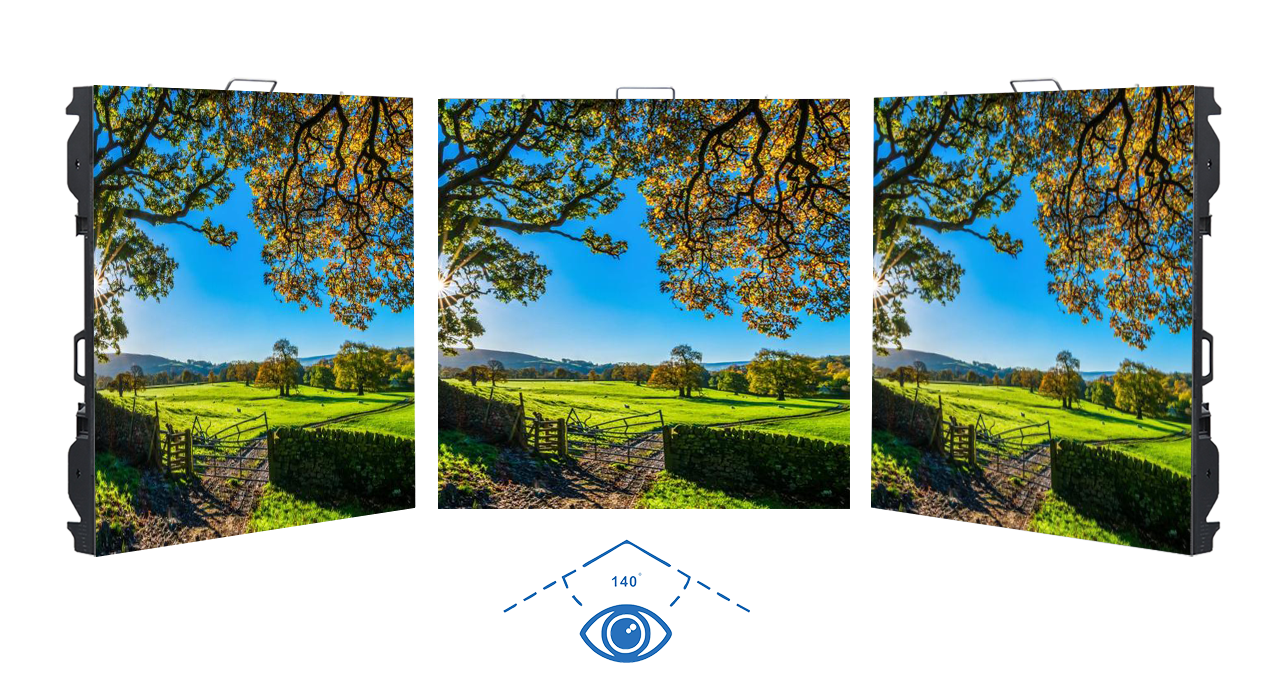

1) Wide viewing angles. Both the horizontal viewing angle and vertical viewing angle can reach 120 degrees.
2) Good color and brightness conformity. The LED chip is sorted by 2.5nm, while the chip brightness
difference is within 10%.
3) Small gaps between modules and perfect screen flatness. The gaps between modules are smaller than 1 mm and screen flatness is less than 1 mm.
4) Different cabinet styles are available, such as fixed installation style, rental hanging style, ultra-thin style。




P5 Indoor SMD2121 960x960mm Die-cast Fixed installation LED Panels For Video Applications:



indoor Rental LED Screen
Indoor commercial LED screen
Indoor stage background LED curtain




P5 Indoor SMD2121 960x960mm Die-cast Fixed installation LED Panels For Video Parameter:



LED Cabinet
Pixel Pitch 5mm
Pixel Configuration SMD2121
Density 40,000 pixels/㎡
Module Resolution 64pixel(L) *32pixel(H)

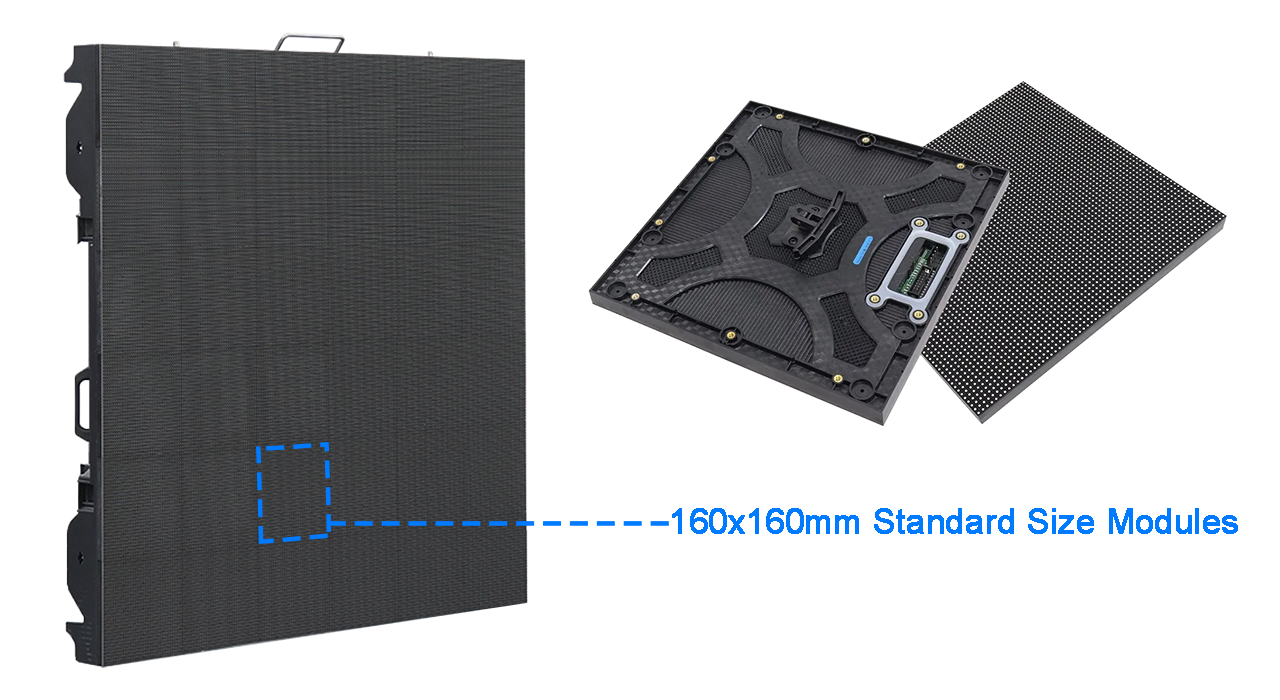

Module Dimension 320mm(L) * 160mm(H) * 18mm(D)
Driving Mode Constant current, 1/16 duty
Module Mask Pure black mask---high contrast screen
Module Quantity in a Cabinet 3(L) * 6(H)

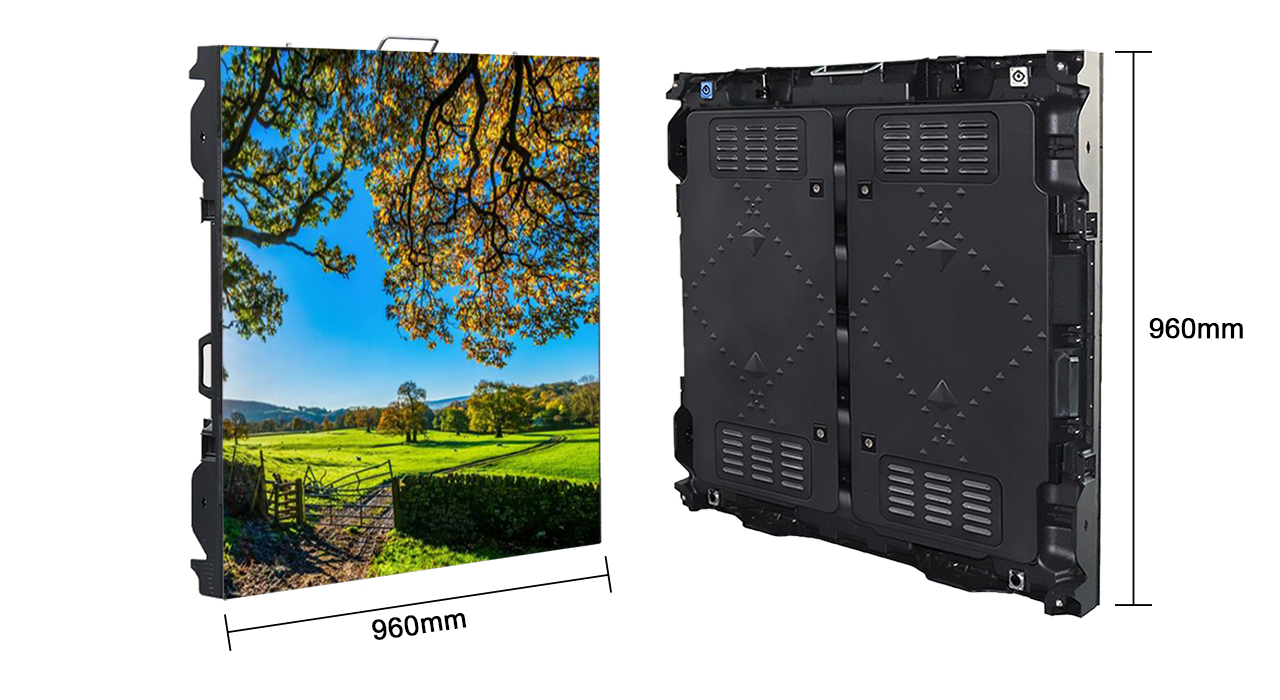

Cabinet Dimension 960(L)* 960(H)* 144(D)mm
Cabinet Resolution 240(L) * 240(H)
Cabinet Material Die-Cast magnesium alloy
Cabinet Weight ≈24KG

Electricity Parameter
Optical Ratings
Brightness ≥1,000 cd/㎡
Viewing Angle 120°(Horizontal); 120°(Vertical)
Best Viewing Distance ≥4m
Gray Grade 14 bits
Display Color 4.4 trillion Colors
Brightness Adjustment 100 grades by software or automatically by sensor
Operation Power  AC100-240V 50-60Hz  Switchable
Max. Power Consumption 680W/㎡
Avg. Power Consumption 230W/㎡
Control System
Frame Frequency ≥60Hz
Refresh Frequency ≥1,920Hz
Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance 100m(Ethernet cable);
20KM(optical fiber cable)
Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature -20~+60 ºC
Storage Temperature -30~+70 ºC
Working Humidity 10%~90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Operating Time ≥72 hours
Protection Grade IP31
Out-of-Control Pixel Rate ≤0.01%
1. Each items not including shipping cost. You can check the shipping cost after you add the goods in the shopping cart.


2. DHL express is the default method. Others express like UPS or Fedex will be adopted only when DHL is not available or not suitable at the destination; If you would like to ship the goods by sea or by air, please contact us in advance.


3. We will ship your order within 2 working days upon receiving payment. We will re-inform you another fastest delivery date if the goods is out of stock.



4. We only ship to the confirmed address from your order information. Please do confirm the delivery address on your account when you pay by PayPal or Credit Card.



5. Shipment time is depends on the carrier and excludes weekends and holidays. Transit time may slow, particularly during the holiday season.


6. Please inform us in advance if you wanna declare lower value on the shipping invoice in order to avoid or minimize the customs tax on your side. If not, we will use the orginal amount as paid.


7. If required, please assist the courier for necessary assistance concerning the customs clearance of the goods locally.


8. Please check the items in front of the courier when they arrive. If the goods are damaged, please try to obtain local courier’s documentary evidence for the breakage, In the meantime, please email us with photos or videos of the packaging and products as soon as possible.


9. If you have not received your shipment within 15 days since payment date, please contact us. We will track the shipment and get back to you ASAP.



10. The products ordered will not enjoy return and warranty if their codes are ripped off.



11. We provide two years warranty for most of our products sold (special terms are subject to final Proforma Invoice.). If there are any defects under normal use during this period, we will fix or replace for free at our factory. Customers only responsible for turn back shipping cost.

Why Buy from us?

1.Strong technical background. we are a professional LED screen manufacturer in Shenzhen China. our engineers are well experienced in all kinds of LED controller card configuration and operation and producing and using LED screens.

2.No MOQ request on all our products. You can buy even one sample to test our products before placing bulk orders.Many other suppliers have strict MOQ request,which is not convenient for buyers.

3.Quick and safe payment. You can pay by credit card through Paypal, which offers complete buyer protection and avoids having to share any of your financial information.

4.Good quality control. Our technicians inspect all the products earnestly before packaging.

5.Long warranty period. All LED controller products you buy from ledpartsmall.com are under two years warranty. You can send the defective products back to us for repair during the warranty period, and we will repair them and send back to you. The shipping cost is afforded by sender.

6. Good support from our English-speaking engineersBefore and after sales 7/24, you can get full support from our engineers, we are proficient in English.

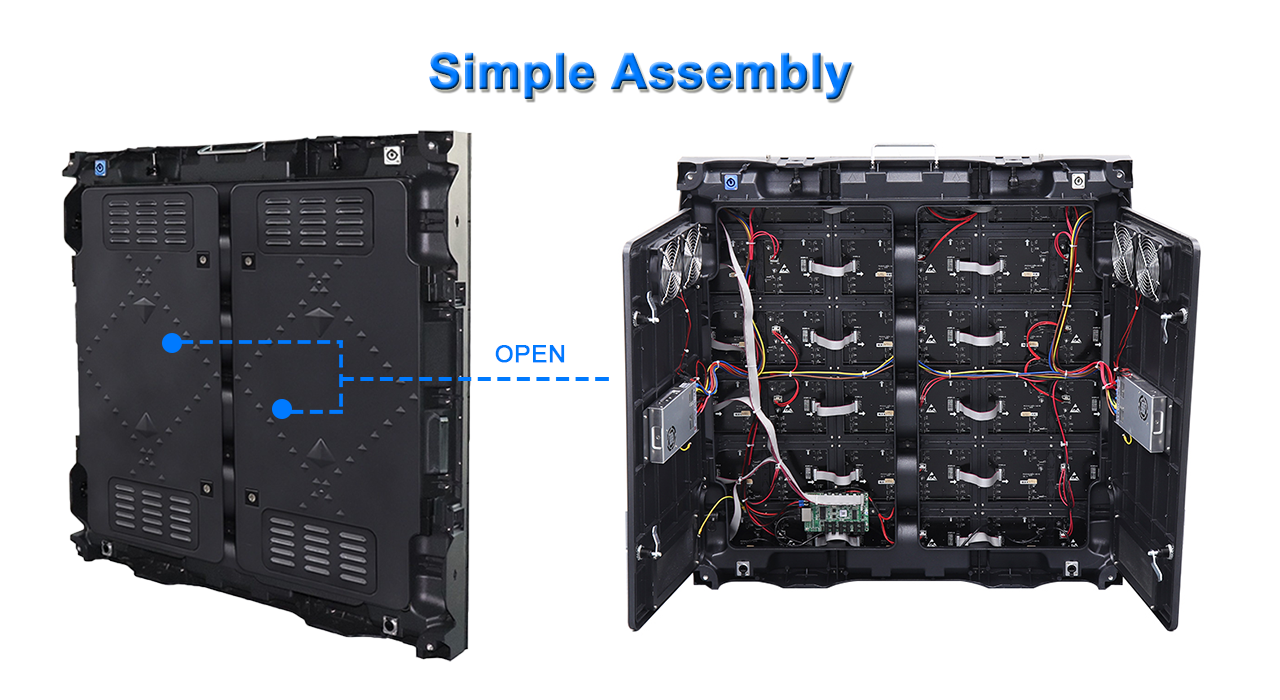

1) Parts included : Waterproof steel cabinet, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables.

2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.

3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.

4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
