Notice before order
1) Parts included: LED module, signal cable between modules, power cable between module and power supply.
2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.
3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don't offer technical support or services if you used our LED modules to replace existing old LED modules.
4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
Features of P5.33 Front Service LED Panel SMD1921 320x320mm:
1) Dual-maintenance, from both the front side and the rear side. People usually use its front maintenance function.

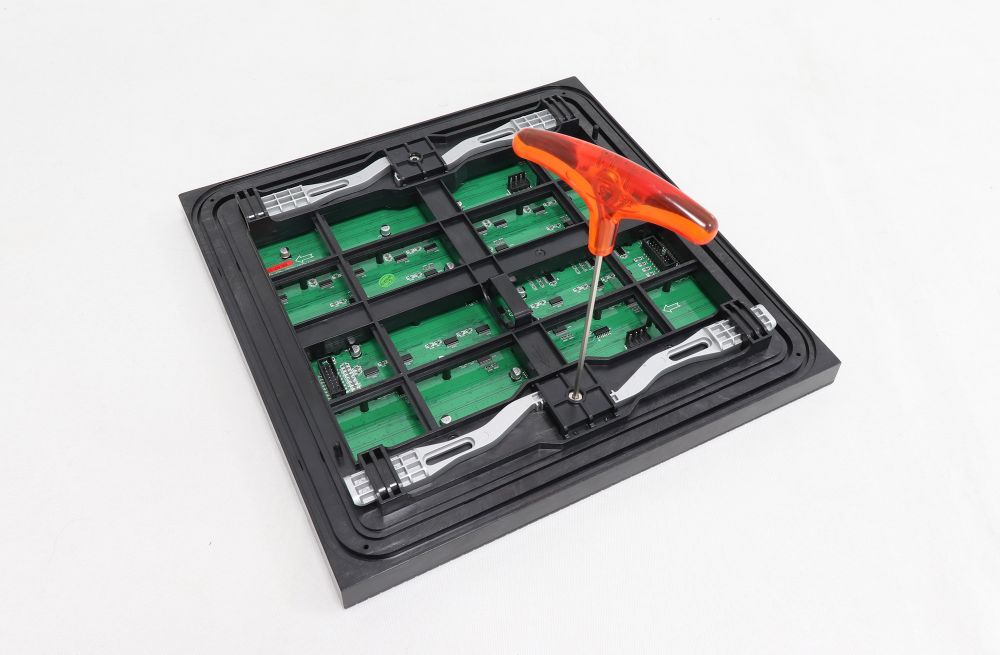

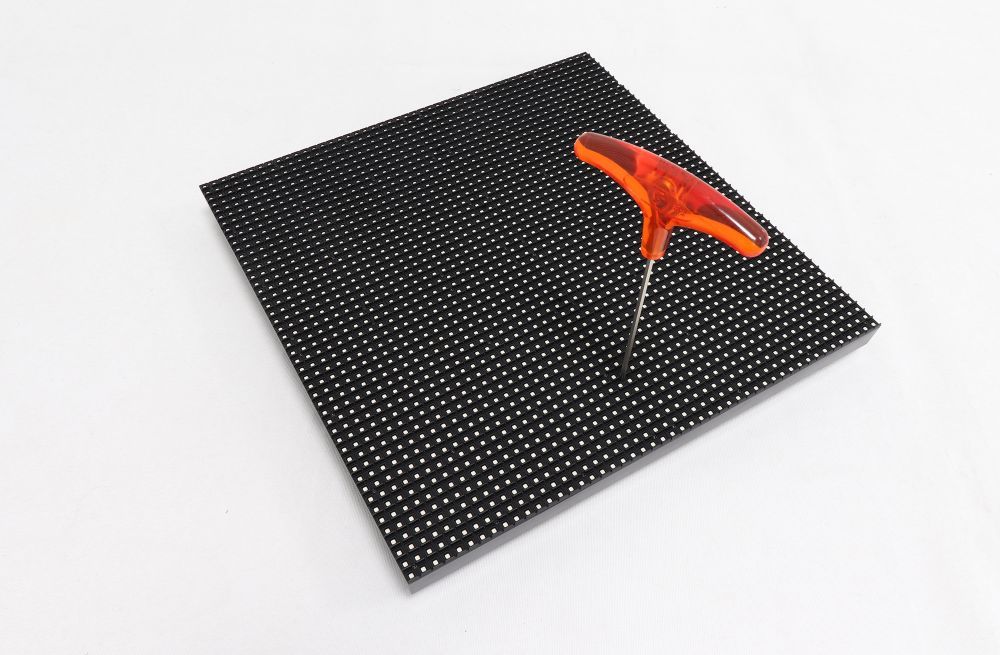

2) Easy maintenance, easy to take the modules with a hexagonal screwdriver.
3) No screws, easier to take the modules and mount the modules on the cabinet.
4) SMD5.33mm pixel pitch, suitable for both outdoor and indoor Rental LED Screens.
5) New plastic cover with new mold, smaller module gaps and better screen flatness.
6) High quality materials, Nationstar SMD1921LED, MBI driver IC, etc.
Applicable situations of P5.33 Front Service LED Panel SMD1921 320x320mm:
Outdoor LED signs requiring front service
Commercial video screens with small sizes
Double face LED signs
Small LED banner signs
Outdoor Rental LED Screen requiring fast maintenance
Parameters of P5.33 Front Service LED Panel SMD1921 320x320mm:
|
Item |
Specification |
|
LED type |
SMD1921 |
|
Pixel pitch |
5.33mm |
|
Pixel configuration |
1R1G1B |
|
Module Size |
320x320mm |
|
Module resolution |
60x60pixels |
|
Density |
35156pixels/ ㎡ |
|
Driving Mode |
1/8 duty |
|
Brightness |
≥6,000CD/ ㎡ |
|
Viewing angle |
H:120°, V:120° |
|
Best viewing distance |
5m |
|
Working voltage |
5V |
|
Power consumption |
71.5W |
|
Module weight |
2.5KG |
|
>Protection grade |
Front: IP43 |
|
Working Temperature |
-20 ～60℃ |
2. DHL express is the default method. Others express like UPS or Fedex will be adopted only when DHL is not available or not suitable at the destination; If you would like to ship the goods by sea or by air, please contact us in advance.
3. We will ship your order within 2 working days upon receiving payment. We will re-inform you another fastest delivery date if the goods is out of stock.
4. We only ship to the confirmed address from your order information. Please do confirm the delivery address on your account when you pay by PayPal or Credit Card.
5. Shipment time is depends on the carrier and excludes weekends and holidays. Transit time may slow, particularly during the holiday season.
6. Please inform us in advance if you wanna declare lower value on the shipping invoice in order to avoid or minimize the customs tax on your side. If not, we will use the orginal amount as paid.
7. If required, please assist the courier for necessary assistance concerning the customs clearance of the goods locally.
8. Please check the items in front of the courier when they arrive. If the goods are damaged, please try to obtain local courier’s documentary evidence for the breakage, In the meantime, please email us with photos or videos of the packaging and products as soon as possible.
9. If you have not received your shipment within 15 days since payment date, please contact us. We will track the shipment and get back to you ASAP.
10. The products ordered will not enjoy return and warranty if their codes are ripped off.
11. We provide two years warranty for most of our products sold (special terms are subject to final Proforma Invoice.). If there are any defects under normal use during this period, we will fix or replace for free at our factory. Customers only responsible for turn back shipping cost.
