4K x 1K output splicing resolution
Support different pixels mapping
Seamless switching between any inputs
Preview and program output separately
Cascade for sync mosaic
User- defined output resolution
Improved media files player for USB input with HD capacity
Max supported output resolution 2048×1152@60Hz/2560×1152@50Hz

$3,500.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

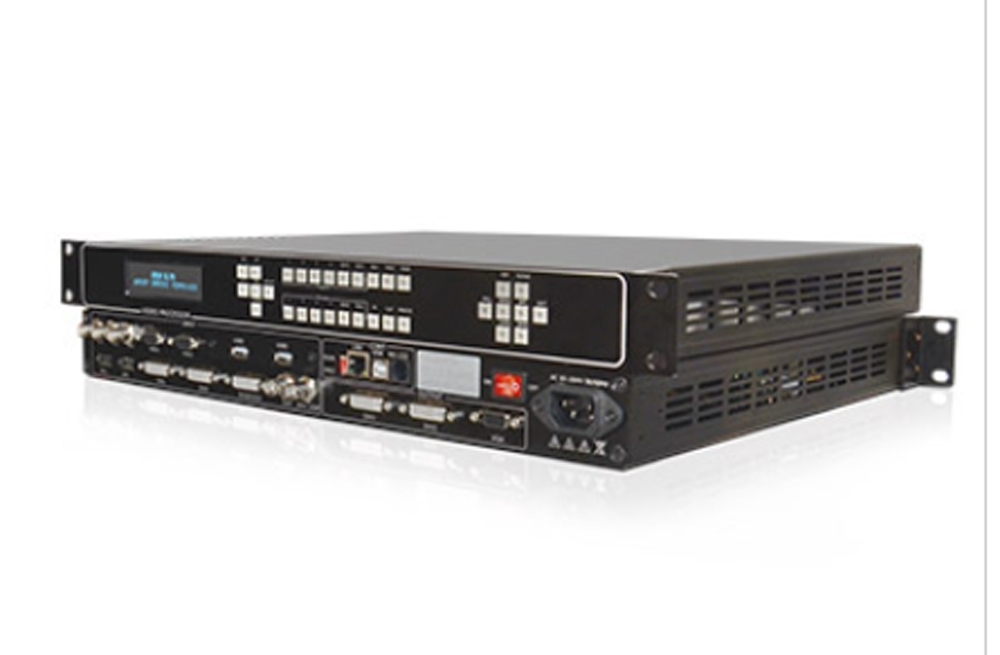

RGBLink VSP5162Pro LED Video Processor Video Scaler and Switcher Features:

VSP 5162PRO is the seamless switcher that accepts a wide variety of video signals, including analog RGB, Video, HDTV and Digital video and graphic inputs.

It combines truly seamless, glitch-free switching with advanced scaling technology producing high quality, high resolution video presentations. The VSP 5162PRO offers seamless transition effects CUT and Fade between the inputs switching, 4K×1K output splicing and quick configuration local control panel and remote control ports with free of charge Window based software and open protocol for system integration.

Compared with the old version, VSP 5162PRO improves the operation performance based on the feedback, also introduces new features which had been successful in other products, including Displayport input supports, user defined output resolution and up to 4K×1K splicing processing. All these advanced capabilities feature VSP 5162PRO the best cost to performance choice for high-end presentation environments.

RGBLink VSP5162Pro LED Video Processor Video Scaler and Switcher Parameters:

Input	3 x CVBS
	2 x VGA (YPbPr compatible)
	3 x DVI (HDMI 1.3 compatible)
	2 x Displayport
	1 x SDI (3G-SDI)
	2 x SDI/VGA/DVI/USB(SDI/VGA/DVI/USB module)
Output	2 x DVI
	1 x VGA
	1 x SDI LOOP
	2 x SDI LOOP(S module)
Operations	Local front panel operation
Operations	Remote RS-232, USB, UDP/IP control
Net Size	480mmx375mmx45mm
Package size	535mmx455mmx130mm
Net weight	3.8kg
Package weight	6.9kg
Work Temperature	0°C~40°C
Relative Humidity	10%~85%
