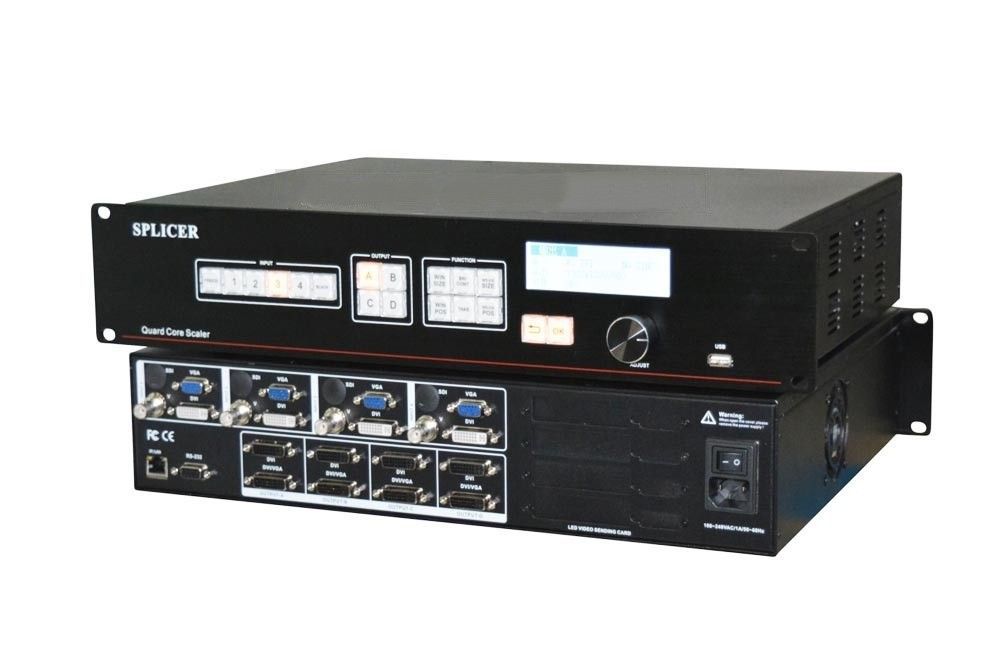

RGBSky DVP168 Multi-Window Switcher Huge LED Screen Splicer

User-defined output resolution splicer
4 Channels splicer, support more than 8K UHD display
Mixing matrix Splicer

Introduction:

1. DVP168 is a powerful 4-channel multi-input multi-graphics video processor, can be widely used
in the field of image splicing, switching and scaling market. The processor can achieve four
separate video processor or 4×4 mixing matrix, more than 8K video output. It also implements
Equal or unequal splicing, super high and super wide splicing, simplifying user settings.

2. DVP168 series LED processor support a number of input sources, with 4-channel independent
image processing engine, 4-channel fully configurable input, total 16 channels of video inputs,
including 4 DVI, 4 VGA, 4 VIDEO, 4 3G-SDI (optional). Each can receive standard resolution or
high resolution video signals, DVI and VGA input resolutions up to receive up to 1920 × 1200 @
60Hz.

3. DVP168 processor has 4 video output channels (8 DVI-I interface), each channel using two DVI
connectors, each channel can achieve 2 DVI and 1 VGA (DVI to VGA connector). user-defined
resoluton could meet a variety of high-definition performances.。

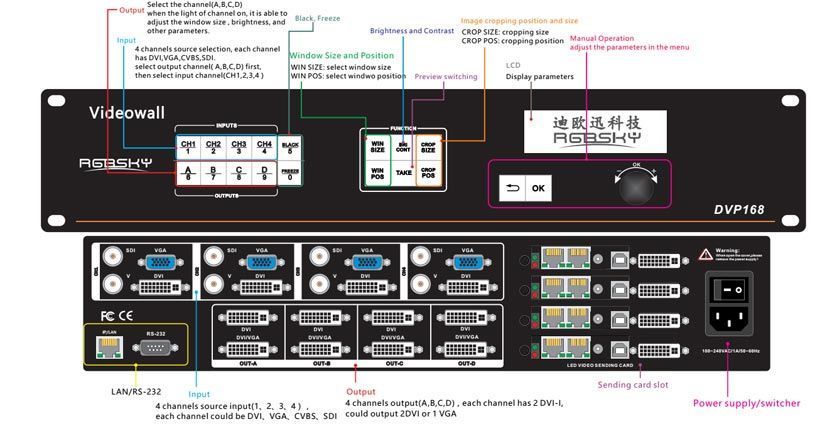

4. DVP168 processor design more humane and more easier to use. Use the front buttons and RS-
232 and IP Link can be fully setup and operation.supprot multiple inpu, 4 sending card slot, the
knob quickly adjust the relevant parameters, simplify the operation.

Features:

2.65 megapixel resolution(single)

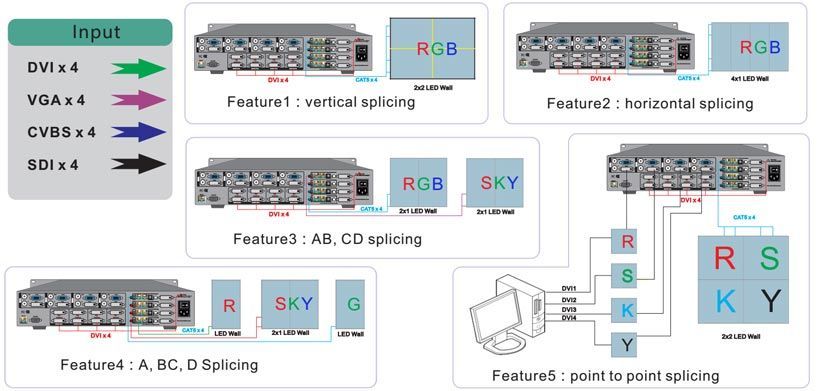

Max. splicing 15360×640 or 5120×1920 by a unit dvp168

7680×1200 piont to point splicing

User-defined EDID

Frame synchronization technology

4 different resolution output

4×4 mixing matrix switching
Max.support 16 signal input

Black or freeze screen by on button

4 SDI input(Optional)

user's scenario save and load

Multiple cascading splicing

support 8 sending card

4 internal sending card slot
