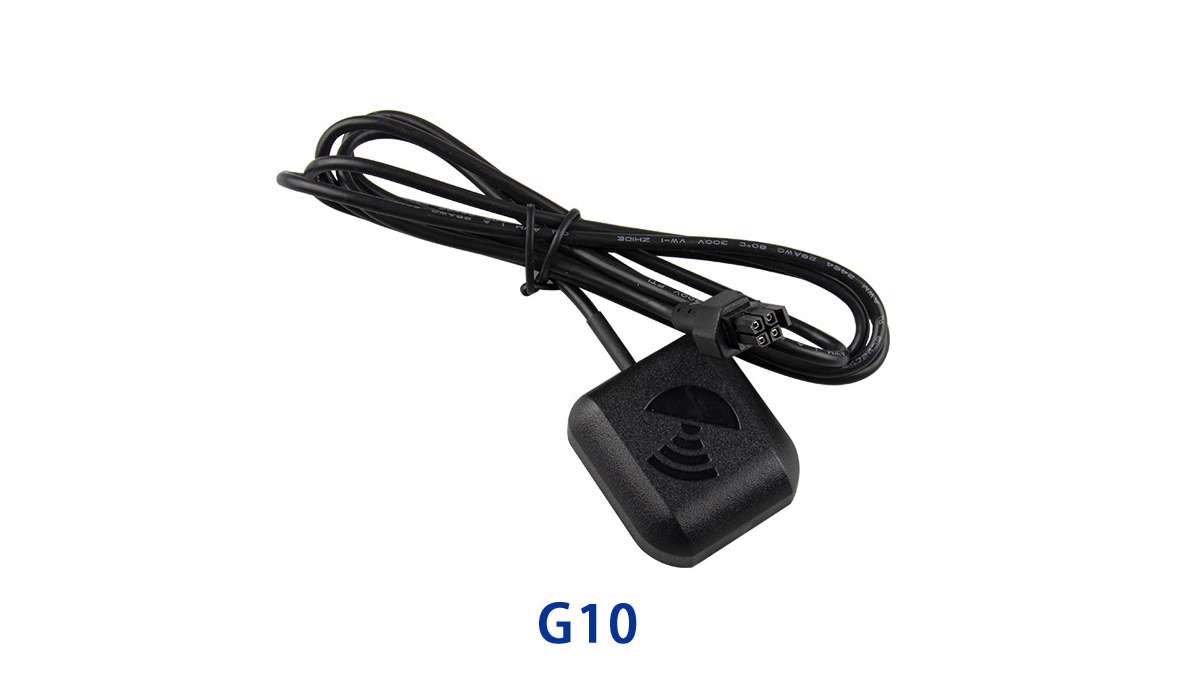

Sysolution Single GPS Location Modem G10 for Y08/Y12/Y60 Controllers for led vehicle signs

Name: Sysolution Single GPS Location Modem G10 for Y08/Y12/Y60 Controllers for led vehicle signs
Brand: Shopping LED Screen controller Video processor power supply
SKU: Sysolution G10
Price: 35 USD
Availability: InStock

SKU: Sysolution G10

G10 is a complete GPS&GLONASS&Galileo&QZSS engine module that features super sensitivity, ultra low power and small form factor. The GPS&GLONASS&Galileo& QZSS signal is applied to the antenna input of module, and a complete serial data message with position, velocity and time information is presented at the serial interface with NMEA protocol or custom protocol.

$35.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

Description
Shipping Policy
Why Us

Sysolution Single GPS Location Modem G10 Product Introduction:

Its – 165dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GPS&GLONASS&Galileo&QZSS was not possible before. The small form factor and low power consumption make the module easy to integrate into portable device like DVR,UVA,Car trackers and PNDs.

	Type		Parameter
	Main chip		MTK 3333
	Track sensitivity		-165dBm
	Time to First Fix		Extremely fast at low signal level
	Built in high LNA		YES
	Power consumption		Max [email protected]
	Protocol		NMEA-0183 compliant protocol or custom protocol
	Operating temperature		-40 to 85C
	Operating voltage		3.0V to 5.0V
	Module type		UART/TTL
	Size		45x38x13mm
	Certification		RoHS compliant(Lead-free)
Power Supply		Supply voltage:3.0V~5.0V Typical : 3.3V
Power Consumption		Acquisition:45mA @VCC=VBAT=3.3V Tracking:40mA @VCC=VBAT=3.3V Standby:2.0mA @VCC=VBAT=3.3V Backup:20uA @VBAT=3.3V
Receiver Type		Code 66 search channels, 22 synchronous tracking channels GPS&&QZSS L1 1575.42MHz C/A,GLONASS L1OF 1602MHz,GALILEO E1B/C1, GLONASS L1OF 1602MHz, SBAS: WAAS, EGNOS, MSAS, GAGAN
Sensitivity		Tracking: - 165d Bm Re-acquisition:- 156d Bm Acquisition:- 148d Bm
TTFF (EASY enabled)		Cold start :15s typ @- 130d Bm Warm start : 5s typ @- 130d Bm Hot start :1s typ @- 130d Bm
TTFF (EASY disabled)		Cold start(Autonomous):35s typ @- 130d Bm Warm start (Autonomous) :30s typ @- 130d Bm Hot start (Autonomous) :1styp @- 130d Bm
Horizontal Position Accuracy (Autonomous)		<2.5m CEP @- 130 dBm
Max Update Rate		Up to 10Hz, 1Hz by fault
Accuracy of 1PPS Signal		not enabled
Acceleration Accuracy		Without aid: 0.1m/s2
Dynamic Performance		Maximum altitude: 18,000m Maximum velocity: 515m/s Acceleration: 4G
UART Port		UART Port : TXD and RXD Supports baud rate from 4800bps to 115200bps, 9600bps by default UART port is used for NMEA output, MTK proprietary commands input and firmware upgrade
Temperature Range		Normal operation: -40°C ~ +85°C Storage temperature: -45°C ~ +125°C
Physical Characteristics		Size: 45±0.20 × 38±0.20 ×13±0.50mm Connecting line specifications:Molex 2*2Pin , L= 130CM Weight: Approx. 98g

Specification Download:
Sysolution Single GPS Location Modem G10 Specification
