With the development of LED car displays, in some areas, it needs to support wireless transmission, remote cluster control, docking with third-party platform applications, need control cards access the network and GPS positioning through Wi-Fi or 4G, and need to be controlled by mobile phone. Xixun E24 is tailor-made for these needs, leading the mobile car screen market. Make user control easier.
E24 uses Qualcomm MSM8909 platform solution. The MSM8909 processor is manufactured using the 28nmLP CMOS process, and the quad-core frequency is 1.1GHz. The memory supports 1GB + 8GB (compatible with 2GB + 16GB) LPDDR3. The chip is a highly integrated product, can support GSM, WCDMA, TD-SCDMA, EVDO, TDD-LTE, FDD-LTE and other standards.

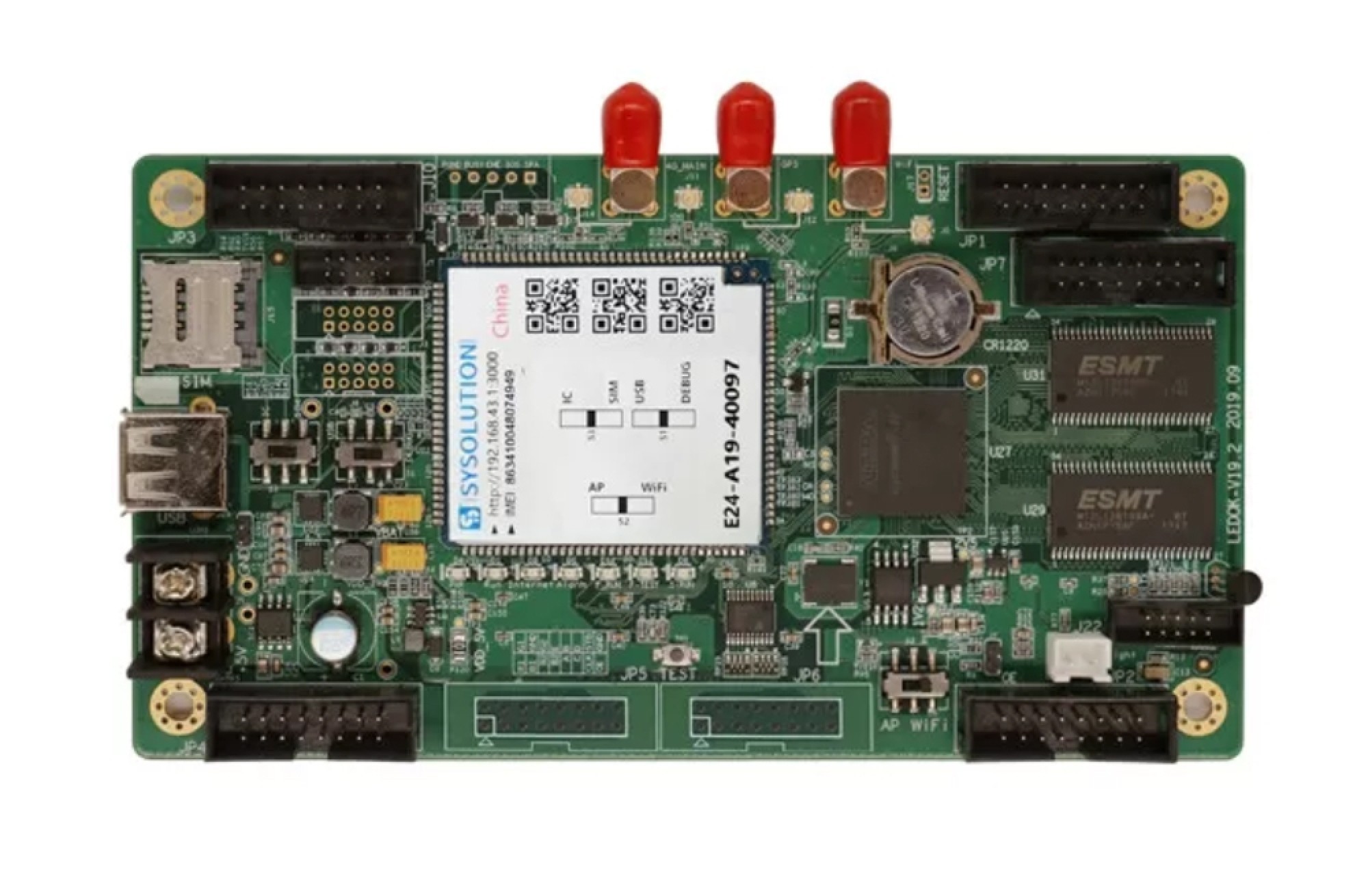

Sysolution Xixun E24 LED Control Card For Bus Rear Screen Features:

Integrated 4+ 1 HUB75E interfaces;
Dedicated for car screen, with “Passenger” and “No passenger” independent interfaces;
Onboard WiFi module, realize wireless communication, support AP mode, tation mode;
Support secondary development, support remote cluster control of cloud platform;
Built-in Web Sever, support for local web page production, support computer, iPhone, Android phone, tablet stand-alone program editing, cross-platform system fully compatible;
Support full color static to 32 scan module;
Industrial-strength onboard Flash: 8GB

Sysolution Xixun E24 LED Control Card For Bus Rear Screen Parameter:

Product Features	Description
Model	E24
Load Pixels	256*32 No support for cascade receiving card (with four 75 interfaces)
Communication	4G full Netcom, WiFi, U disk
Platform	Qualcomm MSM8909
CPU	Quad-core A7(32bit)Quad core 1.1GHz
GPU	A307 409.6MHz
System Memory	8GB Emmc+1GB LPDDR3
Operating System	Android 5.1
WiFi	IEEE 802.11b/g/n 2.4G
GPS	GPS/Beidou/Glonass
3G/4G frequency band (China)	-CH(China)
	FDD-LTE:B1/3
	TDD-LTE:B38/39/40/41
	TDSCDMA:B34/39
	WCDMA:B1/8
	CDMA 1X/EVDO:BC0
	GSM:B3/5/8
Audio	Support
Camera	Support
Weather Forecast	Support
Display content read back	Support
Configuration Software	Easyboard
