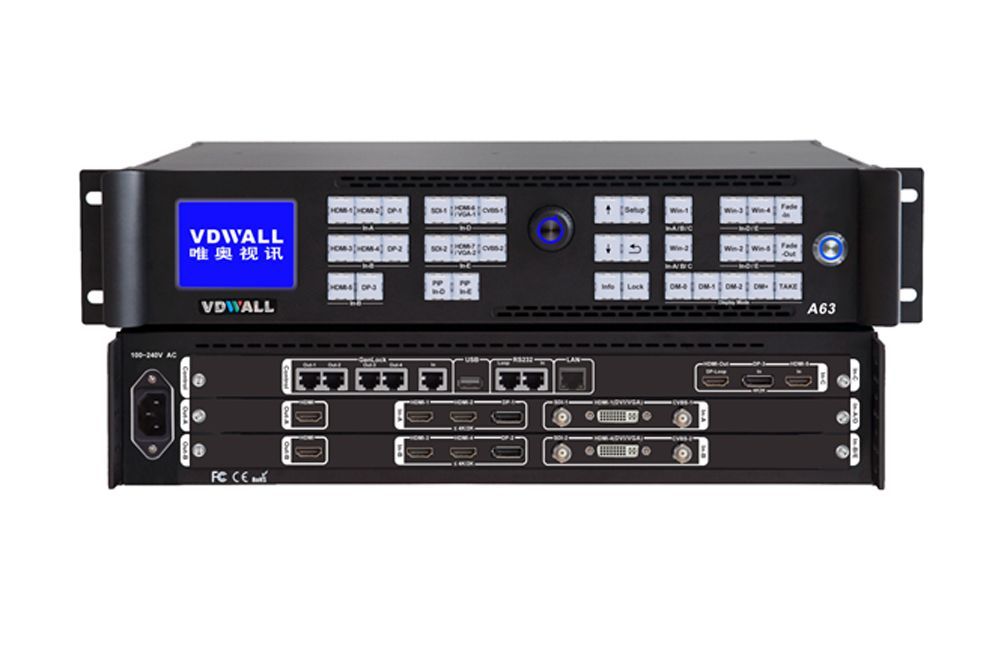

VDWALL A63 4K Multi-Win Mosaic LED Video Wall Processor with HDMI2.0 Outputs:

Faroudja® Real Color® true color image processing, 10+ Bit Faroudja® DCDI de-interlacing,aroudja® TureLife™ image augment;
2 HMDI 2.0 outputs support 3840*2160_60Hz resolution and infinite scaling;




    Total 14 video input ports, support mixed SD(Standard Definition)、HD(High Definition)、UHD（Ultra High Definition) input, includes 8*4K2K_60Hz input ports among which 5 HDMI 2.0 support HDCP 2.2、3 DP 1.2 inputs、6 HD+SD input（2 DVI input compatible with VGA input、2 3G-SDI、2 CVBS）;




Support input signal seamless、Fade in/Fade out switching;




Support maximum 4 windows 6 image display, each window support any scaling、open window、overlay display. 4 windows consist of 2 4K window and 2 2K window, 2K window supports PIP/POP function;




Each window provides 4K input signal random cropping and scaling;




4 Windows support any size and position display on LED screen, overlapped window support seamless and Fade in/Fade out switching;




Redundant display or synchronized monitoring available with 2 HDMI 2.0 output;




In switching mode, 2 HDMI 2.0 output can function as 1main output(PG)、1 Preview output. Signal transition between PG and PV support seamless or Fade in/Fade out switching In switching mode, provide 3 windows display and 3 windows preview, arbitrary setup of window size 、position and overlay order.




Support 3 Windows switching simultaneously with seamless or Fade switching;




In mosaic mode，2 HDMI 2.0 can jointly display 1 8K*2K image,single A63 can drive 2 4K controller, realize 8K*2K pixel to pixel display;




Any size and position cropping of 4K image, convenient and flexible irregular screen mosaic, no need complicated mosaic setup;




In mosaic mode, each HDMI 2.0 output support dual image display, 2 outputs total 4 independent images；




Multiple units Cascade by Genlock sync. to realize higher definition synchronized splicing for bigger LED wall. 4 units Cascade extend input to 8K4K@60Hz and output to 16K4K@60Hz;




Auto calculation aided splicing, user just set the total screen size and unit screen size&position, the device will automatically calculate and complete the splicing, intuitive and convenient；




4 windows support image frame function,frame on/off、thickness、colour is adjustable;




4 windows support input image quality adjustment, including colour、gray level、brightness in independent RGB channel with 256 level；




Support output image hot backup，Out A and out B can output same image , greatly enhance output stability；




9 preset multi-window display modes, support mode duplication and backup. No black screen or blurred screen during mode switching;




Flexible and convenient front panel control，support remote PC control via RS232/USB/LAN;




Designed for small pitches LED screen，widely applied in exhibition、station advertisement、stage performance、restaurant、lecture hall、conference room、school auditorium、church、company promotion etc.



VDWALL A63 4K Multi-Win Mosaic LED Video Wall Processor Parameter





VDWALL A63 4K Multi-Win Mosaic LED Video Wall Processor connection diagram:
