5 true 4K2K_60Hz input ports，among which 3 HDMI2.0（HDCP2.2）、2 DP1.2；3 2K combined digital+ analogue input ports, including one HDMI1.3(compatible with DVI、VGA ）、one 3G-SDI、one CVBS；
Seamless and Fade in/out signal transition；
Genuine 10-Bit image processing，color more vivid and natural，gray level transition more smooth;
4 DVI output ports，driving capability up to 9.2 million pixels. Synchronized splicing of 3840X2160 LED screen；each DVI output offers user defined resolution, maximum width or height 2160, 4 DVI outputs jointly realize 8640 pixels driving in width or height;
Any size&position setup of output image and input image cropping, greatly facilitate irregular screen splicing;
Provides saturation、gray level、brightness adjustment in individual RGB channel with 256 level；
Adaptive calculation aided splicing，user just configure size&position of each unit screen, A65 will automatically calculate and apply mosaic parameter, flexible and intuitive;
Synchronized monitoring available，connect one DVI output to 1080P LCD to monitor 4K input signal；
Genlock multiple device cascading, extend pixel to pixel display to 8K4K@60Hz or 16K2K@60Hz via 4 A65 cascading;
13 preset display modes，support mode duplication and backup;
Flexible and convenient front panel control or RS232/USB/LAN control;
Widely applied in narrow pitch screen projects, such as exhibition、station advertisement、stage performance、restaurant hall、lecture room、school auditorium、church、market promotion etc；

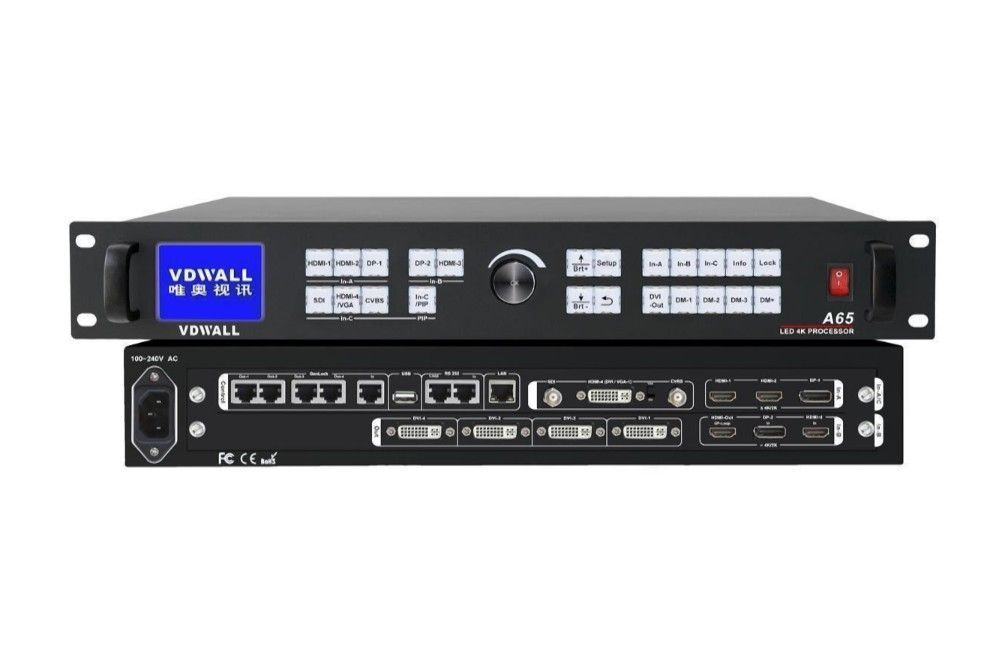

VDWALL A65 Series 4K Multi-screen Splicing Processor Parameter:

Input
Amount / Type	3×HDMI 2.0（VESA/CEA-861） 2×DP1.2（VESA） 1×CVBS 1×DVI（VESA/CEA-861）compatible with HDMI1.3a/VGA 1×SDI（SDI/HD-SDI/3G-SDI）
CVBS Format	PAL/NTSC
CVBS Impedance	1V（p_p）/ 75Ω
VGA Format	PC（VESA）	≤1920×1200_60Hz
VGA Impedance	R、G、B = 0.7 V（p_p）/ 75Ω
DVI Format	PC（VESA）	≤1920×1200_60Hz
HDMIP Format（HDCP2.2）	PC（VESA）	≤4096×2160_60Hz
	HDMI2.0（CEA-861）
DP Format（HDCP2.2）	DisplayPort1.2（VESA）	≤4096×2160_60Hz
SDI Format	SMPTE259M-C SMPTE 292M SMPTE 274M/296M SMPTE 424M/425M	480i_60Hz 576i_50Hz 720p、1080i、1080p
Input Port	CVBS: BNC/ 75Ω DVI: 24+1 DVI_D HDMI: HDMI (Type A) DP: DP port SDI: BNC/ 75Ω
Output
Type/Amount	4×DVI
DVI Format	2160X1160_50Hz、2048X1200_50Hz、1920X1200_50Hz、 1920X1080_50Hz、1680X1440_50Hz、1440X1680_50Hz、 1200X1960_50Hz、1200x1600_60Hz、1440x1440_60Hz、1600x1344_60Hz、1920×1080_60Hz、2160x960_60Hz、 User defined resolution（Maximum 2160 pixels in width or height)
Output Port	DVI：24+1 DVI_D
Others
Control Ports	RS232/USB/LAN
AC Power	100-240V/AC 50/60Hz
Power Consumption	35W
Ambient Temperature	0-45 ℃
Ambient Humidity	15-85%
Dimension	482.6(L) x 380(W) x 66.6(H)mm
Package Dimension	535(L) x 475(W) x 145(H)mm
Weight	G.Weight：8.5Kg, N.Weight：6Kg
