VDWALL LVP100U LED HD Definition Video Processor Features:
●NTSC image and video processing, you can customize soft or standard two effects
5-way input, 3-way output, audio output, to meet the application requirements of most small LED displays
●A variety of output resolutions can be selected, which perfectly fits the size of the LED display
●A variety of input DVI EDID resolutions can be selected and set to perfectly realize point-to-point display
●Seamless switching, fade in and fade out switching,
● Customize color, clarity and brightness
●Preset scenes, providing 10 preset storage spaces, quickly applying various scenes
●Manipulation method: panel buttons. The operation is flexible and convenient.
●Built-in 2 LED sending cards
◆24/7 application, high reliability and stability
VDWALL LVP100 LED High Definition Video Processor Specifications:
Specification of OutputsOthers
Specification of Inputs | ||
Quantity/Type | 1×CVBS 1×VGA(RGBHV) 1×DVI( VESA / CEA-861) 1×HDMI( VESA / CEA-861) 2×USB(USB2.0) |
|
Composite Video | PAL / NTSC | |
Video Amplitude/ Impedance |
1V (p_p) / 75Ω | |
HDMI | PC(VESA Standard)/ HDMI1.3(CEA-861) |
≤1920x1280@60Hz |
DVI | PC(VESA Standard)/ DVI1.4(CEA-861) |
≤1920x 1280@60Hz |
VGA | VGA(RGBHV Standard) | ≤1920×1080@60Hz |
CVBS | Support PAL, PAL-M/N, NTSC, SECAM format |
|
USB | USB2.0 standard | ≤1920 x 1080@60Hz |

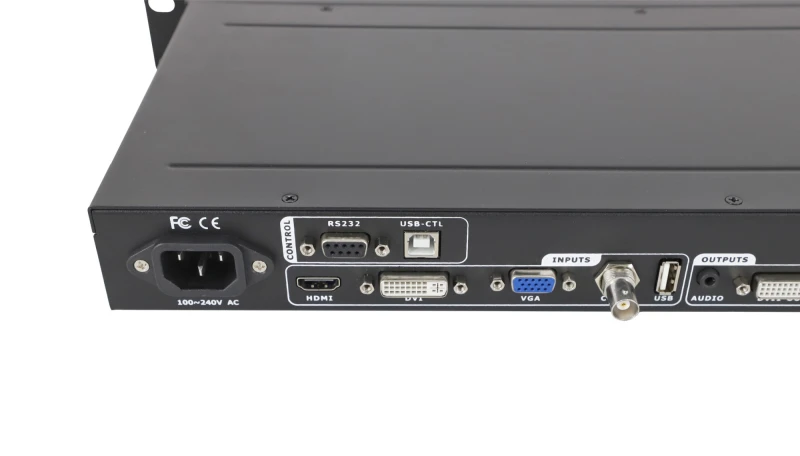

Input Terminal | CVBS:BNC VGA:15pin D_Sub ( Female ) DVI:24+1 DVI_D HDMI:HDMI Type A |
|
Output Signal | ||
Amount / Type | 2x DVI 1x AUDIO |
|
DVI Format | 1024×768@60Hz 1280×720@60Hz 1280×1024@60Hz 1600×1200@60Hz 1920×1080@60Hz 1920×1200@60Hz 1920×1280@60Hz |
|
Customized Output Resolution |
@60Hz: (2.65 million pixels) 4096*640@60Hz 3840*720@60Hz 2560*1080@60Hz 1340*2018@60Hz @30Hz: 530( 5.3 million pixels) 4096*640@30Hz 3840*720@30Hz 2560*1080@30Hz 1340*2018@30Hz |
|
AUDIO Format |
Stereo Output | |
Output Terminal | DVI OUT:24+1 DVI_D AUDIO OUT:AUDIO |
|
Others | ||
Control Port | RS232 | |
Control& Update | USB-CTL | |
Input AC Power | 100-240VAC 50/60Hz | |
Packing Size | 535 (L) x 315 (W) x 145 (H)mm | |
Weight | G.W.: 4Kg, N.W.: 2.5Kg | |
Power Consumption |
22W |
|
Ambient Temperature | 0-50℃ | |
Ambient Humidity | 15-90% | |
Standard Accessory | 1.2M Power Cable×1 0.5M DVI Cable×1 1.5M HDMI Cable×1 User Manual × 1 USB Disk×1 |
Specification Download:
VDWALL LVP100U LED HD Definition Video Processor Specification
