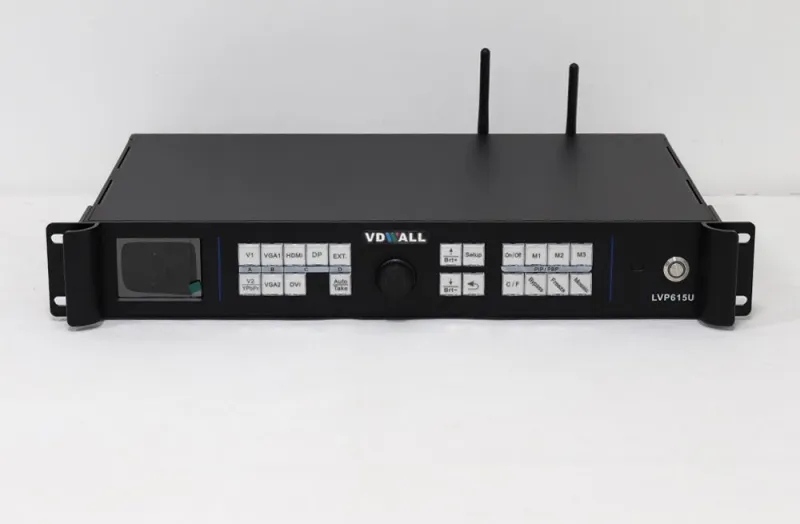

VDwall LVP615U HD LED Video Processor

Name: VDwall LVP615U HD LED Video Processor
Brand: Shopping LED Screen controller Video processor power supply
SKU: VDwall-LVP615U
Price: 615 USD
Availability: InStock

SKU: VDwall-LVP615U

1.New generation Faroudja Real Color professional LED video processor. 10+ Bit Faroudja DCDI Cinema Processing and Faroudja TureLife Video Enhancer
2. Two signal switching ways: one button to switch and pretake + Take switching
3. Seamless switching, Fade-in/Fade out & Blend switching in different input signals
4. 3 custom PIP/PBP display modes to switch by one button. Any PIP/PBP display

$615.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

Description
Shipping Policy
Why Us

VDwall LVP615U HD LED Video Processor Features:

1.New generation Faroudja Real Color professional LED video processor. 10+ Bit Faroudja DCDI Cinema Processing and Faroudja TureLife Video Enhancer

2. Two signal switching ways: one button to switch and pretake + Take switching

3. Seamless switching, Fade-in/Fade out & Blend switching in different input signals

4. 3 custom PIP/PBP display modes to switch by one button. Any PIP/PBP display

5. AIAO(Any In Any Out) function allows for displaying any capturing picture in specific area on the screen

6. User define output format to reach maximal horizontal width 3840 or vertical height 1920

7. User define DVI EDID to realize pixel-to-pixel display

8. DVI loop to install multi-unit in parallel to drive indefinite LED lattice . Frame synchronous techology, no miss alignment or delay between two adjacent image output.

9. Convenient operation by panel/PC software/ infrared remote contol/Wi-Fi

10.Smart chip 4 core 64-bit processor, multi-core 3D CPU 4K / 2K 60FPS hard decoding

11.Plug and play USB interface, fast input

12.Supports multiple audio, video and file formats

13.Intelligent WIFI networking, full platform coverage, can play network resources

14.Support mobile phone wireless operation, support Airplay DNLA Miricast compatible with iOS Android and Windows operating system

15.Mobile phone operation to support the source switch, splicing, freeze and picture in the opening and closing

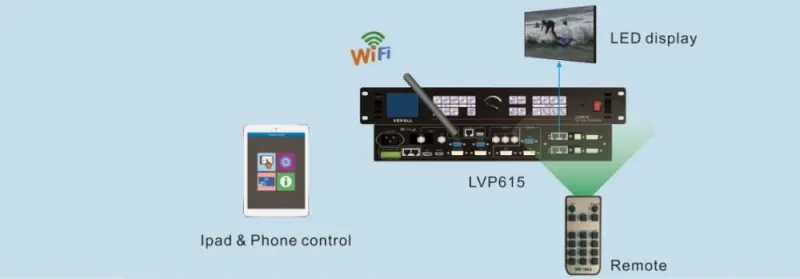

Feature one:Wireless Wi-Fi control&remote control

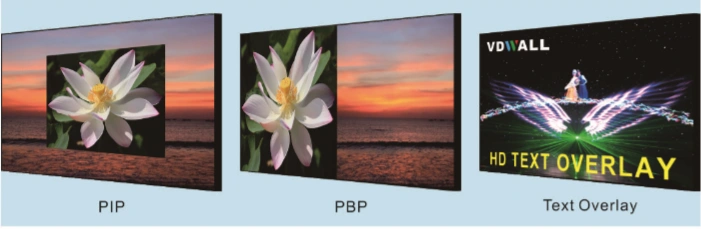

Feature two:PIP/PBP,text overlay

Feature three: Synchronic Multi-uit In Parallel

VDwall LVP615U HD LED Video Processor Specification:

Inputs
Number/type		2×Video 1×YPbPr 2×VGA（VESA） 1×DP（VESA） 1×DVI（VESA） 1×HDMI （VESA/CEA-861） 1×EXT. （2*USB+WIFI）
Video system		PAL/NTSC
Composite video amplitude /Impedance		1V（p_p）/ 75Ω
YPbPr format		SD/HD（CEA -861）
YPbPr Amplitude /Impedance		Y= 1.0V（p_p）/ 75Ω Pb= 0.35V（p_p）/ 75Ω Pr= 0.35V（p_p）/ 75Ω
VGA format		PC（VESA）		≤2048x1152 _60Hz
VGA Amplitude /Impedance		R、G、B = 0.7 V （p_p）/ 75Ω
DP format		DisplayPort1.1 （VESA）
DVI format		PC（VESA）		≤2304x1152_60Hz
		HDMI1.3 （CEA -861）
		Custom output format		width≤3840 height≤1920
HDMI format （HDCP1.3）		PC（VESA）		≤2304x1152_60Hz
		HDMI1.3 （CEA -861）		≤1920x1080p_60Hz
SDI format		SMPTE259M-C SMPTE 292M SMPTE 274M/296M SMPTE 424M/425M		480i_60Hz 576i_50Hz 720p、 1080i、 1080p
audio		2.0Vp-p/10K?

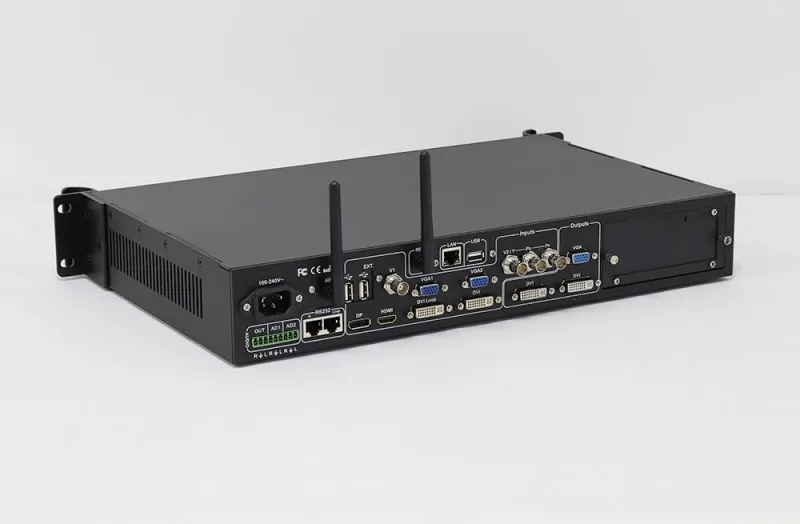

Input connectors		Video：BNC YPbPr：BNC×3 VGA：15pin D_Sub(female) DP：DisplayPort SMT female 20pin DVI：24+1 DVI_D HDMI：HDMI port A type SDI ：BNC
Outputs
Number /Type			1×VGA （RGBHV） 2×DVI
VGA/DVI resolution			1024×768_60Hz /75Hz 1080×1920_60 Hz 1200×1600_60 Hz 1280×1024_60Hz /75Hz 1366×768_60Hz 1440×900_60Hz 1536×1536_60 Hz 1600×1200_60Hz 1920×1080p_50Hz /60Hz 1920×1200_60 Hz 2048×1152_60Hz 2304×1152_60Hz 2560×816_60Hz Custom output format （maximum output horizontal 3840 pixels or vertical 1920 pixels.）
VGA Amplitude /Impedance			R、G、B = 0.7 V（p_p）/ 75Ω
Output ports			VGA OUT： 15pin D_Sub ( female) DVI OUT1： 24+1 DVI_D DVI OUT2： 24+1 DVI_D
Others
Control methods	Wireless wifi, IP/LAN,front panel button, infrared remote control, PC software. Ipad, mobile phone terminal and etc..
Input voltage	100-240VAC 50/60Hz
Maximum power consumption	≤25W
Environment temperature	0-45 ℃
Environment humidity	15-85%
size（package）	130mm（H） ×350mm（W）×520mm（L）
Weight	G.W.：5.7 Kg, N.W.：4.0 Kg

1. Each items not including shipping cost. You can check the shipping cost after you add the goods in the shopping cart.

2. DHL express is the default method. Others express like UPS or Fedex will be adopted only when DHL is not available or not suitable at the destination; If you would like to ship the goods by sea or by air, please contact us in advance.

3. We will ship your order within 2 working days upon receiving payment. We will re-inform you another fastest delivery date if the goods is out of stock.

4. We only ship to the confirmed address from your order information. Please do confirm the delivery address on your account when you pay by PayPal or Credit Card.

5. Shipment time is depends on the carrier and excludes weekends and holidays. Transit time may slow, particularly during the holiday season.

6. Please inform us in advance if you wanna declare lower value on the shipping invoice in order to avoid or minimize the customs tax on your side. If not, we will use the orginal amount as paid.

7. If required, please assist the courier for necessary assistance concerning the customs clearance of the goods locally.

8. Please check the items in front of the courier when they arrive. If the goods are damaged, please try to obtain local courier’s documentary evidence for the breakage, In the meantime, please email us with photos or videos of the packaging and products as soon as possible.

9. If you have not received your shipment within 15 days since payment date, please contact us. We will track the shipment and get back to you ASAP.

10. The products ordered will not enjoy return and warranty if their codes are ripped off.

11. We provide two years warranty for most of our products sold (special terms are subject to final Proforma Invoice.). If there are any defects under normal use during this period, we will fix or replace for free at our factory. Customers only responsible for turn back shipping cost.

Why Buy from us?

1.Strong technical background. we are a professional LED screen manufacturer in Shenzhen China. our engineers are well experienced in all kinds of LED controller card configuration and operation and producing and using LED screens.

2.No MOQ request on all our products. You can buy even one sample to test our products before placing bulk orders.Many other suppliers have strict MOQ request,which is not convenient for buyers.

3.Quick and safe payment. You can pay by credit card through Paypal, which offers complete buyer protection and avoids having to share any of your financial information.

4.Good quality control. Our technicians inspect all the products earnestly before packaging.

5.Long warranty period. All LED controller products you buy from ledpartsmall.com are under two years warranty. You can send the defective products back to us for repair during the warranty period, and we will repair them and send back to you. The shipping cost is afforded by sender.

6. Good support from our English-speaking engineers. Before and after sales 7/24, you can get full support from our engineers, we are proficient in English.
