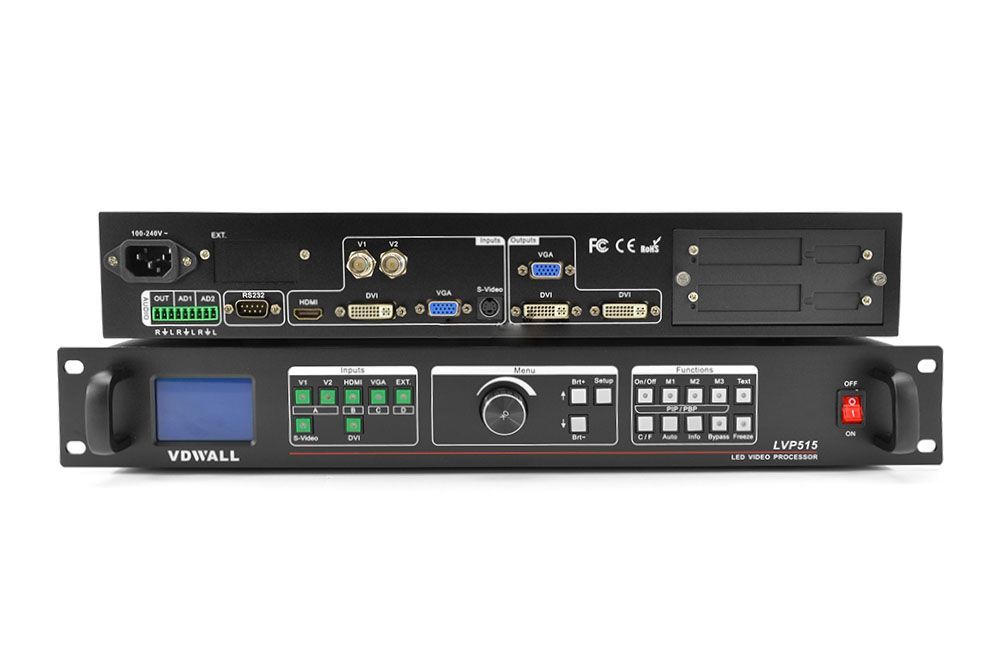

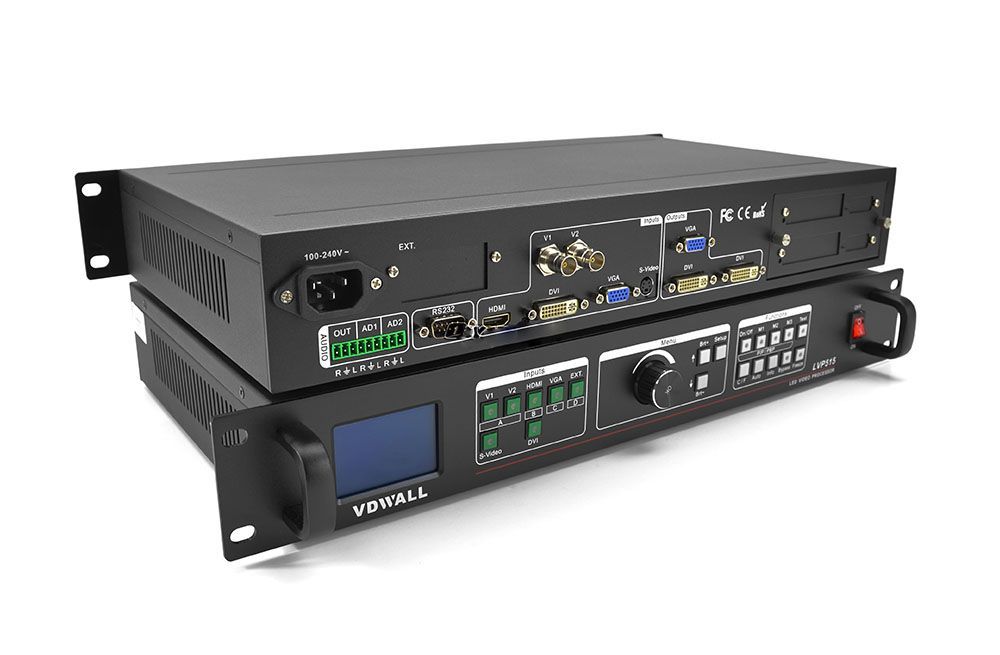

Videowall LVP515 LED Display Video Processor Features:
Product Description
10+ Bit Faroudja® DCDI Cinema Processing
New Faroudja® Real Color® processor
Faroudja® TureLifeTM Video Enhancer
Seamless switch , fade in fade out, blend.
Frame synchronous technology, no miss alignment or delay
PIP/PBP display in any size and in any place
3 custom PIP/POP display modes, which can be switched by pressing one button
User define DVI EDID to realize point-to -point display.
User define output format to reach maximal horizontal width 3840 or vertical height 1920.
2 channels can be configured to connect external stereo audio, plus HDMI and SDI audio, there are 4-channel audio for synchronous switch
2 LED Transmission Cards Built-in ability (sending cards are optional)
24/7 Application
Specifications
inputs
nums/type 2×Video
1×S-Video
1×VGA(RGBHV)
1×HDMI(VESA/CEA-861)
1×DVI(VESA)
1×EXT.(SD-SDI/HD-SDI/3G-SDI)
1V(p_p)/ 75Ω
Y:1.0V(p_p)/ 75Ω,C:0.35V(p_p)/ 75Ω
Video system PAL/NTSC
composite video
scope/ Impedance
S-Video scope/
Impedance
VGA format PC(VESA) ≤2048×1152 _60Hz
VGA scope/
Impedance
DVI format PC(VESA) ≤2304x1152_60Hz
HDMI format
(HDCP)
SDI format SMPTE259M-C
R、G、B = 0.7 V(p_p)/ 75Ω
PC(VESA) ≤2304x1152_60Hz
HDMI1.3(CEA -861) ≤1920x1080p_60Hz
SMPTE 292M
SMPTE 274M/296M
SMPTE 424M/425M
480i_60Hz
576i_50Hz
720p、1080i、1080p
audio 2.0Vp-p/10KΩ
Input ports VGA:15pin D_Sub(female)
DVI:24+1 DVI_D
YPbPr:BNC×3
Video:BNC
S-Video:4pin mini DIN(female)
SDI :BNC
outputs
Nums/type 1×VGA(RGBHV)
DVI format 1024×768_60/75Hz
2×DVI
1080×1920_60 Hz
1200×1600_60 Hz
1280×1024_60/75Hz
1366×768_60Hz
1440×900_60Hz
1536×1536_60 Hz
1600×1200_60Hz
1920×1080_50/60Hz
1920×1200_60 Hz
2048×1152_60Hz
2304×1152_60Hz
2560×816_60Hz
Custom output format( horizontal pixel maximal 3840
or vertical 1920)
R、G、B = 0.7 V(p_p)/ 75Ω
VGA
scope/impedance
Output ports VGA OUT:15pin D_Sub(female)
DVI OUT1:24+5 DVI_D
DVI OUT2:24+1 DVI_D
others
control Panel button or pc software
Input voltage 100-240VAC 50/60Hz
power ≤20W
temperature 5-40 °C
humidity 15-85%
Size(packing) 145mm(height)×370mm(width)×535mm(length)
Weight(kg) Gross weight:5.0Kg, Net weight:3.2Kg
Dimensions
Connections
1.High definition DVI Output(2304*1152); Support 66 m2 of P5 LED screen
2.Ample input ports for diverse requirements(2*AV for DVD, Camera 1*HDMI 1*VGA
1DVI for PC、laptop and HD DVD; YPbPr for HD DVD; S-video for DVD)
3.SDI In and SDI Loop. We could connect HD-SDI, 3G-SDI from live camera or other
devices with SDI signal output.
What’s this for?
It’s the suitable choice for rental stage、TV Studio、Large scale theater and
high-ending conference.
