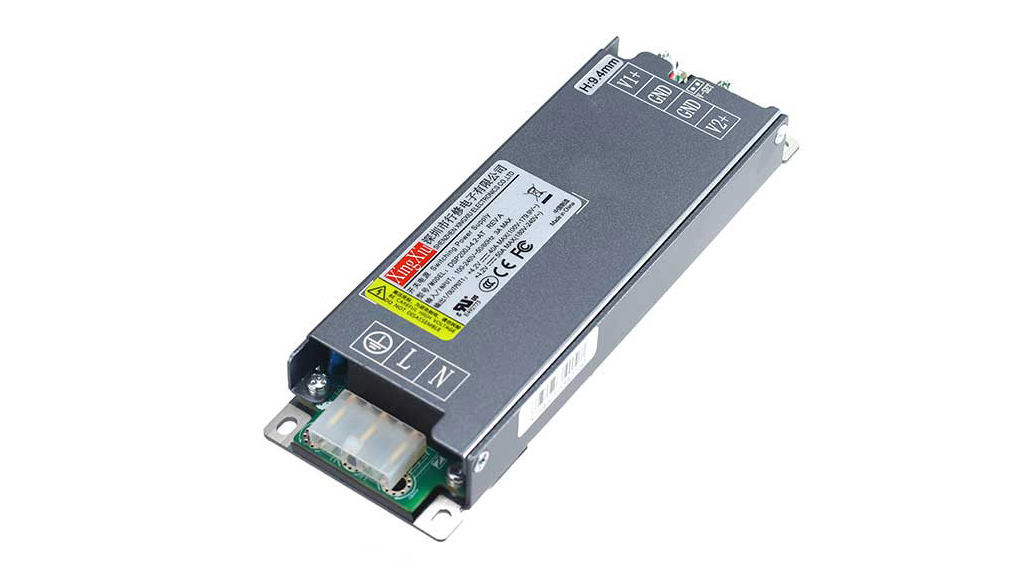

DSP200J-4.2-AT switching power is a high-performance, wide-voltage power conversion device ,designed to convert standard AC mains power (100VAC-240VAC) into a stable 4.2V DC output, this unit is engineered for reliability and efficiency.
Utilizing advanced LLC control technology, the DSP200J-4.2-AT ensures precise voltage regulation and complete input/output isolation. Its robust design makes it an ideal power solution for a diverse range of applications, including LED displays, security monitoring systems, industrial equipment, military-industrial projects, telecommunications, and lighting displays.
Key Features & Benefits
Advanced LLC Technology: Provides high efficiency, precise control, and superior reliability compared to traditional power supplies.
Wide Input Range: Capable of operating within a universal voltage range of 90Vac to 264Vac, making it suitable for global use.
High Power Density: Delivers a rated power of 210W in a compact form factor.
Comprehensive Protection: Equipped with safeguards against over-current, short circuits, open loops, and over-temperature conditions to protect both the power supply and the connected load.
Global Safety Compliance: Designed to meet international safety and EMC standards, including CE, UL, FCC, CB, and CCC.
Specification
Input Voltage: 90Vac ~ 264Vac (Normal: 100-240Vac)
Frequency Range: 47Hz – 63Hz
Output Voltage: 4.2V DC (Adjustable to 4.6V via jumper)
Rated Current: 50A (Max Peak Current: 55A)
Rated Power: 210W
Efficiency: 89% Typ @ 230Vac (Full Load)
Power Factor: > 0.95 @ 230Vac (Full Load)
Output Ripple: 300mVp-p (Max)
Size: 150*50*19mm
Weight: 250G
