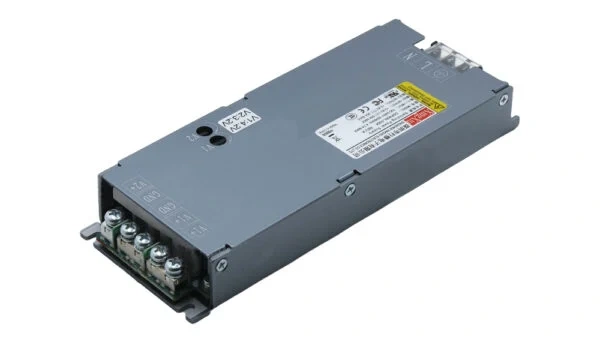

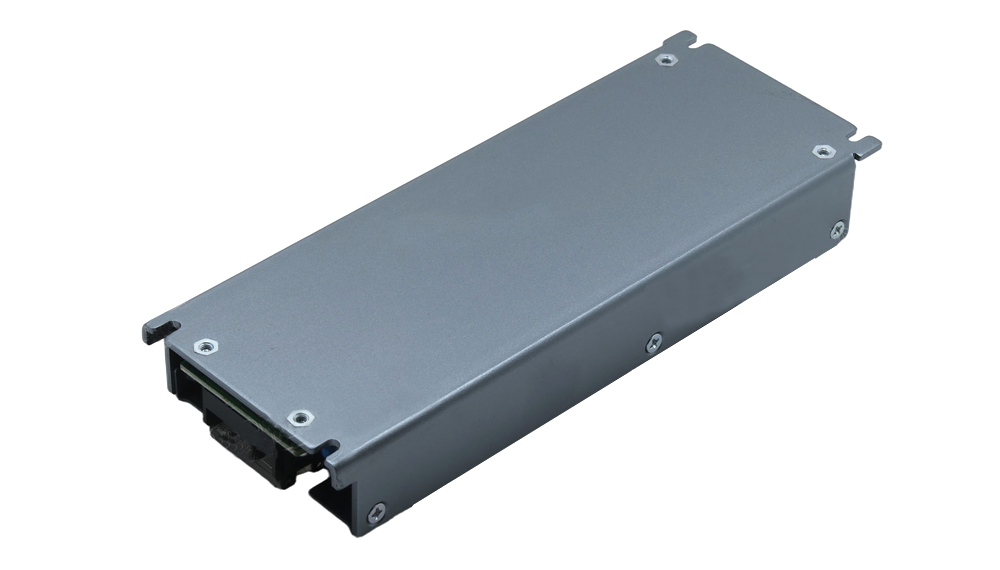

The XingXiu DSP400L-0304 power supply converts AC mains input into two regulated DC output channels: 3.8VDC and 2.8VDC. It is rated for 307W normal output power and is intended for compatible LED display systems and industrial electronic equipment.
The DSP400L-0304 uses an LLC conversion topology with precise control and input-to-output isolation. Its wide 90-264VAC input range supports common 100-240VAC installations, while the dual low-voltage outputs serve equipment designed specifically for 3.8V and 2.8V rails.
This is not a universal replacement for a standard 5V LED power supply. Confirm the required voltage rails, connector layout, power demand, mounting space, and cooling conditions before ordering or installing it.
| Manufacturer / model | XingXiu DSP400L-0304 |
|---|---|
| Input voltage range | 90-264VAC |
| Normal input range | 100-240VAC |
| Input frequency | 47-63Hz |
| Maximum input current | 4.7A max at 100VAC |
| Cold-start inrush current | Less than 60A at 230V |
| DC output channels | 3.8VDC and 2.8VDC |
| Normal output power | 307W |
| Typical efficiency | 85% at 230VAC, full load |
| Power factor | Greater than 0.95 at 230VAC |
| Leakage current | Less than 1mA at 230VAC input |
| Input fuse | T6.3AL / 250VAC |
| Cooling method | Ventilation cooling |
| Dimensions | 180 x 68 x 26 mm |
| Certifications listed | CE, UL, FCC, CB |
