1) Video hardware decoding to make sure smoothly displaying, while M-series and A-series controller supports software decoding
2) Support 4096 gray level for red, green and blue
3)One card support maximum pixels 640×128 pixels, fixed pixels
4) One sending card supports more than one screen but each screen has the same size, to realize display same content in the same time
5) Supporting read back HCP4 file from led controller
6) Intelligent connection, that is exchange receiving cards in one screen without setup again, the receiving cards will display the content after exchanging
7)M-series and A-series controller only support 1, 2, 4, 8, 16 scan types, while K-series support random scan types within 1/16 scan, like 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 scan types
8) Support driver IC with PWM, such as MBI5041
9) One sending card can connect one HUB, will save one piece of receiving card
10) It has same installation holes with synchronous controller, so it is easy to change controller
11) Totally new design, setup controller through software in PC

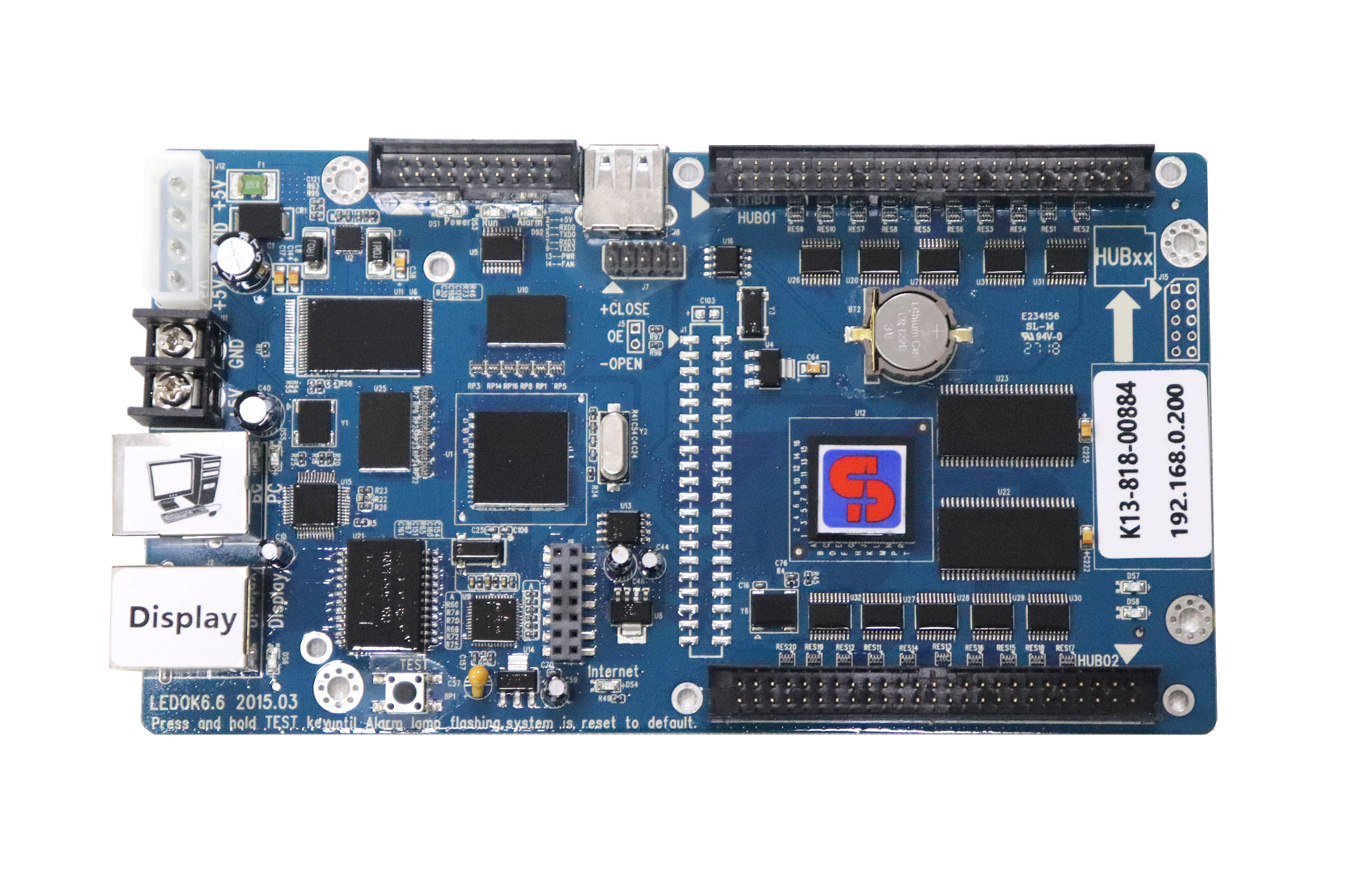

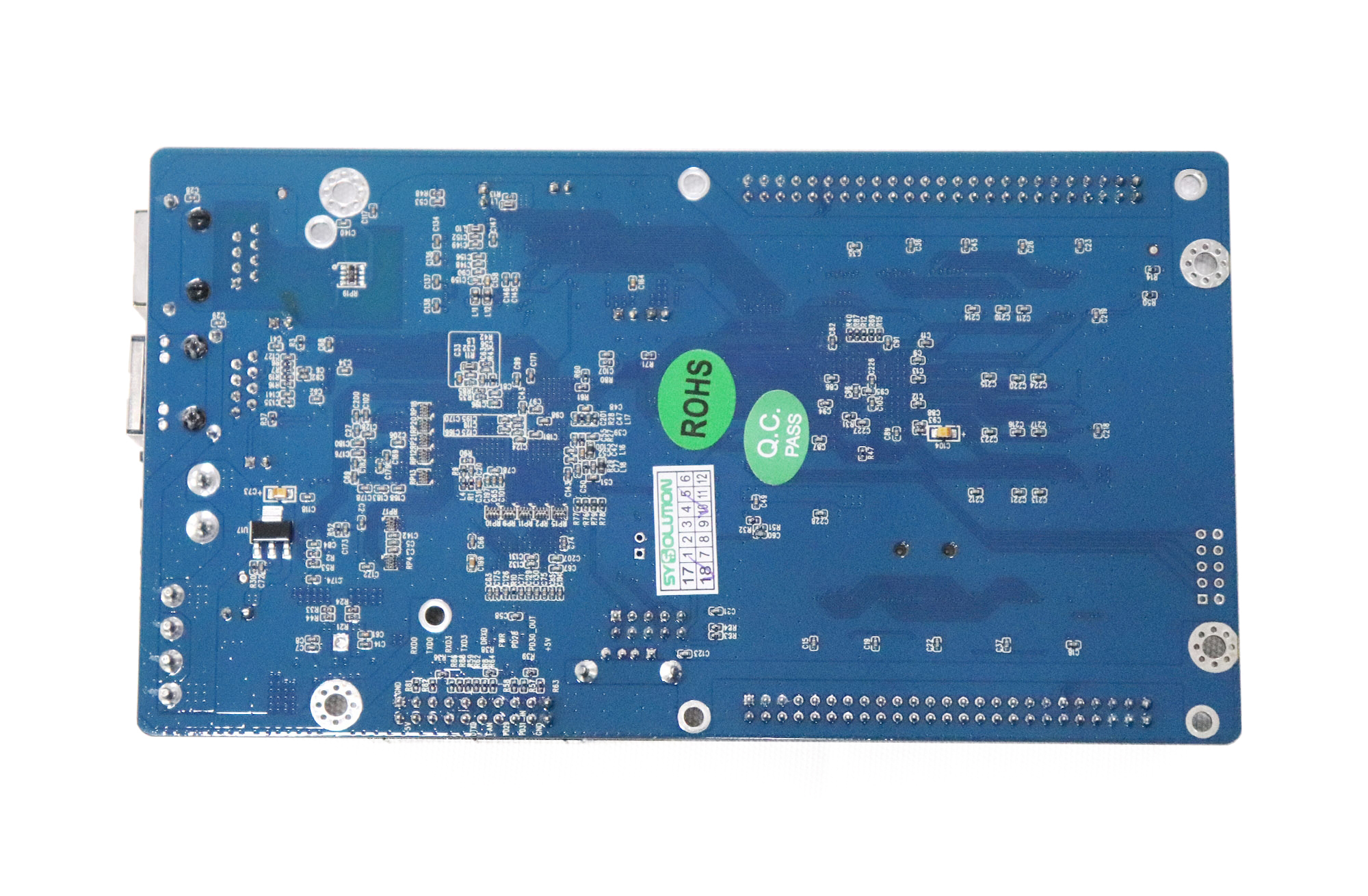

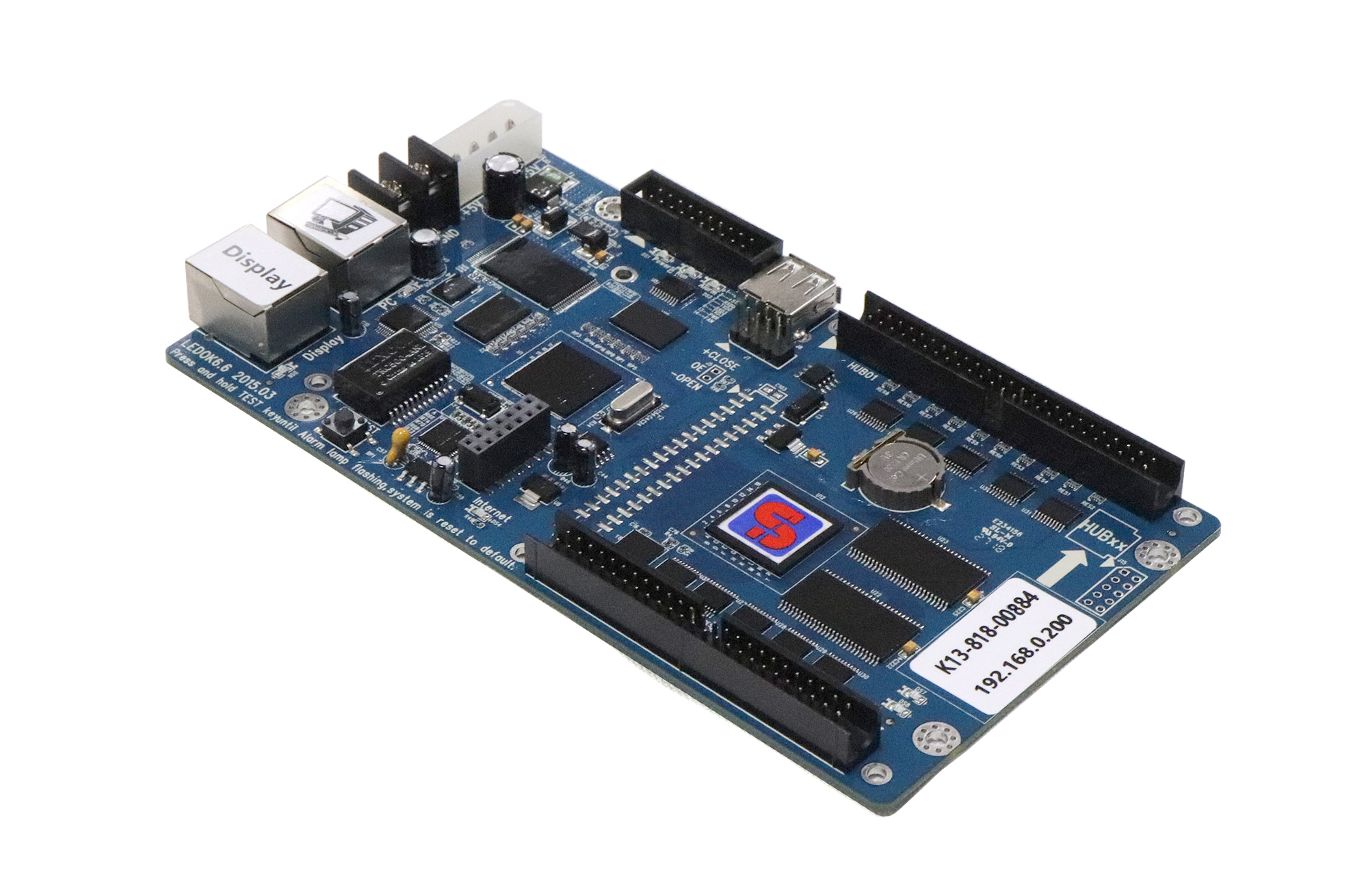

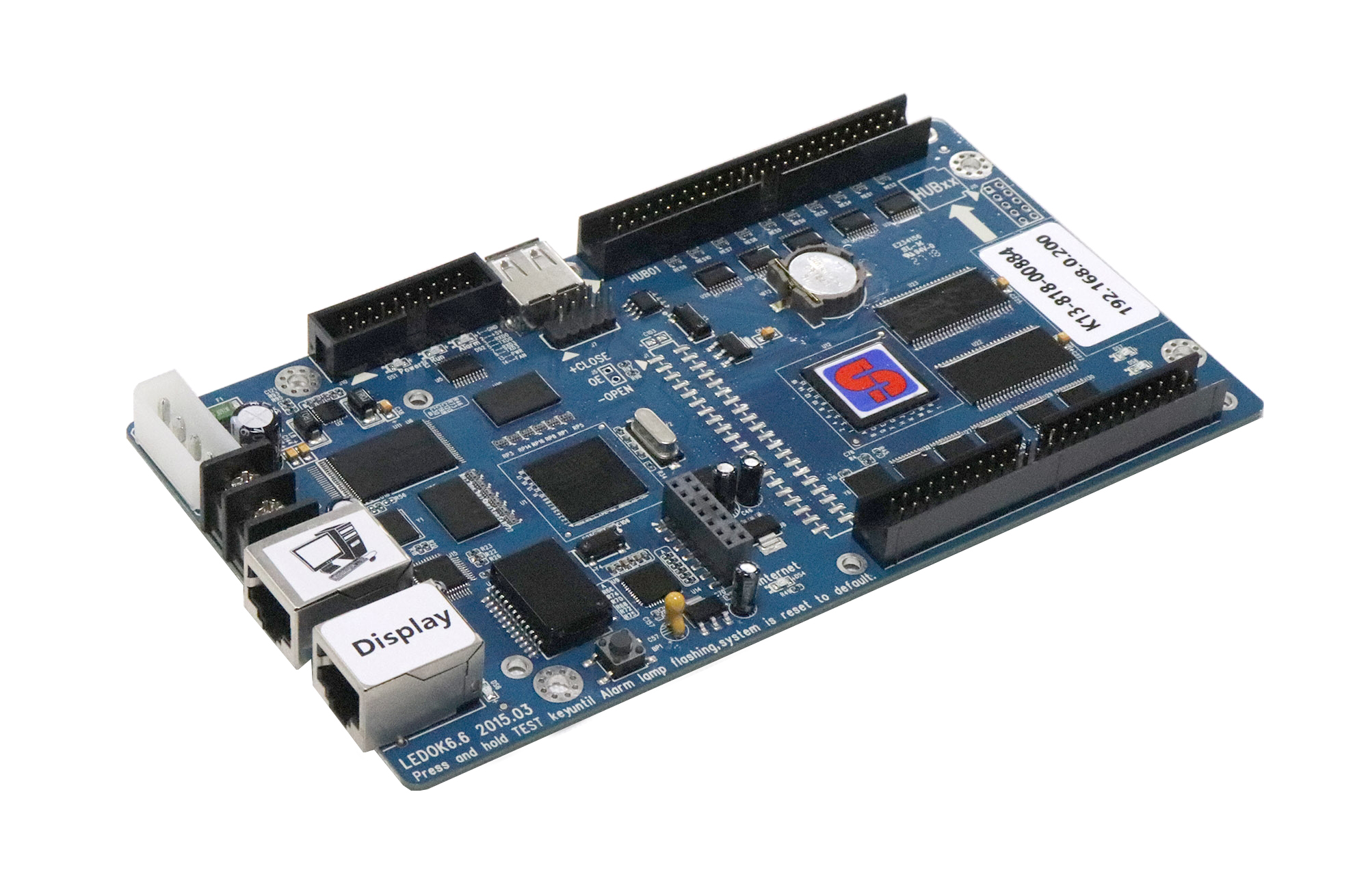

Parameters of XIXUN K13 Asynchronous Cascading LED Controller Card:

Type	cascading card
mode	k13（sending card）
Maximum pixels	2400×128
Hub	Standard hub, one sending card connects one hub, receiving card connects one hub
Display type	Full color
Onboard Flash	500MB
Gray level	4096
LED module type	Support random scan type within 1/16 scan
Communication ports	Ethernet/serial port/USB ports
Audio	USB sound card optional
Special Driver IC	Support MBI5041
Schedule on time	Support
Video formats	AVI,WMV,MPG,MOV,DAT, VOB,MP4,FLV and so on
Animation formats	Support GIF,SWF and so on
Image formats	Support bmp,jpg,gif,wmf,ico and so on
Text formats	Support txt，rtf
Text type	Single line, static text and multi-line text
Table	Support to editing table
Date and Time	Support Analog clock and Digital clock
Timing	Support countdown and Timing
Sensor	Support temperature, humidity, auto-adjust brightness, Infrared remote to change programs
Storage port	Support to expanding storage via USB
Software	LEDEditor_V10/LEDSet2.0
Stock	In stock
